ROEMHELD SCS80 5-Axis Manual Vises (80mm)

ROEMHELD Precision Vises

Save to My Project

What is this?

Product Information

ROEMHELD SCS80 5-Axis Manual Vises (80mm) Part # CLRH-9-3672-0101-VS Carr Lane Mfg.®

Fixed Jaw

Mechanical Operation

SCS-series vises are slightly wider than MCP-series vises, with a specially designed guideway between the base and moving jaw that allows the use of very tall clamping jaws with high holding force. Like all of our 5-axis vises, these vises have optimal features to allow unrestricted tool access for multiple-side machining. The standard fixed-jaw design has one fixed jaw, and one moving jaw that clamps against it. The base is made from special cast steel which guarantees high rigidity and dimensional stability. All sides are hardened and ground, providing a basis for maximum precision. Made in Germany.

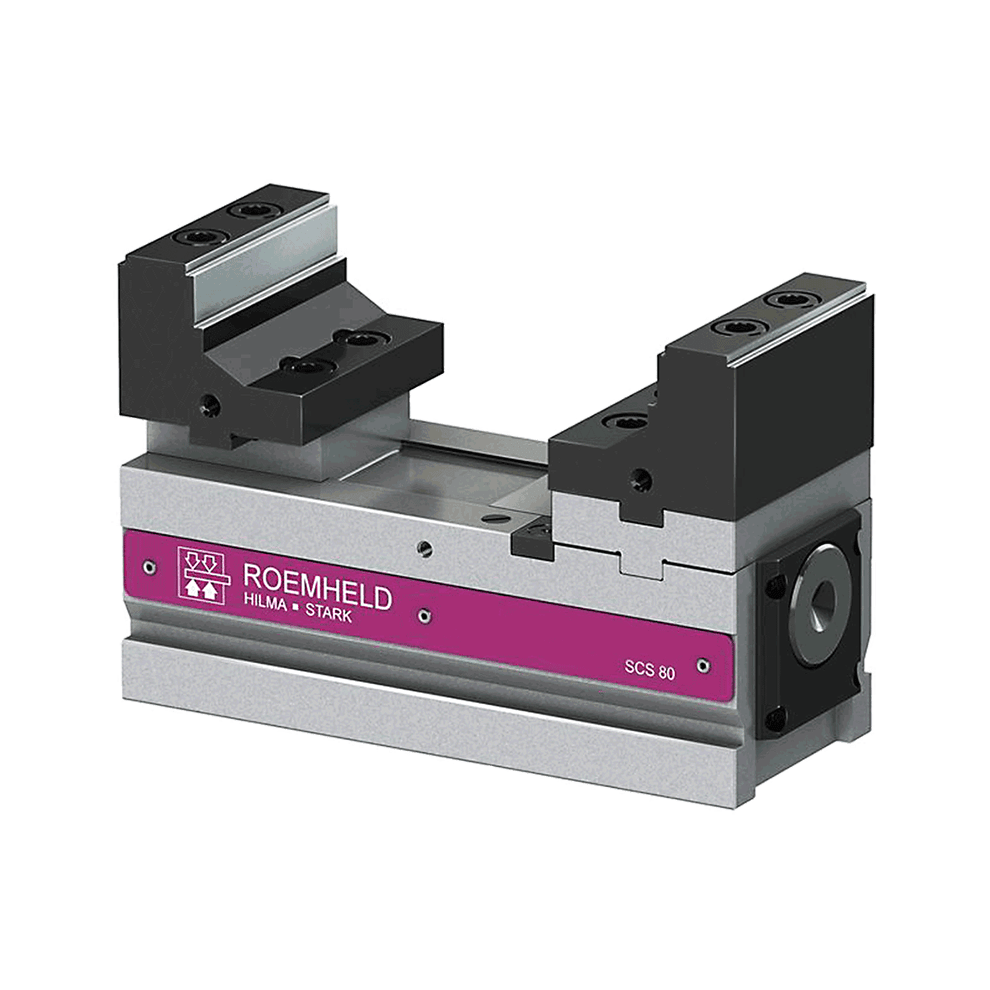

The SCS80 size shown here is 80mm wide x 200mm long, with 5600 lbs maximum clamping force.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Documents

WS5.4600

SCS series 5-Axis Manual Vises

ROEMHELD SCS80 5-Axis Manual Vises (80mm)

QUANTITY	PART NO.	JAW WIDTH (mm)	MAXIMUM CLAMPING FORCE (lbs)	MAXIMUM CLAMPING FORCE (kN)	MAXIMUM CLAMPING TORQUE REQUIRED (ft-lbs)	STEP-JAW WIDTHS (mm)	CLAMPING RANGE (mm)	SPINDLE SOCKET SIZE (mm)	WEIGHT WITHOUT JAWS (lbs)
	CLRH-9-3672-0101-VS	80	5600	25	44	25 / 50 / 80	5 to 150	12	20

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Products Related to ROEMHELD SCS80 5-Axis Manual Vises (80mm)

ROEMHELD Jaws & Accessories for 5-Axis Vises (SCS Series)
