ROEMHELD QIS Soft Blank Jaw Inserts

ROEMHELD Precision Vises

Product Information

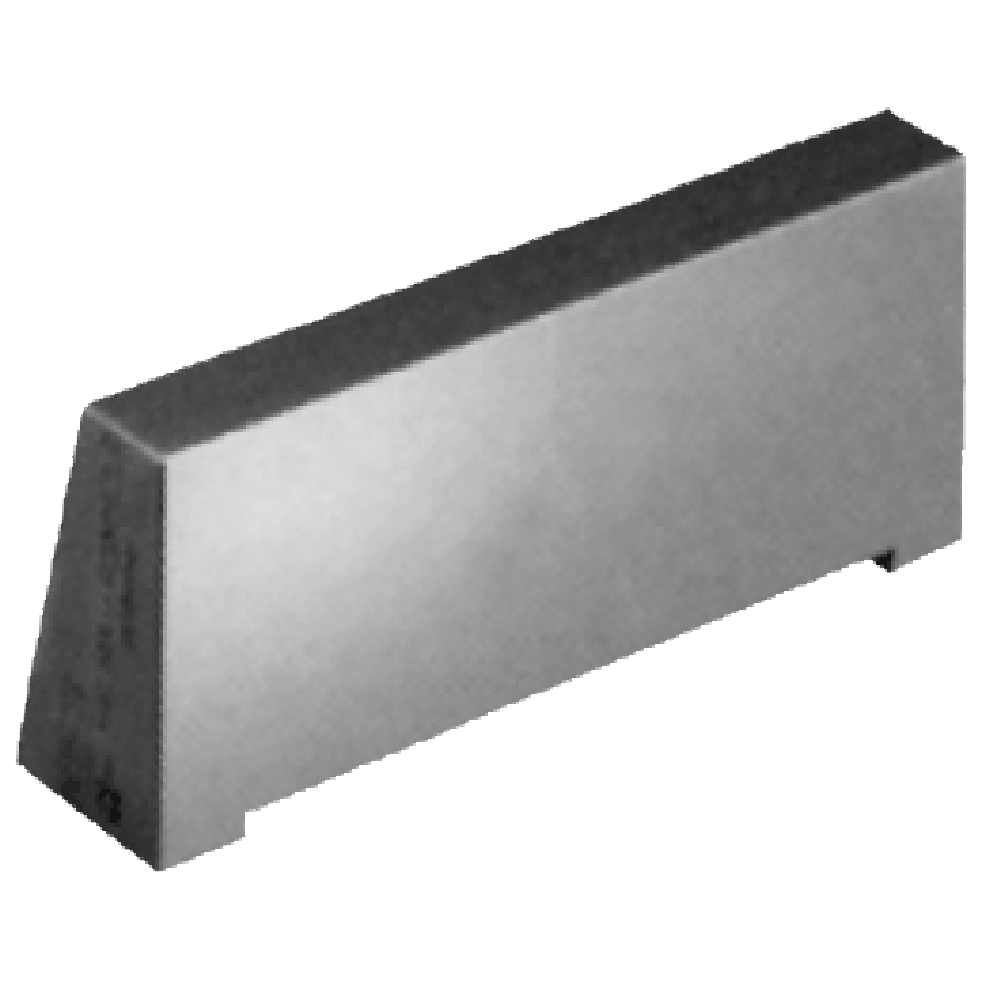

Soft Blank Jaw Inserts are used together with base jaws as part of our Quick Insert System (QIS). Similar to Plain Jaw Inserts, except furnished as soft, oversize blanks for machining a custom vise-jaw fixture. Use Soft Blank Jaw Inserts either in pairs, or with another QIS jaw insert.

QIS is our patented system of downthrust vise jaws, consisting of several different quick-change jaw inserts that mount on a single base jaw. Jaw inserts are held in place by a guide pin and two permanent magnets (Soft Blank Jaw Inserts have a bottom groove instead of a guide pin for precise sideways location on the vise guideways). Jaw inserts can be changed in a few seconds. The base jaw and jaw inserts have a matching angle between them to provide downthrust action. This downthrust effect ensures that the workpiece is held firmly down against the vise to a precise zero point, providing extremely accurate height location.

Available in three jaw widths, to fit the following vise sizes:

100mm

125mm

160mm

Documents

QIS NC Vise Jaws

Data Sheet

Mounting

Base jaws are firmly fastened to the vise using two socket-head cap screws. To install jaw inserts, slide insert toward the base jaw with the bottom groove engaging the vise guideways, until the insert is held by the permanent magnets. To remove, pull the jaw insert upward until the guide pin reaches the top of the slot, then tilt the insert forward to overcome the retention force of the permanent magnets.

Material

1045 steel, unhardened.

Click here for detailed material and finish specifications.
