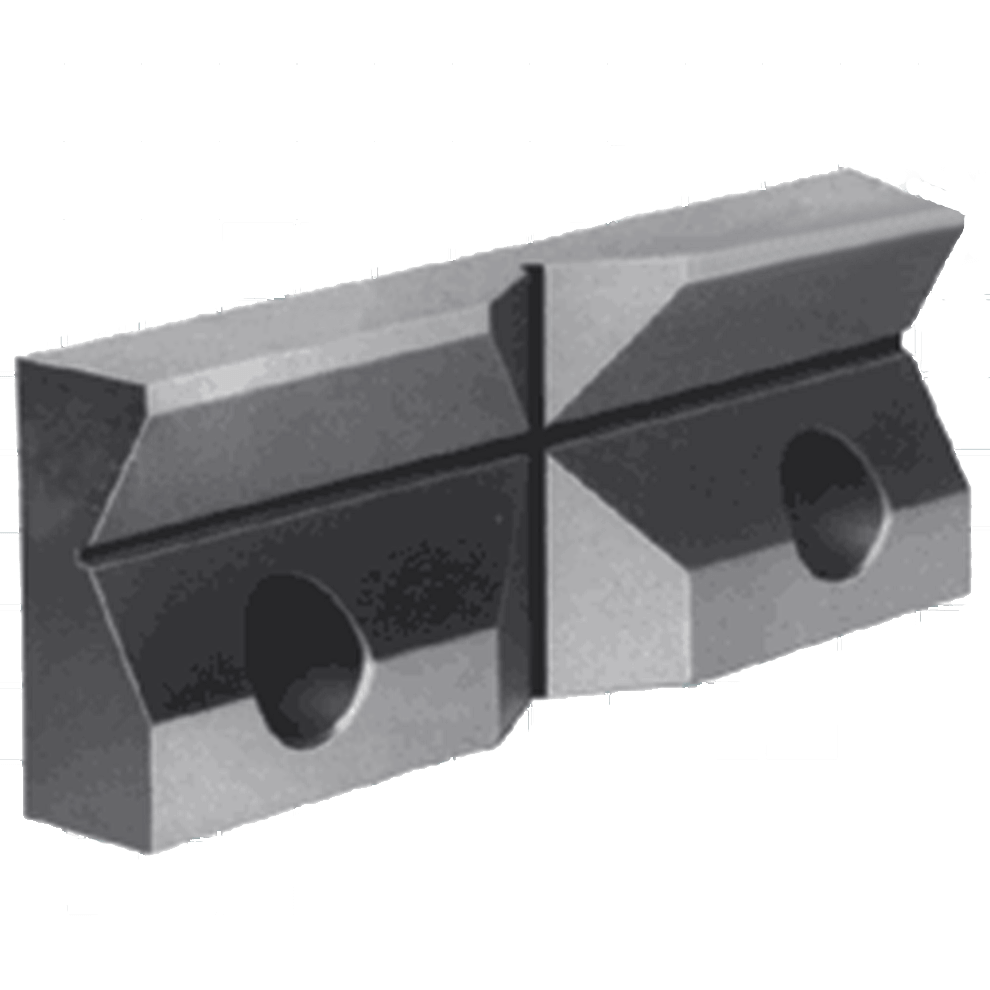

ROEMHELD V Jaws Part # CLRH-5-3030-0002-VSA Carr Lane Mfg.®

Precision jaw with two 120° V grooves, to allow clamping cylindrical workpieces in either horizontal or vertical position. V Jaws are usually mounted on the fixed-jaw side (for positional accuracy), together with a standard Flat Jaw on the sliding-jaw side. V Jaws can also be used in pairs. Available in three jaw widths, to fit the following vise sizes:

100mm

125mm

160mm

View in Catalog Page
Contact Customer Service
Contact Customer Service

Documents

Standard NC Vise Jaws

Data Sheet

Mounting

Fasten to the vise with two Socket-Head Cap Screws (furnished with vise).

Material

Steel, hardened and ground.

Click here for detailed material and finish specifications.

ROEMHELD V Jaws

PART NO. (SINGLE JAW)	A JAW WIDTH (mm)	B OVERALL JAW HEIGHT (mm)	C JAW THICKNESS (mm)	D DIAMETER RANGE (mm)	HEIGHT OF HORIZONTAL V CENTERLINE (mm)	MAXIMUM WIDTH OF EACH V (mm)
CLRH-5-3030-0002-VSA	100	34	17	8 - 35	19	23.5
CLRH-5-3030-0003-VSA	125	45	19	10 - 50	27	29.5
CLRH-5-3030-0004-VSA	160	54	21	12 - 57	32	37

Check Price & Availability
