ROEMHELD Swivel Jaws

ROEMHELD Precision Vises

Save to My Project

What is this?

Product Information

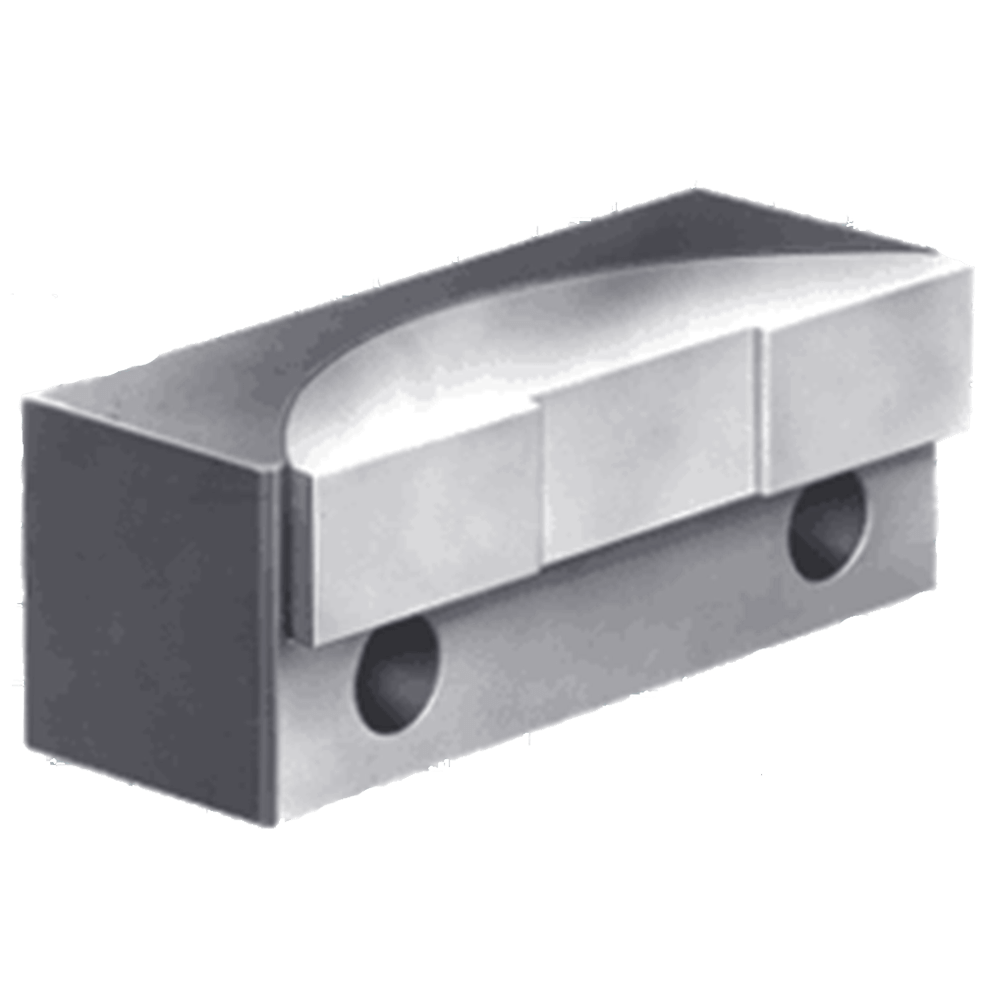

ROEMHELD Swivel Jaws Part # CLRH-3711-03-VSA Carr Lane Mfg.®

Precision jaw with a swiveling face for securely clamping a workpiece that has nonparallel sides. Also useful for securely clamping two side-by-side workpieces with different tolerances. Contact face swivels up to 5° in both directions. Swivel Jaws are usually mounted on the sliding-jaw side, together with a standard Flat Jaw on the fixed-jaw side (for positional accuracy). Available in three jaw widths, to fit the following vise sizes:

100mm

125mm

160mm

View in Catalog Page
Contact Customer Service
Contact Customer Service

Documents

Standard NC Vise Jaws

Data Sheet

Mounting

Fasten to the vise with two Socket-Head Cap Screws (furnished with vise).

Material

Steel, hardened and ground.

Click here for detailed material and finish specifications.

ROEMHELD Swivel Jaws

PART NO. (SINGLE JAW)	A JAW WIDTH	C OVERALL JAW THICKNESS (mm)	THICKNESS OF STATIONARY JAW (mm)	B OVERALL JAW HEIGHT (mm)	HEIGHT TO BOTTOM OF SWIVEL (mm)	OVERALL WIDTH OF SWIVEL (mm)	DISTANCE BETWEEN CONTACT PADS (mm)
CLRH-3711-02-VSA	100	35	30	34	18	96	36
CLRH-3711-03-VSA	125	50	44	45	23	121	41
CLRH-3711-04-VSA	160	55	47	54	28	156	56
