ROEMHELD Step Jaws

ROEMHELD Precision Vises

Save to My Project

What is this?

Product Information

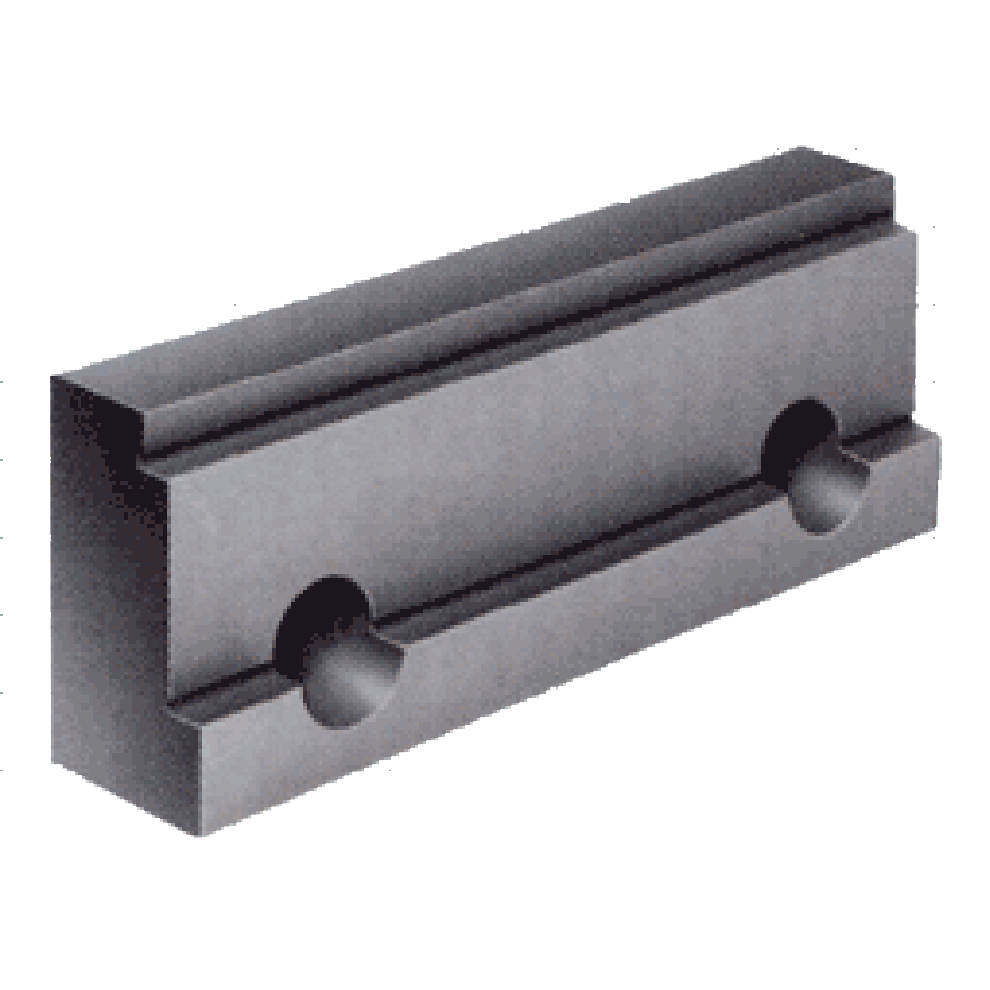

ROEMHELD Step Jaws Part # CLRH-5-2082-0002-VSA Carr Lane Mfg.®

These versatile jaws allow clamping rectangular workpieces up high in the vise without using parallel blocks. This allows raising short workpieces for easier access, and also provides tool clearance between the workpiece and the vise bed. Each Step Jaw has both a high and a low step. Steps are precision ground to maintain accurate vertical and horizontal location. Use Step Jaws only in pairs. Available in three jaw widths, to fit the following vise sizes:

100mm

125mm

160mm

View in Catalog Page
Contact Customer Service
Contact Customer Service

Documents

Standard NC Vise Jaws

Data Sheet

Mounting

Fasten to the vise with two Socket-Head Cap Screws (furnished with vise).

Material

Steel, hardened and ground.

Click here for detailed material and finish specifications.

ROEMHELD Step Jaws

PART NO. (SINGLE JAW)	A JAW WIDTH (mm)	B OVERALL JAW HEIGHT (mm)	C HEIGHT OF TOP STEP (mm)	D HEIGHT OF BOTTOM STEP (mm)	E THICKNESS AT BASE (mm)	F THICKNESS AT BOTTOM STEP (mm)	G THICKNESS AT TOP STEP (mm)
CLRH-5-2082-0001-VSA	100	35	29	10	19	15	11
CLRH-5-2082-0002-VSA	125	45	39	13	25	20	16
CLRH-5-2082-0003-VSA	160	54	45	15	25	20	16

Check Price & Availability
