ROEMHELD SlimFlex Step Jaws for 3-Side Machining

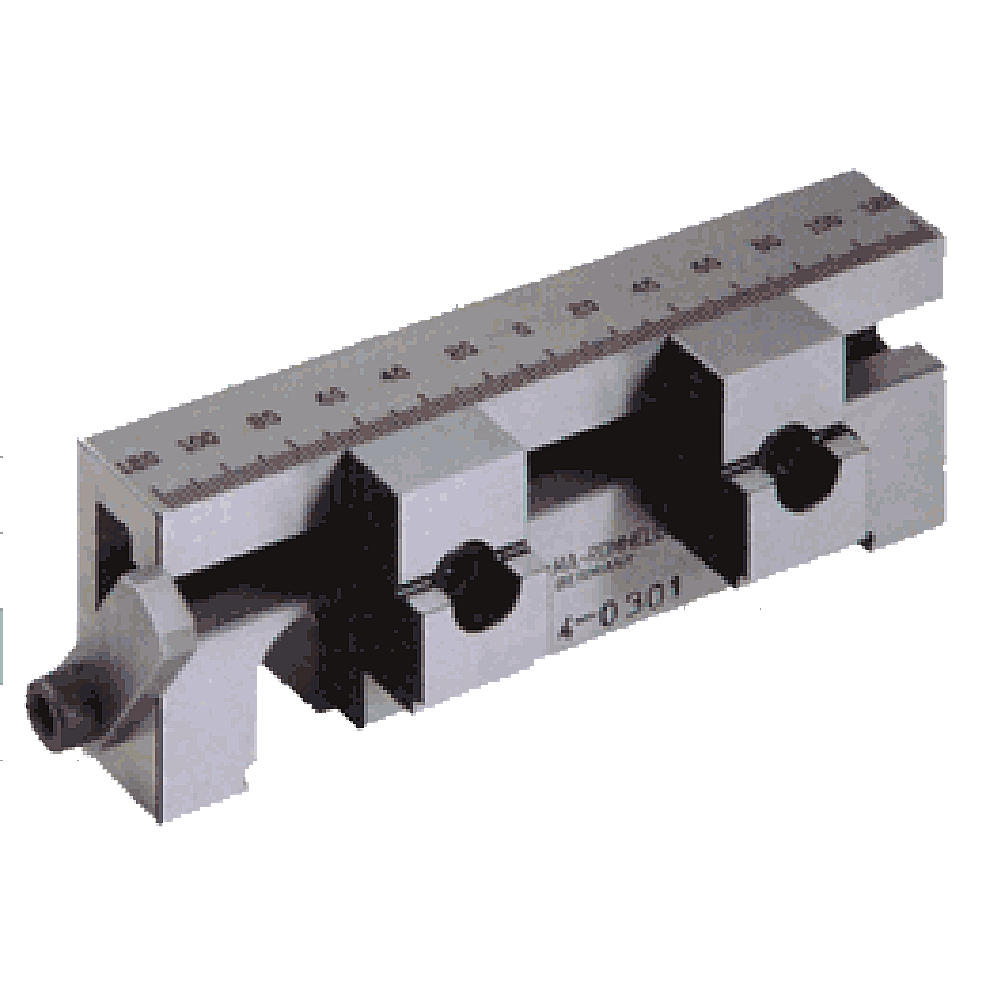

ROEMHELD Precision Vises

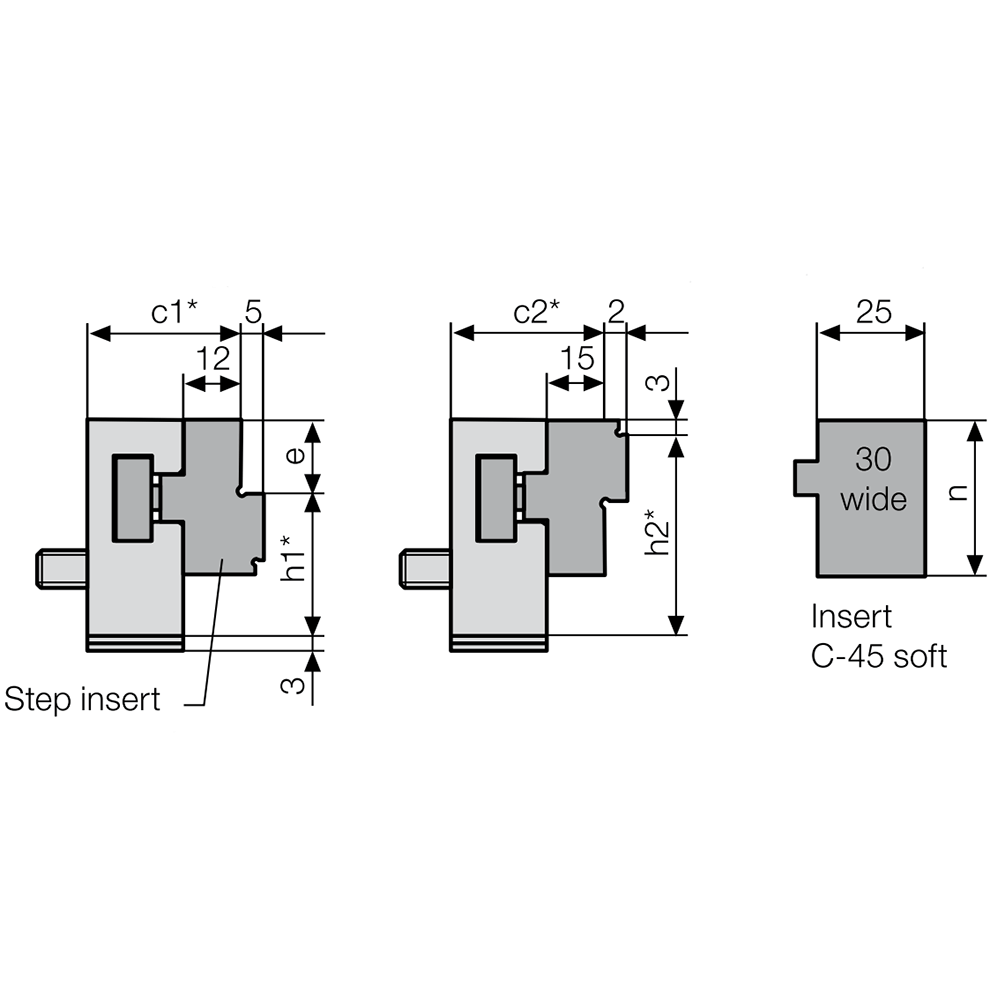

Complete Jaw Assembly with 2 Step Sliders
QUANTITY PART NO.
(SINGLE JAW)
A
JAW
WIDTH
(mm)
B
(mm)
C1
(mm)
C2
(mm)
E
(mm)
H1
(mm)
H2
(mm)
L
(mm)
M
(mm)
CLRH-3714-0212-VSA 100 34 30 33 10 24 31 78 11
CLRH-3714-0312-VSA 125 45 32 35 15 30 42 98 16
CLRH-3714-0412-VSA 160 54 34 37 15 39 51 125 16

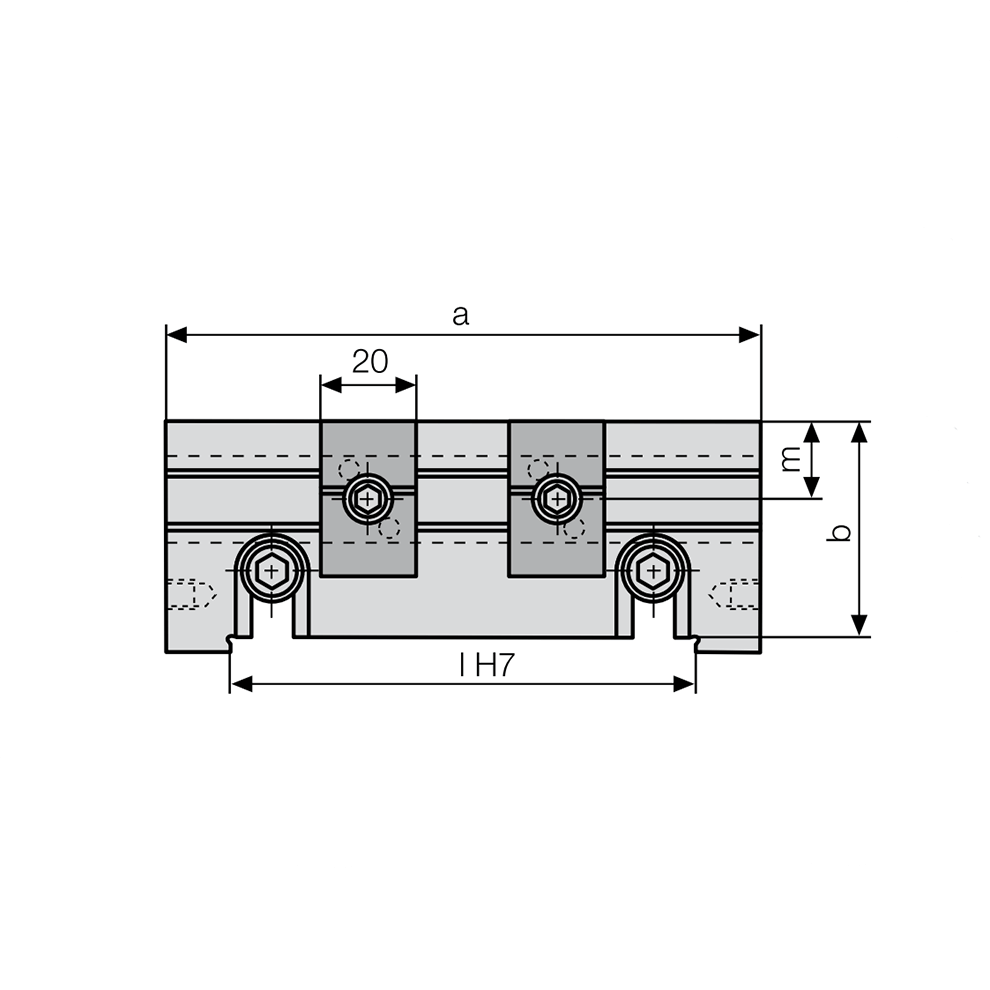

Jaw without Sliders
QUANTITY PART NO.
(SINGLE JAW)
A
JAW
WIDTH
(mm)
B
(mm)
E
(mm)
L
(mm)
M
(mm)
CLRH-3714-0202-VSA 100 34 10 78 11
CLRH-3714-0302-VSA 125 45 15 98 16
CLRH-3714-0402-VSA 160 54 15 125 16
Optional Blank Slider
(2 Required per Jaw)
QUANTITY PART NO.
(SINGLE SLIDER)
FITS
JAW
WIDTH
(mm)
N
(mm)
CLRH-5050-0123-VSA 100 30
CLRH-5050-0099-VSA 125 40
CLRH-5050-0099-VSA 160 40
