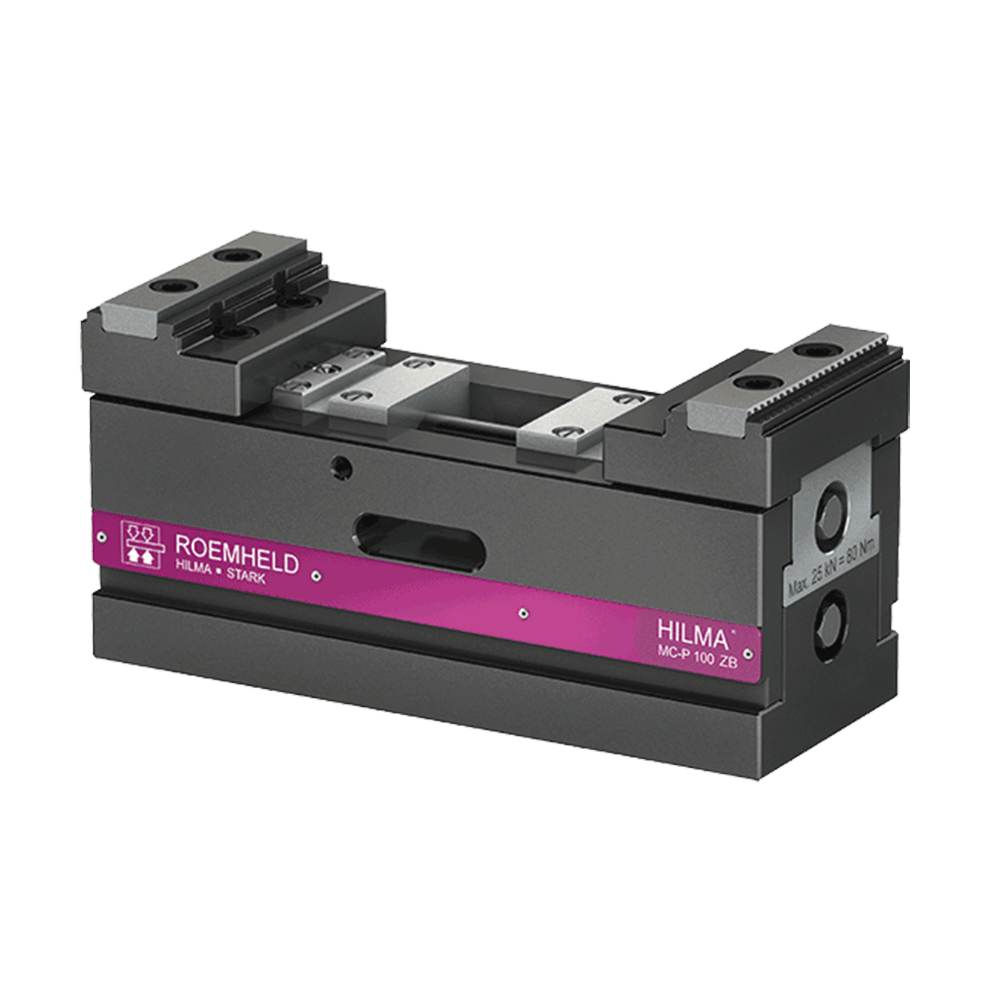

ROEMHELD MCP/ZB-Series 5-Axis Position-Flexible Manual Vises

ROEMHELD Precision Vises

Save to My Project

What is this?

Product Information

Position-Flexible Clamping

Mechanical Operation

ZB-series MCP vises are concentric position-flexible vises with two moving jaws that provide a floating clamping point that adjusts to the workpiece before locking, to prevent deformation. When turning the clamping spindle, the two clamping slides first concentrically approach the workpiece. After the first clamping jaw reaches the workpiece, only the second clamping jaw moves until both jaws are in contact with the workpiece. Only then is clamping force applied to the workpiece and clamping position fixed. Available in the the two sizes shown below, with the following jaw widths:

60mm

100mm

The MCP series is a further refinement of our high-precision MC vise series. These new vises combine a very compact, fully enclosed design with a patented sliding-jaw segment design. Thanks to the adjusting spindle arranged in the upper part of the housing, deformation in the base during clamping is reduced to a minimum, providing high rigidity of the entire workholding system. The patented segment design ensures a high degree of precision and stability, reducing guiding clearance to nearly zero.

Contact Customer Service
Contact Customer Service

Browse our Selection of ROEMHELD MCP/ZB-Series 5-Axis Position-Flexible Manual Vises

ROEMHELD MCP60ZB 5-Axis Position-Flexible Vises (60mm)

ROEMHELD MCP100ZB 5-Axis Position-Flexible Vises (100mm)
