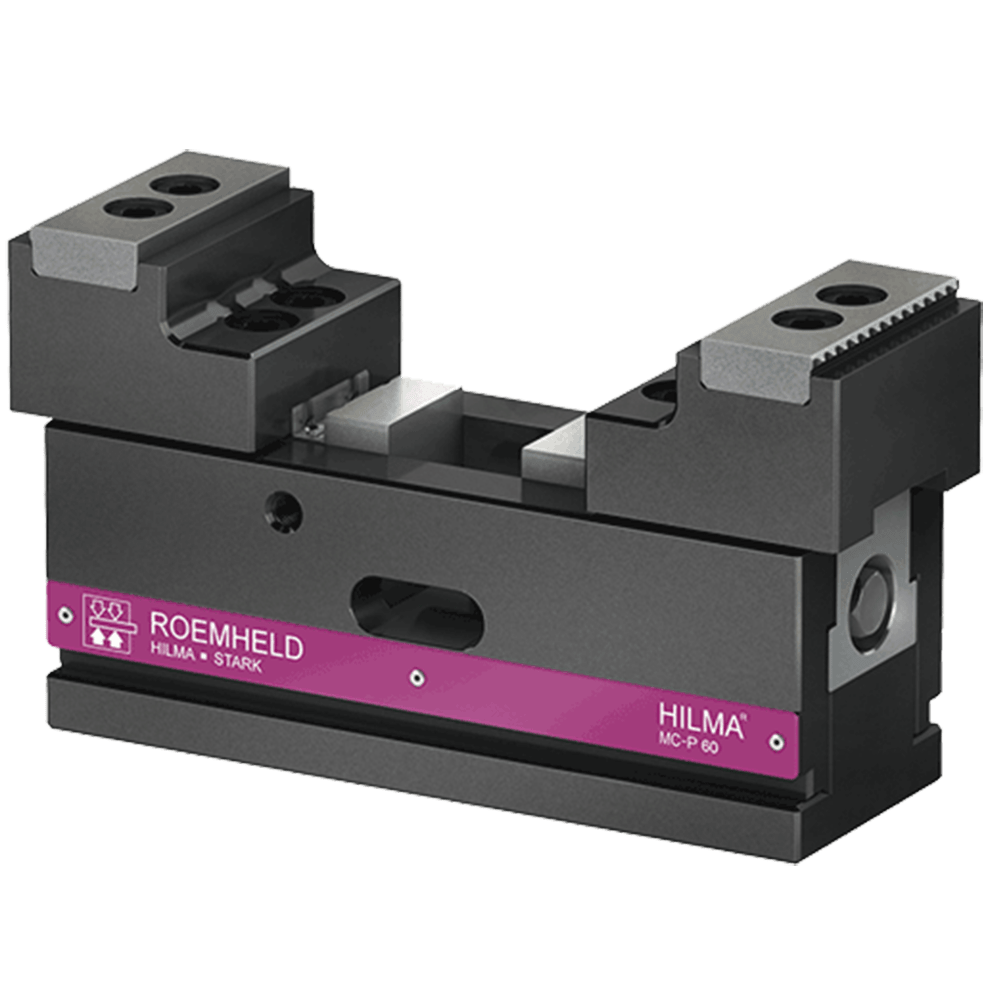

ROEMHELD MCP125 5-Axis Manual Vises (125mm) Part # CLRH-9-4586-0101 Carr Lane Mfg.®

Fixed Jaw

Mechanical Operation

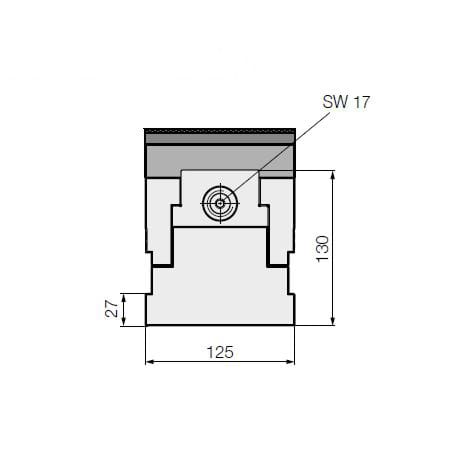

The MC125Z vise is ideal for large workpieces. Like all of our 5-axis vises, this vise has optimal features to allow unrestricted tool access for multiple-side machining. The standard fixed-jaw design has one fixed jaw, and one moving jaw that clamps against it. 125mm wide x 283mm long, with 7900 lbs maximum clamping force. Made in Germany.

The MCP series is a further refinement of our high-precision MC vise series. These new vises combine a very compact, fully enclosed design with a patented sliding-jaw segment design. Thanks to the adjusting spindle arranged in the upper part of the housing, deformation in the base during clamping is reduced to a minimum, providing high rigidity of the entire workholding system. The patented segment design ensures a high degree of precision and stability, reducing guiding clearance to nearly zero.

Application Information

Unique design allows clear tool access to five-out-of-six workpiece sides.

Documents

WS5.4501

Data Sheet

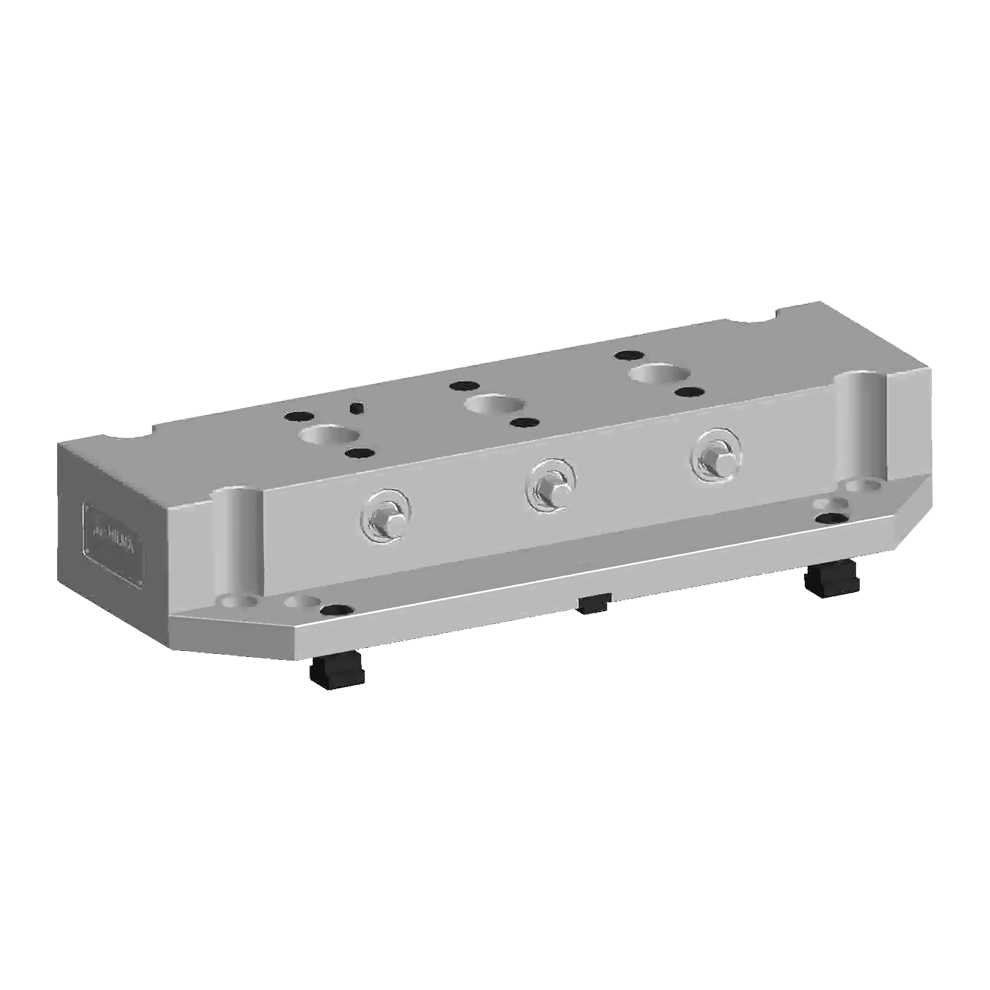

Mounting on a Quintus 3 Riser

Diagram showcasing the application of Roemheld Mcp125 5 Axis Manual Vises

Before using the vise, install the three Quintus 3 pull-down bolts in the vise's M10 counterbored bottom locating holes (order separately below). To locate and clamp the vise, the Quintus 3 riser utilizes these three pull-down bolts – #1 with zero-point centering, #2 with single-axis centering, and #3 without centering. First, turn Quintus mechanism #1, then turn Quintus mechanism #2, then turn Quintus mechanism #3. Each exerts 4500 lbs of force on its pull-down bolt.

Mounting on a Subplate

To locate the vise, use two Fixture Locating Pins, a round pin for zero-point centering and a diamond pin for single-axis centering. To fasten the vise, use eight M12 x 35mm socket-head cap screws inserted through the plate from below. All required components are available as accessories.
