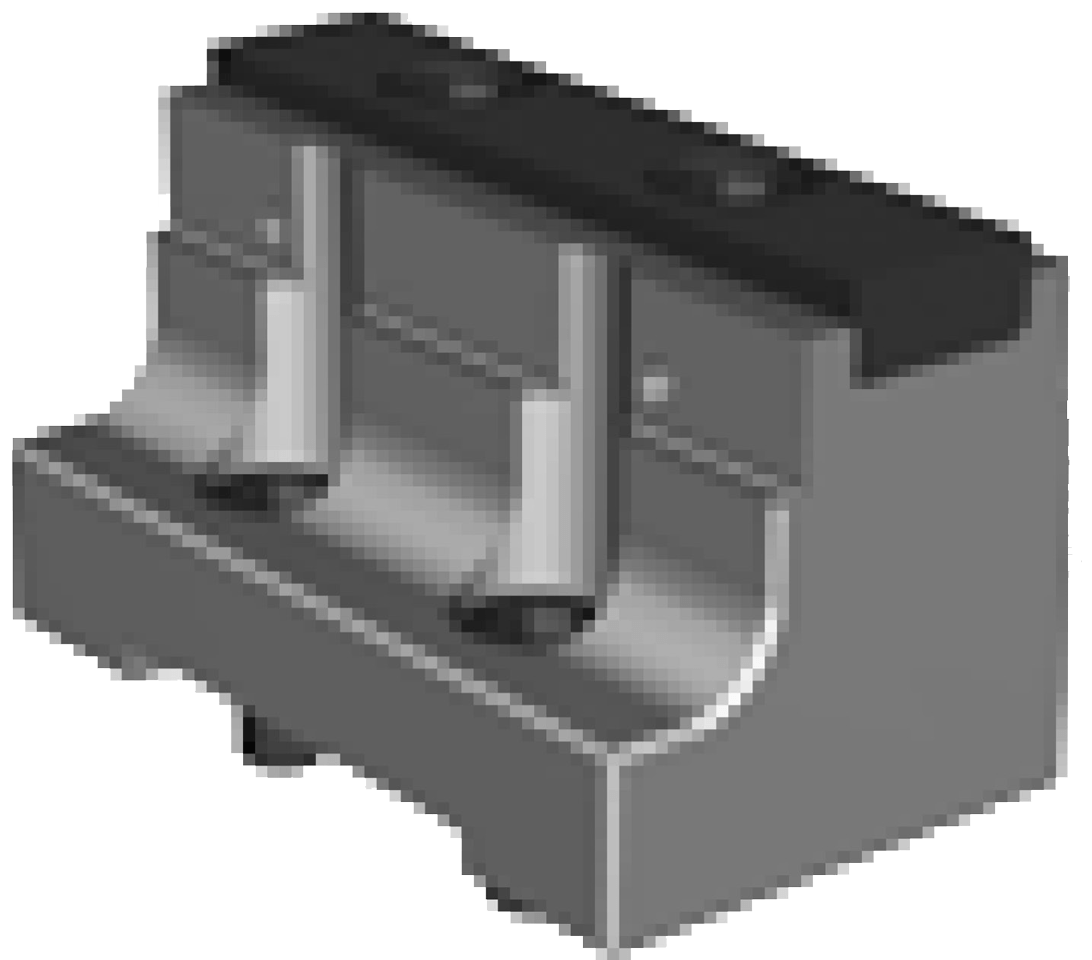

ROEMHELD Step Jaws with Jaw Insert, WS5.358Z

ROEMHELD Precision Vises

Save to My Project

What is this?

Product Information

ROEMHELD Step Jaws with Jaw Insert, WS5.358Z Part # CLRH-9-3585-6906-VSA Carr Lane Mfg.®

This product is not sold with the required jaw insert, please pair below.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Documents

WS5.358Z

Data Sheet

ROEMHELD Step Jaws with Jaw Insert, WS5.358Z

PART NO.	FITS VISE SERIES	A (mm)	B (mm)	C (mm)	E (mm)	F (mm)	H (mm)	I (mm)	J (mm)	L (mm)	S CLAMPING RANGE (mm)	S1 CLAMPING RANGE (mm)
CLRH-9-3583-6906-VSA	MC60, MCP60	30	60	---	4.5	6	34	2.5	4	56	12 - 126	---
CLRH-9-3585-6906-VSA	MC100, MCP100	50	100	35	4.5	6	54	2.5	4	56	12 - 204	44 - 192
CLRH-9-3586-6906-VSA	MC125, MCP125	62	125	42	4.5	6	66	2.5	4	88	12 - 400	96 - 388

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Required Jaw Insert

PART NO.	FITS VISE SERIES	JAW WIDTH (mm)
CLRH-5-5050-0543-VSA	MC60, MCP60	60
CLRH-5-5050-0542-VSA	MC100, MCP100	100
CLRH-5-5050-0509-VSA	MC125, MCP125	125
