CARVESMART™ 6" TalonTop (125mm, 5", 6")

ROEMHELD Precision Vises

Save to My Project

What is this?

Product Information

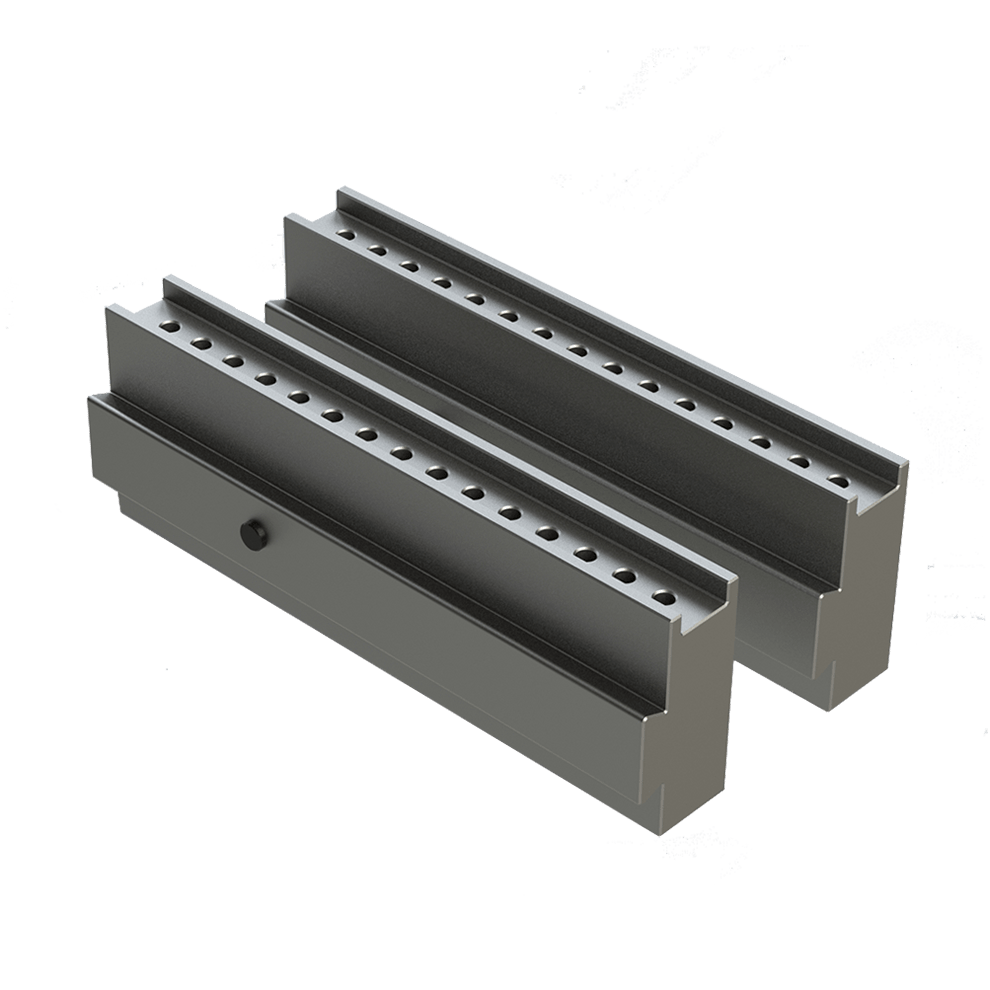

CARVESMART™ 6"" TalonTop (125mm, 5"", 6"") Part # CLR-60006 Carr Lane Mfg.®

CARVESMART is a complete system of dovetailed vise jaws for production and toolroom vises, allowing custom jaws to be accurately changed in seconds. CARVESMART TalonTop Jaws are designed to use MiteeBite TalonGrip inserts for edge gripping on just .060” of material.

The TalonTop Jaws shown here fit 125mm, 5”, and 6" vises. These ready-to-use jaws incorporate a SMARTstop™ pin that provides +/-.0003" side-to-side location relative to a slot in the master jaw. The large dovetail provides secure jaw retention. MiteeBite #32050 TalonGrip clamps and #32020 stops are not included. Patent no. 8,540,225. Made in USA.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Application Information

SMARTstop™ Location

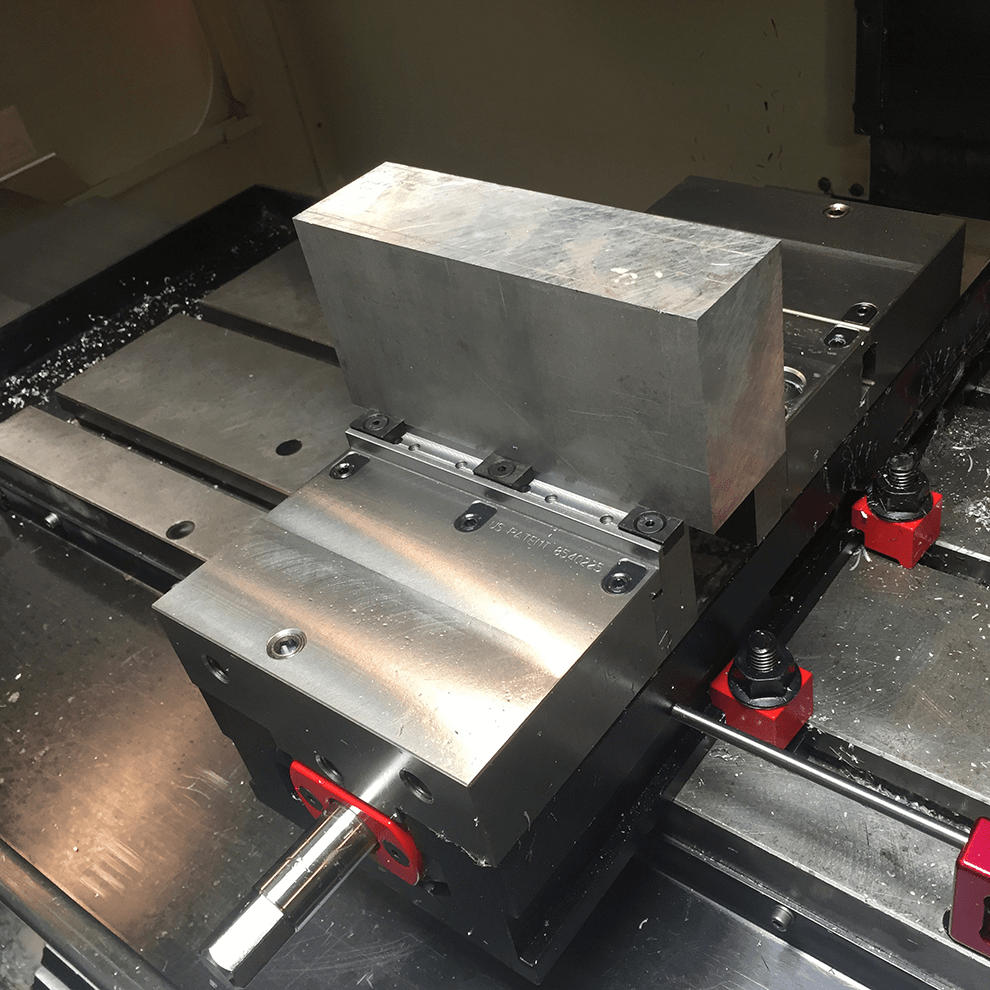

Diagram showcasing the application of Carvesmart 6 Talontop 125Mm 5 6

These blank jaws incorporate SMARTstop™, a slot-and-pin system that provides +/-.0003" side-to-side location of custom jaws when jobs repeat. A precise vertical slot in the Master Jaw mates with a dowel pin in the custom jaw.

Material

1018 Steel

Click here for detailed material and finish specifications.

CARVESMART™ 6" TalonTop (125mm, 5", 6")

QUANTITY	PART NO.	NUMBER OF JAWS INCLUDED	DESCRIPTION
	CLR-60006	2	(2) TalonTop Jaws, 1018 Steel, with SMARTstop, 3/4" x 2" x 6" (Clamps not included)
