Product Catalog
ROEMHELD Precision Vises Category
CARVESMART™ Dovetailed Quick-Change Vise Jaw System Line
3/4" x 2" Steel Jaws Type
CARVESMART™ 3/4" x 2" x 6" Steel Jaws (125mm, 5", 6") Model

Product Catalog

Catalog Tools

Material

Steel

Products

Exclusive Products New Products Quick Ship Products

Remove All Filters

Language

Convert Units of Measure =

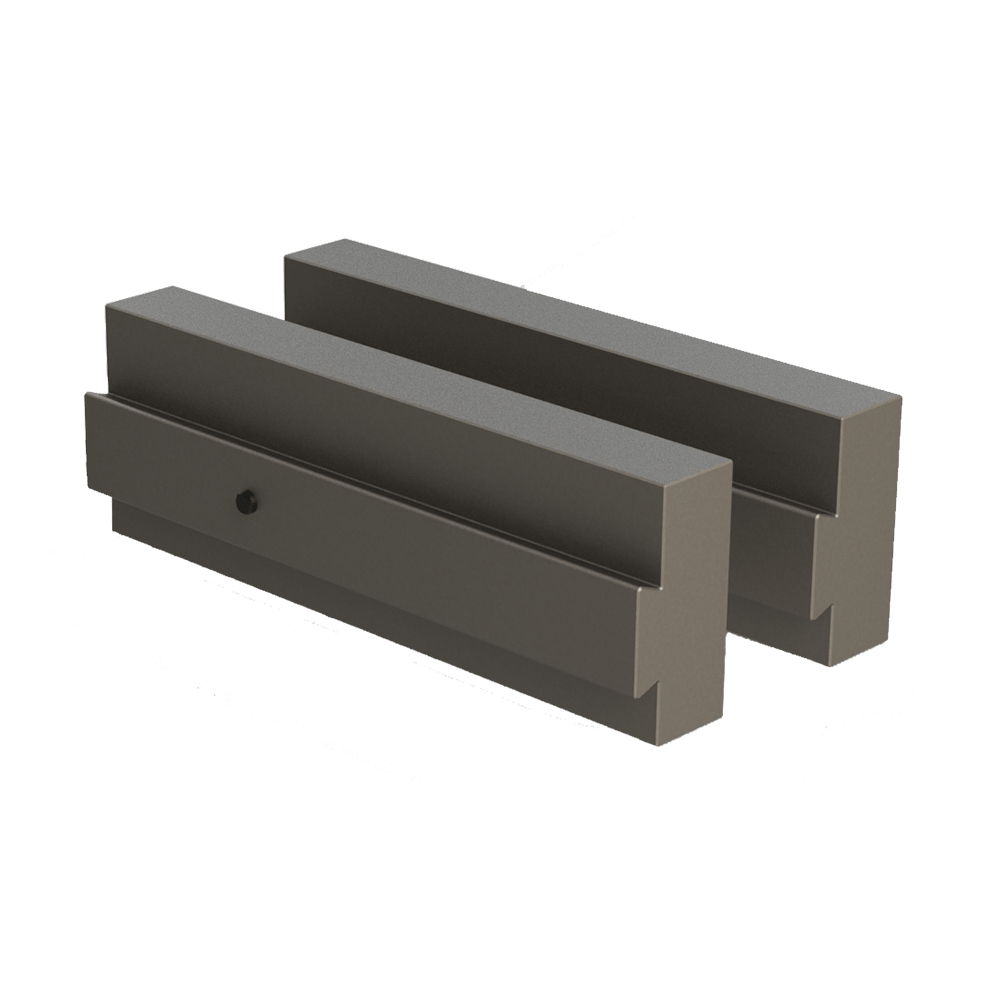

CARVESMART™ 3/4" x 2" x 6" Steel Jaws (125mm, 5", 6")

ROEMHELD Precision Vises

Save to My Project

What is this?

Product Information

3/4" x 2" x 6" Steel

CARVESMART is a complete system of dovetailed vise jaws for production and toolroom vises, allowing custom jaws to be accurately changed in seconds. The machinable blank steel jaws shown here fit 125mm, 5", and 6" vises. These ready-to-use blank jaws incorporate a SMARTstop™ pin that provides +/-.0003" side-to-side location relative to a slot in the master jaw. The large dovetail provides secure custom-jaw retention. Patent no. 8,540,225. Made in USA.

View in Catalog Page
Contact Customer Service
Contact Customer Service

SMARTstop™ Location

Diagram showcasing the application of Carvesmart 34 X 2 X 6 Steel Jaws 125Mm 5 6

These blank jaws incorporate SMARTstop™, a slot-and-pin system that provides +/-.0003" side-to-side location of custom jaws when jobs repeat. A precise vertical slot in the Master Jaw mates with a dowel pin in the custom jaw.

Material

MATERIAL	HEAT TREAT	FINISH
1018 Steel	-	-

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

CARVESMART™ 3/4" x 2" x 6" Steel Jaws (125mm, 5", 6")

QUANTITY	PART NO.	NUMBER OF JAWS INCLUDED	DESCRIPTION
	CLR-31106	2	(2) Soft Jaws, 1018 Steel, with SMARTstop, 3/4" x 2" x 6"
	CLR-31116	10	(10) Soft Jaws, 1018 Steel, with SMARTstop, 3/4" x 2" x 6"
