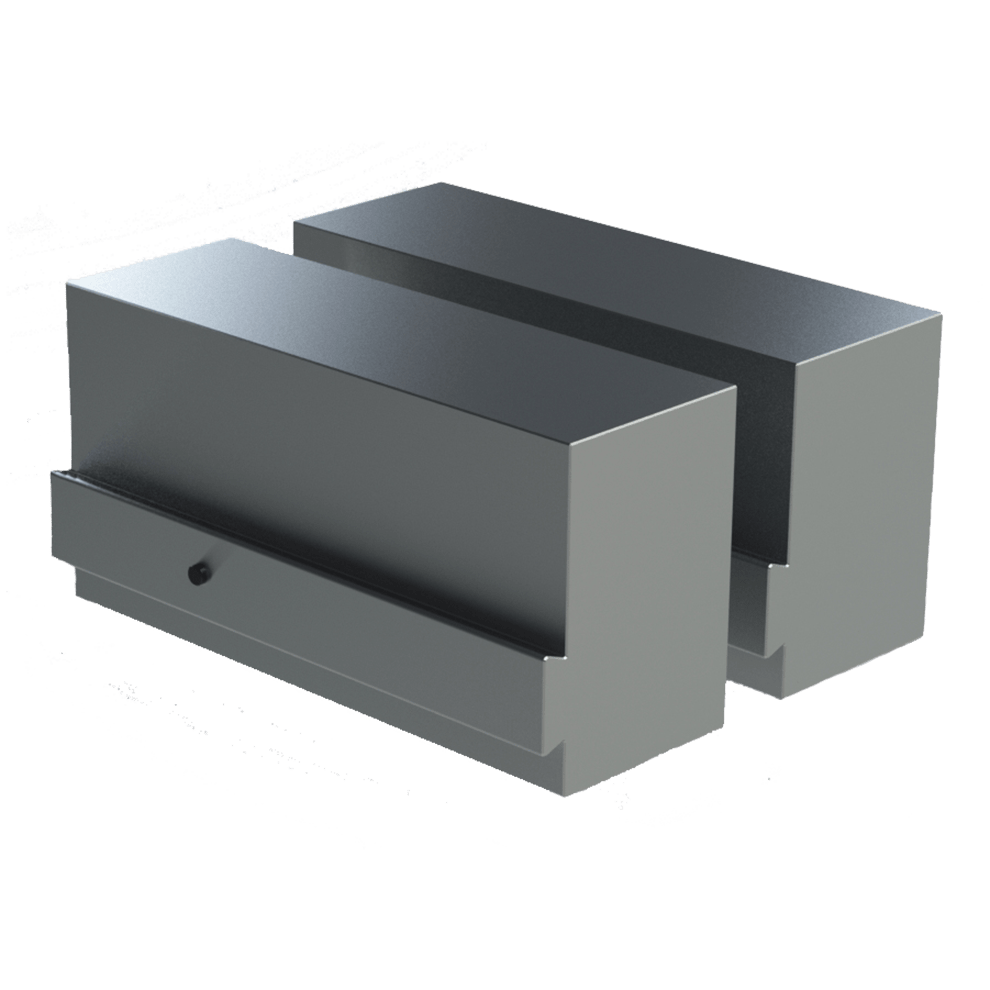

CARVESMART™ 2" x 3" x 160mm Aluminum Jaws (125mm, 5", 6", 160mm)

ROEMHELD Precision Vises

Save to My Project

What is this?

Product Information

2" x 3" x 160mm Aluminum

CARVESMART is a complete system of dovetailed vise jaws for production and toolroom vises, allowing custom jaws to be accurately changed in seconds. The machinable blank aluminum jaws shown here fit 160mm vises, but can also be used as extra-wide jaws on 125mm, 5" and 6" vises. These ready-to-use blank jaws incorporate a SMARTstop™ pin that provides +/-.0003" side-to-side location relative to a slot in the master jaw. The large dovetail provides secure custom-jaw retention. Patent no. 8,540,225. Made in USA.

View in Catalog Page
Contact Customer Service
Contact Customer Service

SMARTstop™ Location

Diagram showcasing the application of Carvesmart 2 X 3 X 160Mm Aluminum Jaws 125Mm 5 6

These blank jaws incorporate SMARTstop™, a slot-and-pin system that provides +/-.0003" side-to-side location of custom jaws when jobs repeat. A precise vertical slot in the Master Jaw mates with a dowel pin in the custom jaw.

Material

6061 aluminum, with steel dowel pin.

Click here for detailed material and finish specifications.

CARVESMART™ 2" x 3" x 160mm Aluminum Jaws (125mm, 5", 6", 160mm)

QUANTITY	PART NO.	NUMBER OF JAWS INCLUDED	DESCRIPTION
	CLR-23107	2	(2) Soft Jaws, Aluminum, with SMARTstop, 2" x 3" x 160mm
	CLR-23117	10	(10) Soft Jaws, Aluminum, with SMARTstop, 2" x 3" x 160mm
