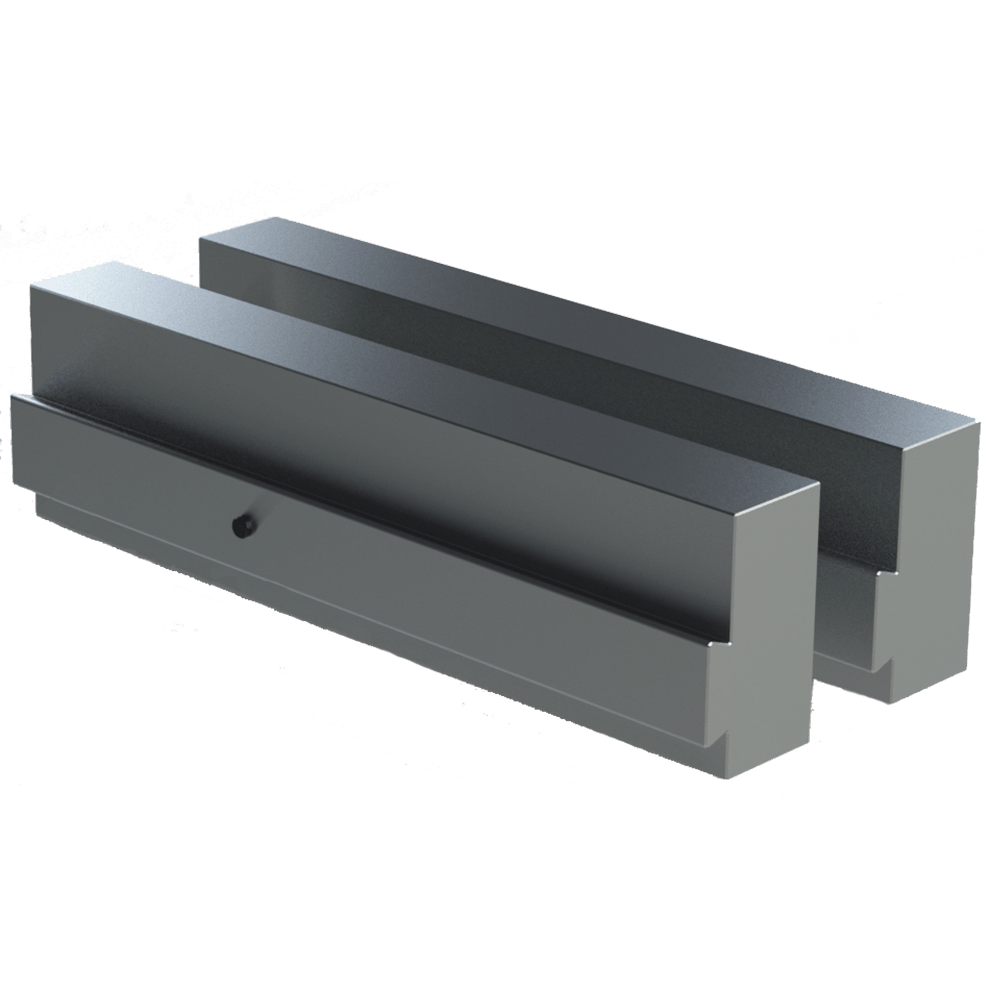

CARVESMART™ 1" x 2.25" x 8" Aluminum Jaws (125mm, 5", 6", 160mm, 8")

ROEMHELD Precision Vises

Save to My Project

What is this?

Product Information

1" x 2.25" x 8" Aluminum

CARVESMART is a complete system of dovetailed vise jaws for production and toolroom vises, allowing custom jaws to be accurately changed in seconds. The machinable blank aluminum jaws shown here fit 8" vises, but can also be used as extra-wide jaws on 125mm, 5", 6", and 160mm vises. These ready-to-use blank jaws incorporate a SMARTstop™ pin that provides +/-.0003" side-to-side location relative to a slot in the master jaw. The large dovetail provides secure custom-jaw retention. Patent no. 8,540,225. Made in USA.

View in Catalog Page
Contact Customer Service
Contact Customer Service

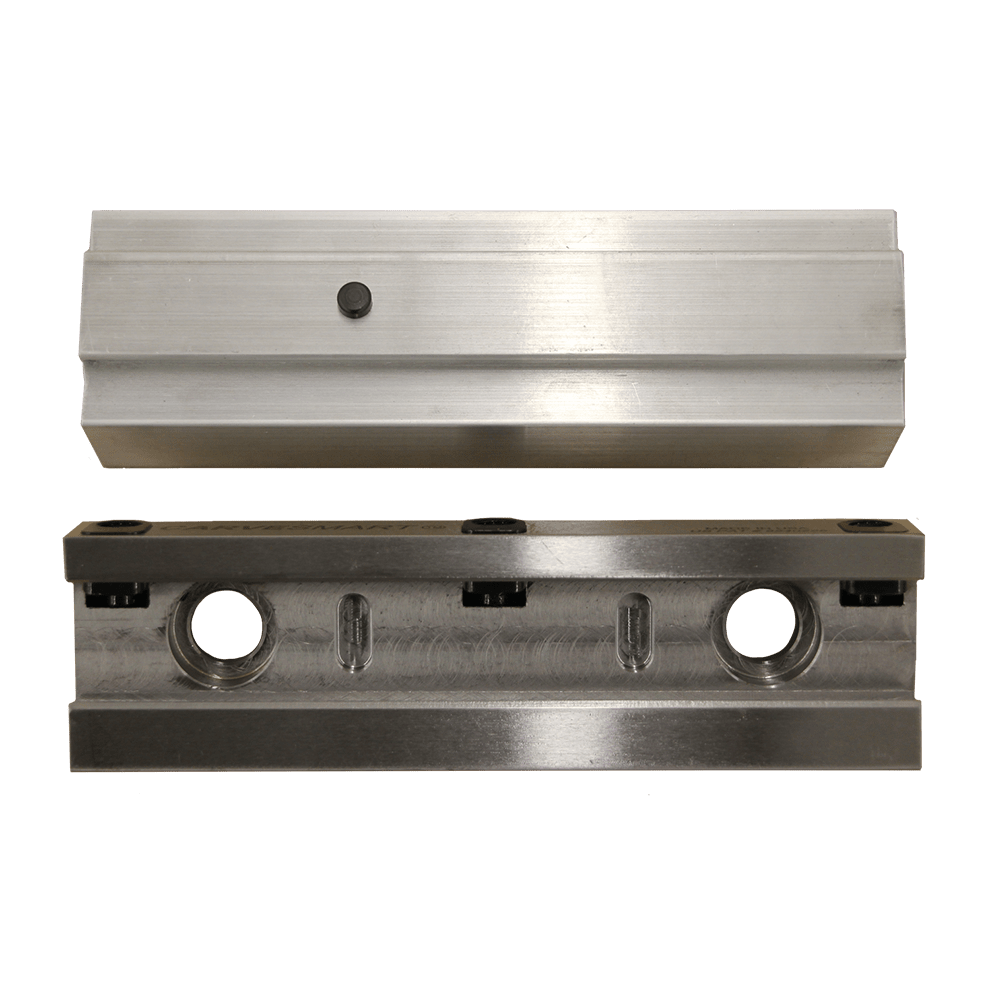

SMARTstop™ Location

Diagram showcasing the application of Carvesmart 1 X 225 X 8 Aluminum Jaws 125Mm 5 6 160Mm 8

These blank jaws incorporate SMARTstop™, a slot-and-pin system that provides +/-.0003" side-to-side location of custom jaws when jobs repeat. A precise vertical slot in the Master Jaw mates with a dowel pin in the custom jaw.

Material

6061 aluminum, with steel dowel pin.

Click here for detailed material and finish specifications.

CARVESMART™ 1" x 2.25" x 8" Aluminum Jaws (125mm, 5", 6", 160mm, 8")

QUANTITY	PART NO.	NUMBER OF JAWS INCLUDED	DESCRIPTION
	CLR-22108	2	(2) Soft Jaws, Aluminum, with SMARTstop, 1" x 2.25" x 8"
	CLR-22118	10	(10) Soft Jaws, Aluminum, with SMARTstop, 1" x 2.25" x 8"

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available
