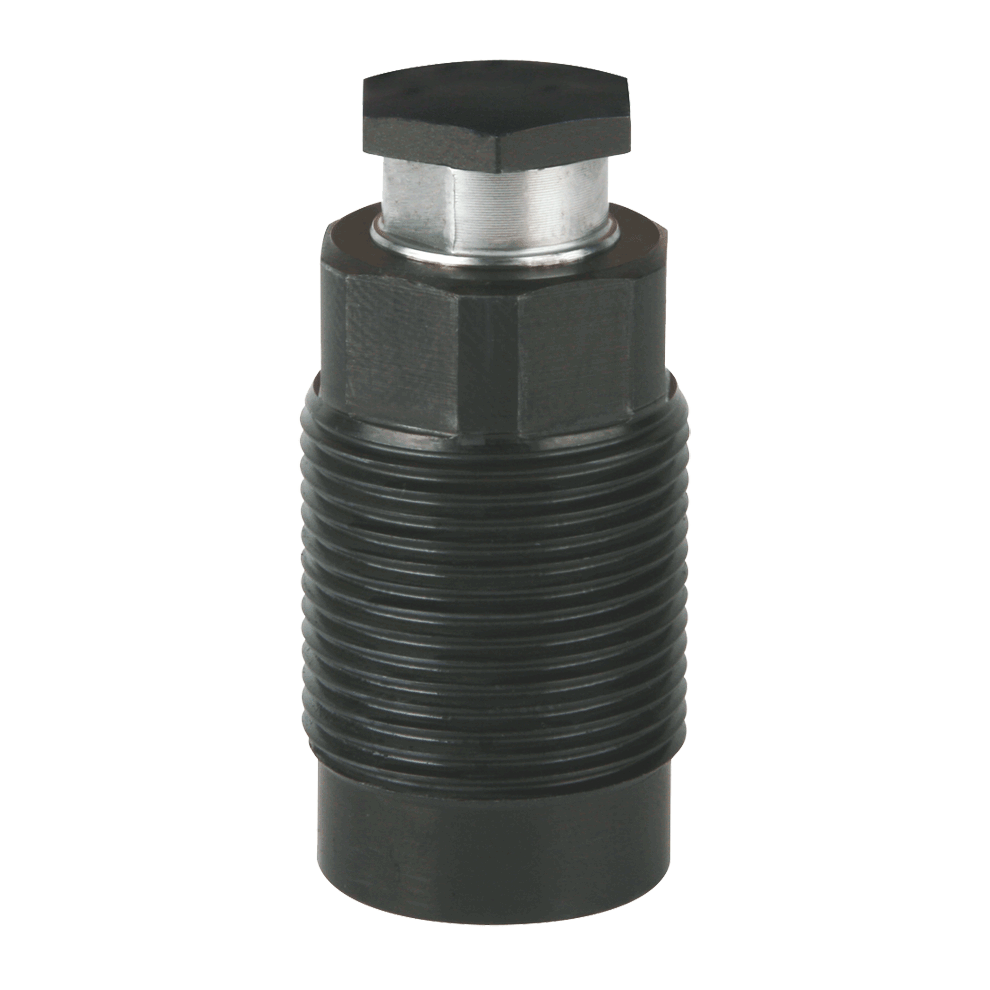

ROEMHELD Mini Threaded-Body Work Supports – Spring Extended, B1.9405 (900 lbs) Part # CLR-1940-900 Carr Lane Mfg.®

5000 psi max

Single Acting

Spring Extended

Work Supports automatically adjust to the proper height for supporting a workpiece, then lock securely to become fixed rests. The mini threaded-body version shown here is the smallest hydraulic work support available anywhere. These work supports have considerable load capacity, yet have a very small M26x1.5 body thread and can be installed as close as 30mm between centers. Manifold mounting capability allows space-saving low-height installation. Highly corrosion resistant with stainless steel plunger and internal components. Metallic wiper and FKM wiper together provide excellent protection against dirt and coolant entry. Hardened contact bolt with sealing furnished.

Available in one size, with the following load capacity at 5000 psi:

900 Lbs

Application Information

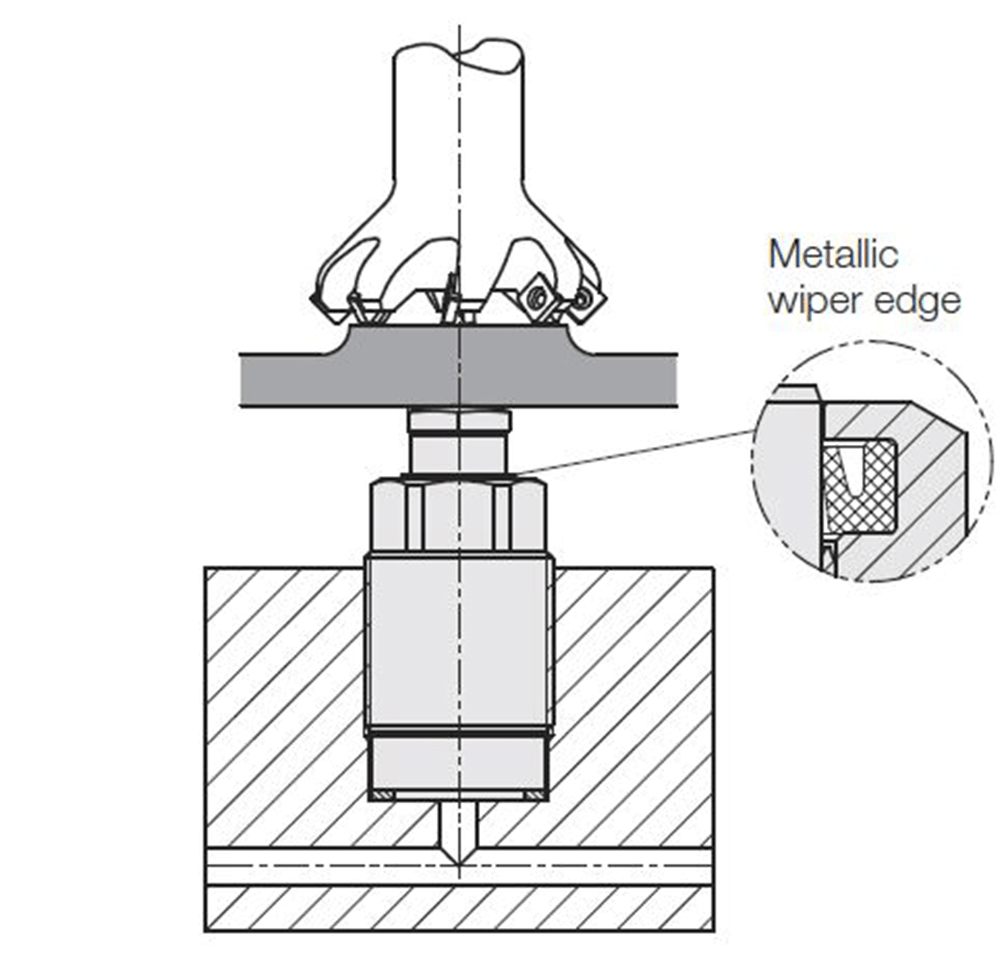

A specially designed metallic wiper edge effectively protects the FKM plunger wiper from hot, abrasive chips.

Documents

B1.9405

Data Sheet

Support Action (Spring Extended)

Diagram showcasing the application of Roemheld Mini Threaded Body Work Supports Spring Extended B19405 900 Lbs

Plunger is normally extended by light spring force. When the workpiece is loaded, its weight depresses the plunger to the proper height. When fluid pressure is applied, the precision sleeve grips the plunger, locking it securely.

Locking height is repeatable within +/-.0002". Such excellent repeatability is possible because of two design features: 1) a precision sliding-fit pressure sleeve holds the plunger absolutely vertical even while unlocked, avoiding any inaccuracy due to locking a tilted plunger, and 2) locking force is entirely radial, so the plunger remains absolutely stationary during the locking process.

Design Considerations

Do not use the plunger to lift loads, or support side loads. The support plunger must always be protected against penetration of contaminants by a contact bolt (furnished).

When supporting underneath a clamp, use a Sequence Valve to delay clamping until the Work Support has reached sufficient load capacity to resist the clamping force. Support load capacity should be at least 2 times clamping force at all times, to resist not only static clamping force, but also dynamic forces due to clamping-arm momentum and machining forces.

Mounting & Fluid Supply

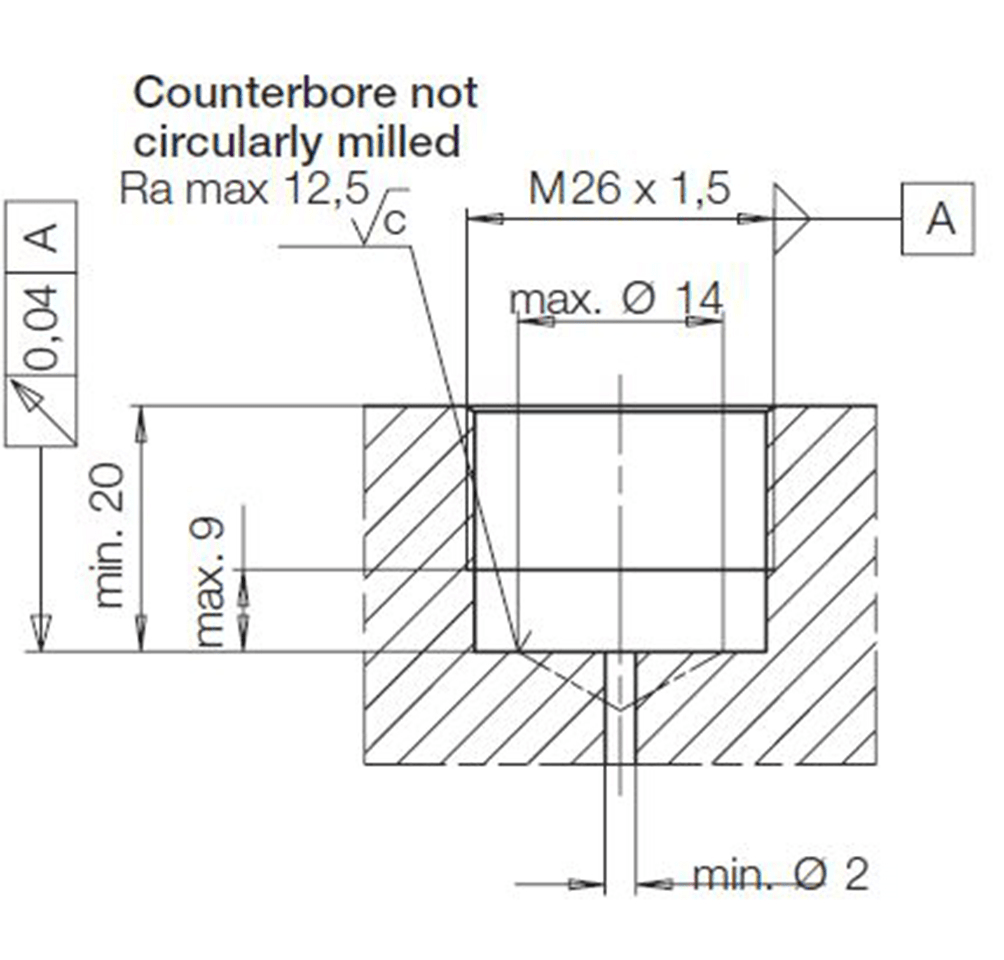

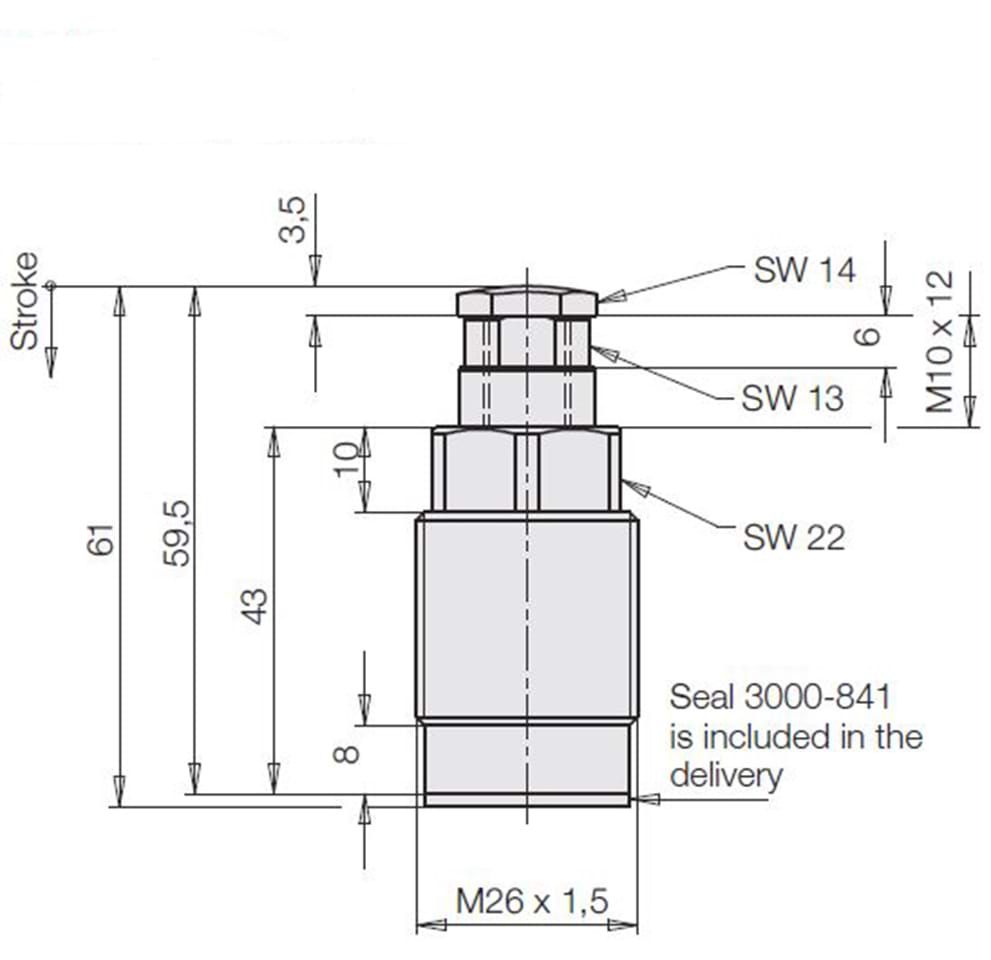

For manifold mounting, install support directly into a flat-bottom tapped hole in the fixture – see drawing for hole preparation instructions. Hydraulic sealing is accomplished by a Sealing Washer (furnished) placed directly underneath the support. Tighten to the recommended seating torque of 37 ft-lbs. For manifold mounting, fluid passages must be drilled as shown in the drawings. Do not use NPT fittings.

Material

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

ITEM	MATERIAL	HEAT TREAT	FINISH
Plunger and Internal Components	Stainless Steel	-	-
Body	Steel	-	Black Oxide
Plunger Wiper	Metallic Wiper Edge and FKM wiper	-	-
Sealing Washer	Delrin	-	-
