ROEMHELD Flange-Base Work Supports – Spring Extended, B1.900 (7200, 11000 lbs)

7250 psi max

Single Acting

Spring Extended

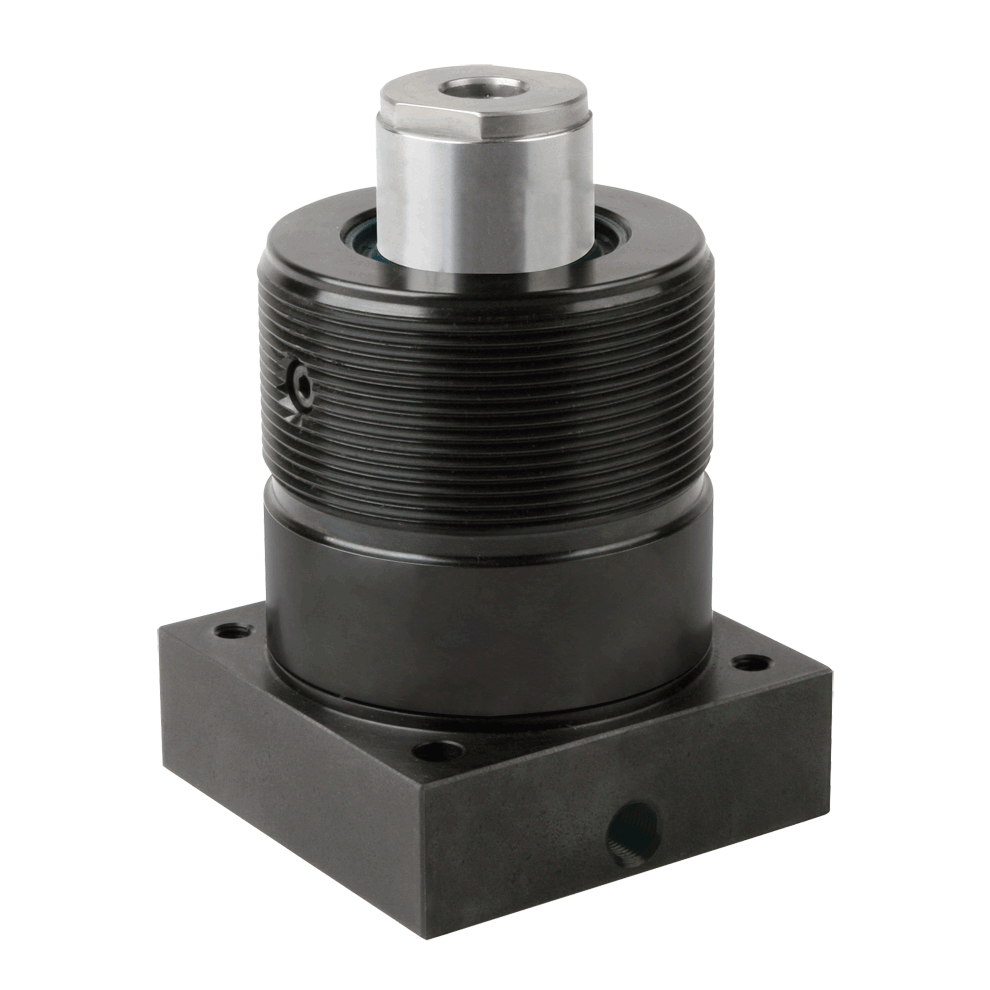

Work Supports automatically adjust to the proper height for supporting a workpiece, then lock securely to become fixed rests. The flange-base version shown here has a long stroke with high load capacity, and provides many mounting options.

Available in two sizes, with inch or metric plunger threads. Choice of two versions: Type 1 with side BSPP port, or Type 2 with bottom BSPP port. Load capacity at 7250 psi:

7200 Lbs (Metric only)

11000 Lbs (Inch & Metric)

Application Information

These Work Supports have a long stroke to provide a large adjustment range.

Documents

B1.900

Data Sheet

Support Action (Spring Extended)

Plunger is normally extended by light spring force. When the workpiece is loaded, its weight depresses the plunger to the proper height. When fluid pressure is applied, the precision sleeve grips the plunger, locking it securely.

Locking height is repeatable within +/-.0002". Such excellent repeatability is possible because of two design features: 1) a precision sliding-fit pressure sleeve holds the plunger absolutely vertical even while unlocked, avoiding any inaccuracy due to locking a tilted plunger, and 2) locking force is entirely radial, so the plunger remains absolutely stationary during the locking process.

These flange-base Work Supports have a contact force that is adjustable from 2 to 20 lbs. To set contact force, insert a screwdriver into the plunger from above. Force varies somewhat depending on plunger extension (2 lbs minimum when fully extended, 20 lbs maximum when fully retracted).

Design Considerations

Do not use the plunger to lift loads, or support side loads. The support plunger must always be protected against penetration of contaminants by a contact bolt (furnished).

When supporting underneath a clamp, use a Sequence Valve to delay clamping until the Work Support has reached sufficient load capacity to resist the clamping force. Support load capacity should be at least 2 times clamping force at all times, to resist not only static clamping force, but also dynamic forces due to clamping-arm momentum and machining forces.

Mounting & Fluid Supply

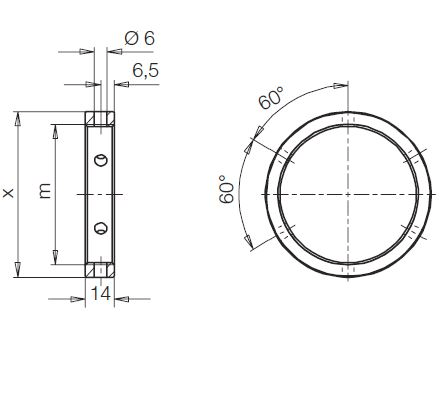

Optional Lock Ring

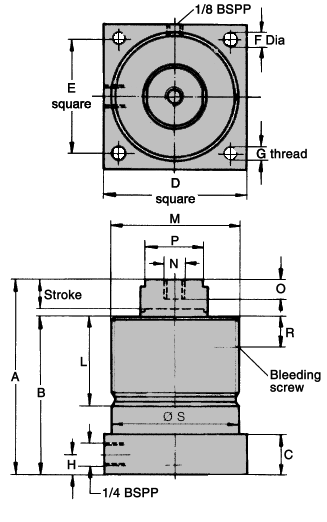

The flange base has two through holes and two tapped holes for mounting. Several possible mounting methods: 1) fasten to top of fixture plate with two socket-head cap screws, either inserted through the flange base from above, or threaded into the flange base from below; 2) Mount through a bored hole in the fixture plate, fastening with two socket-head cap screws, either inserted through the flange base from below, or threaded into the flange base from above; 3) Mount through a tapped hole in the fixture plate, securing with a lock ring; 4) Mount through a bored hole in the fixture plate, securing with one or two lock rings. 1/4" BSPP port. Do not use NPT fittings.

Material

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

ITEM	MATERIAL	HEAT TREAT	FINISH
Plunger	Steel	Case Hardened	-
Body	Steel	-	Black Oxide
