ROEMHELD Threaded-Body Cylinders – Tapped Plunger, B1.460

ROEMHELD Power Workholding

Save to My Project

What is this?

Product Information

ROEMHELD Threaded-Body Cylinders – Tapped Plunger, B1.460 Part # CLR-1460-001 Carr Lane Mfg.®

7250 psi max

Single Acting

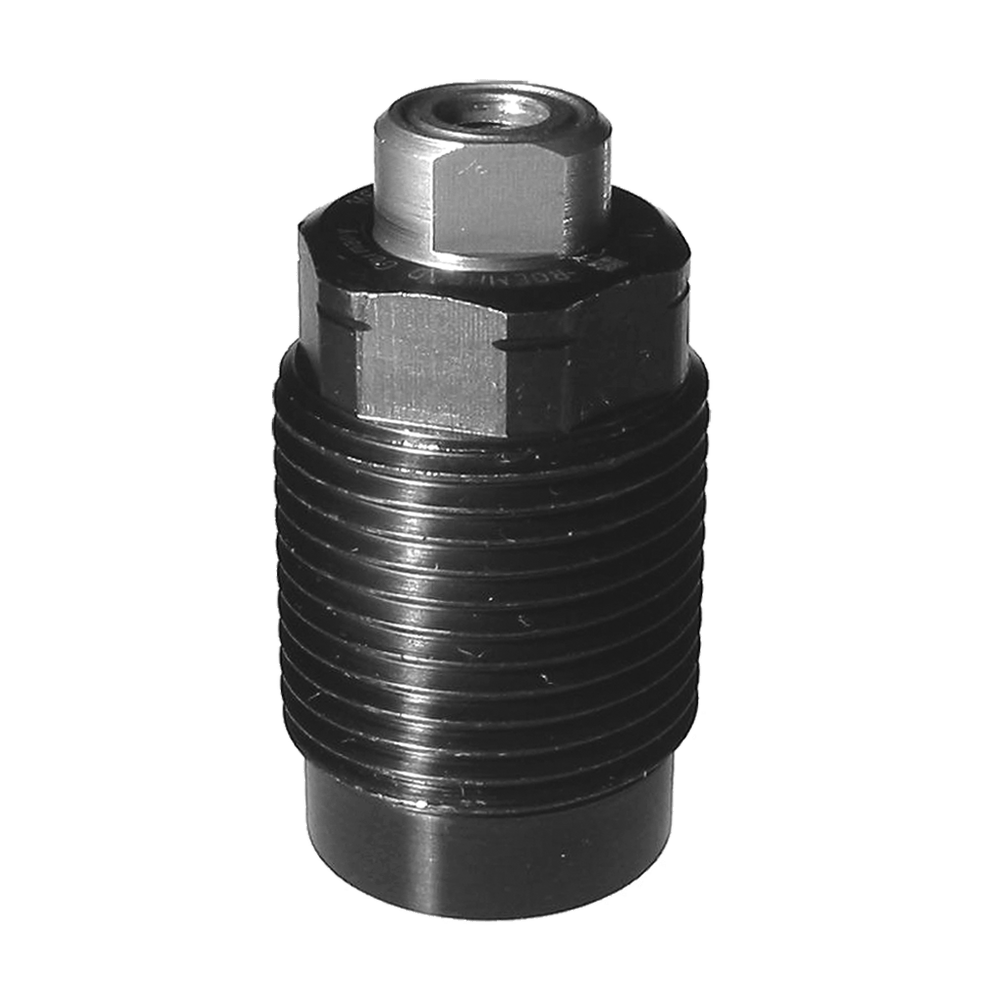

Versatile push clamps that provide considerable force in a small size. These small clamps can be placed very close together, especially when manifold mounted. Clamps can be screwed all the way down to their hex flats, or installed at partial depth. Long plunger guide ensures excellent reliability and durability.

Available in five body diameters, with inch or metric threads, with a choice of tapped plunger (shown here), radius plunger, or swivel plunger. Clamping force at 7250 psi:

1280 lbs

2270 lbs

3530 lbs

5530 lbs

9000 lbs

Documents

B1.460

Data Sheet

Clamping Action

Applying fluid pressure advances the plunger. Spring return.

Design Considerations

Threaded-Body Push Clamps have a positive stroke stop in the extended position, but not in the retracted position. Do not place a load on the plunger while retracted.

Mounting & Fluid Supply

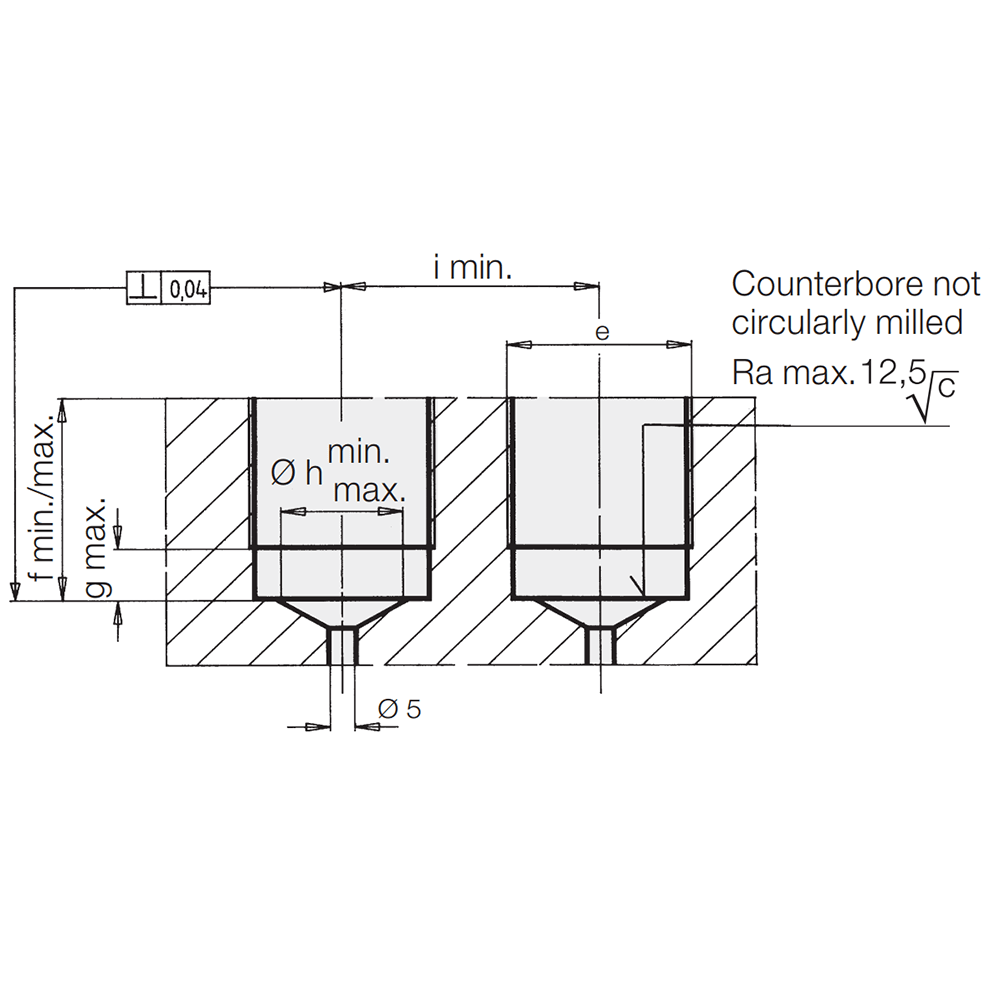

Several possible mounting methods: 1) install clamp directly into a flat-bottom tapped hole in the fixture – see drawings for hole-preparation instructions; 2) install clamp into a Mounting Block; 3) install clamp into a Feeder Cap and mount through a fixture wall (secure with a Jam Nut or Mounting Flange). In all cases, hydraulic sealing is accomplished by a Sealing Washer (furnished) placed directly underneath the clamp. Tighten clamp to recommended seating torque.

Fluid passages must be drilled as shown in the drawings. Do not use NPT fittings.

Material

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

ITEM	MATERIAL	HEAT TREAT	FINISH
Plunger	Steel	-	Case Hardened
Body	Steel	-	Black Oxide
Sealing Washer	Delrin	-	-

ROEMHELD Threaded-Body Cylinders – Tapped Plunger, B1.460

Inch

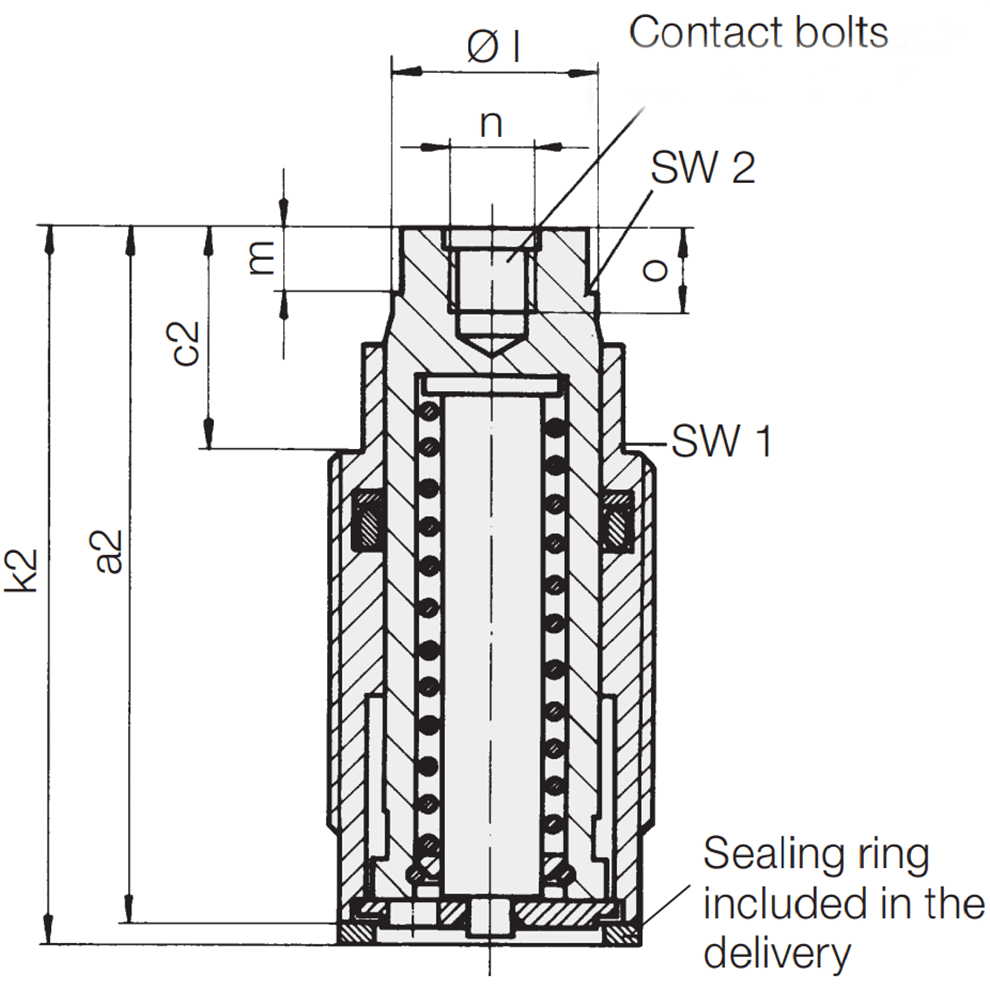

PART NO.	MAXIMUM CLAMPING FORCE (lbs)	MAXIMUM CLAMPING FORCE (kN)	E BODY THREAD	PISTON DIA (mm)	CLAMPING STROKE (mm)	A2 (mm)	B (mm)	C2 (mm)	K2 (mm)	L DIA (mm)	M (mm)	N	O (mm)	SW1	SW2	SEATING TORQUE (ft-lbs)	WEIGHT (lbs)
CLR-001-TB	1280	5.7	7/8-14	12	10	44	7	14	45	11	5.5	1/4-20	6	11/16"	3/8"	30	.2
CLR-101-TB	2270	10.1	1-1/8"-12	16	12	51.5	8	16	52.5	15	5.5	1/4-20	6	15/16"	1/2"	37	.3
CLR-201-TB	3530	15.7	1-1/4"-16	20	15	64.5	8	20.5	65.5	19	6	5/16-18	8	1-1/16"	5/8"	44	.5
CLR-301-TB	5530	24.6	1-1/2"-16	25	16	67	11	22.5	68.5	23	7	5/16-18	8	1-1/4"	3/4"	59	.8
CLR-401-TB	9000	40	1-7/8"-16	32	20	96	12	28	98	30	9	1/2-13	12	1-11/16"	15/16"	166	2.1

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Metric

PART NO.	MAXIMUM CLAMPING FORCE (lbs)	MAXIMUM CLAMPING FORCE (kN)	E BODY THREAD	PISTON DIA (mm)	CLAMPING STROKE (mm)	A2 (mm)	B (mm)	C2 (mm)	K2 (mm)	L DIA (mm)	M (mm)	N	O (mm)	SW1 (mm)	SW2 (mm)	SEATING TORQUE (ft-lbs)	WEIGHT (lbs)
CLR-1460-001	1280	5.7	M22x1.5	12	10	44	7	14	45	11	5.5	M6	6	17	10	30	.2
CLR-1461-001	2270	10.1	M26x1.5	16	12	51.5	8	16	52.5	15	5.5	M6	6	22	13	37	.3
CLR-1462-001	3530	15.7	M30x1.5	20	15	64.5	8	20.5	65.5	19	6	M8	8	24	17	44	.5
CLR-1463-001	5530	24.6	M38x1.5	25	16	67	11	22.5	68.5	23	7	M8	8	32	19	59	.8
CLR-1464-001	9000	40	M48x1.5	32	20	96	12	28	98	30	9	M12	12	41	24	166	2.1
