ROEMHELD Mounting Blocks (Inch)

ROEMHELD Power Workholding

Save to My Project

What is this?

Product Information

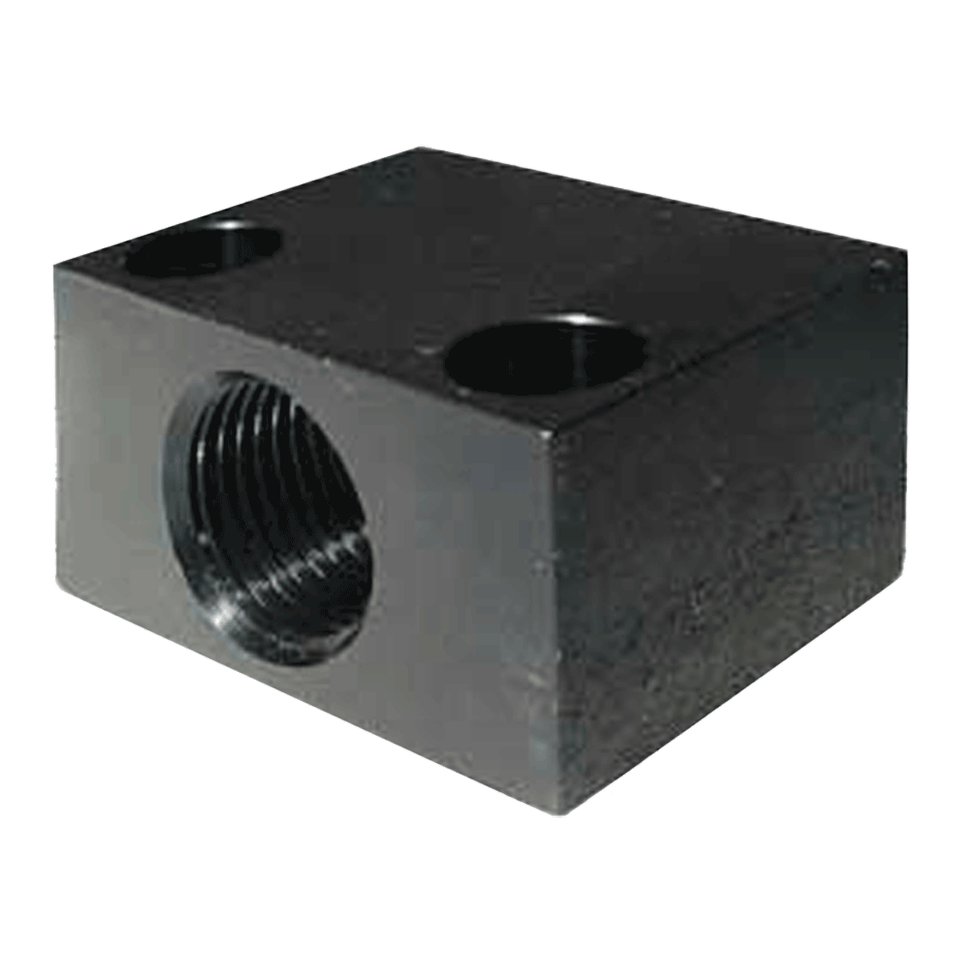

ROEMHELD Mounting Blocks (Inch) Part # CLR-102-TBA Carr Lane Mfg.®

7250 psi max

Mounting Blocks provide a way to use Threaded-Body Cylinders with standard fittings, to allow mounting on flat surfaces. Available in six sizes to fit the following Threaded-Body Push Clamp sizes (inch only).

View in Catalog Page
Contact Customer Service
Contact Customer Service

Mounting

Install clamp in Mounting Block with the furnished Sealing Washer at the bottom of the hole. Tighten to the recommended seating torque. Fasten block to fixture with two Socket-Head Cap Screws.

Material

MATERIAL	HEAT TREAT	FINISH
Steel	-	Black Oxide

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

ROEMHELD Mounting Blocks (Inch)

Inch

PART NO.	A	B	C	D	E	F	G DIA	H	J
CLR-108-TBA	1/2-20	1-5/8	1-1/2	1	1	5/16	1/4-20	1/2	15/16
CLR-100-TBA	7/8-14	1-3/4	2-1/4	1-1/4	1-1/2	3/8	5/16-18	9/16	1-7/32
CLR-101-TBA	1-1/8-12	2	2-3/4	1-1/2	1-7/8	7/16	3/8-16	3/4	1-13/32
CLR-102-TBA	1-1/4-16	2-1/4	3	1-3/4	2	1/2	1/2-13	3/4	1-3/4
CLR-103-TBA	1-1/2-16	2-3/8	3-1/2	2	2-3/8	9/16	1/2-13	1	1-13/16
CLR-104-TBA	1-7/8-16	3-1/4	4	2-1/2	2-3/4	5/8	5/8-11	1-1/4	2-3/4
