ROEMHELD Jam Nuts for Threaded-Body Cylinders

ROEMHELD Power Workholding

Save to My Project

What is this?

Product Information

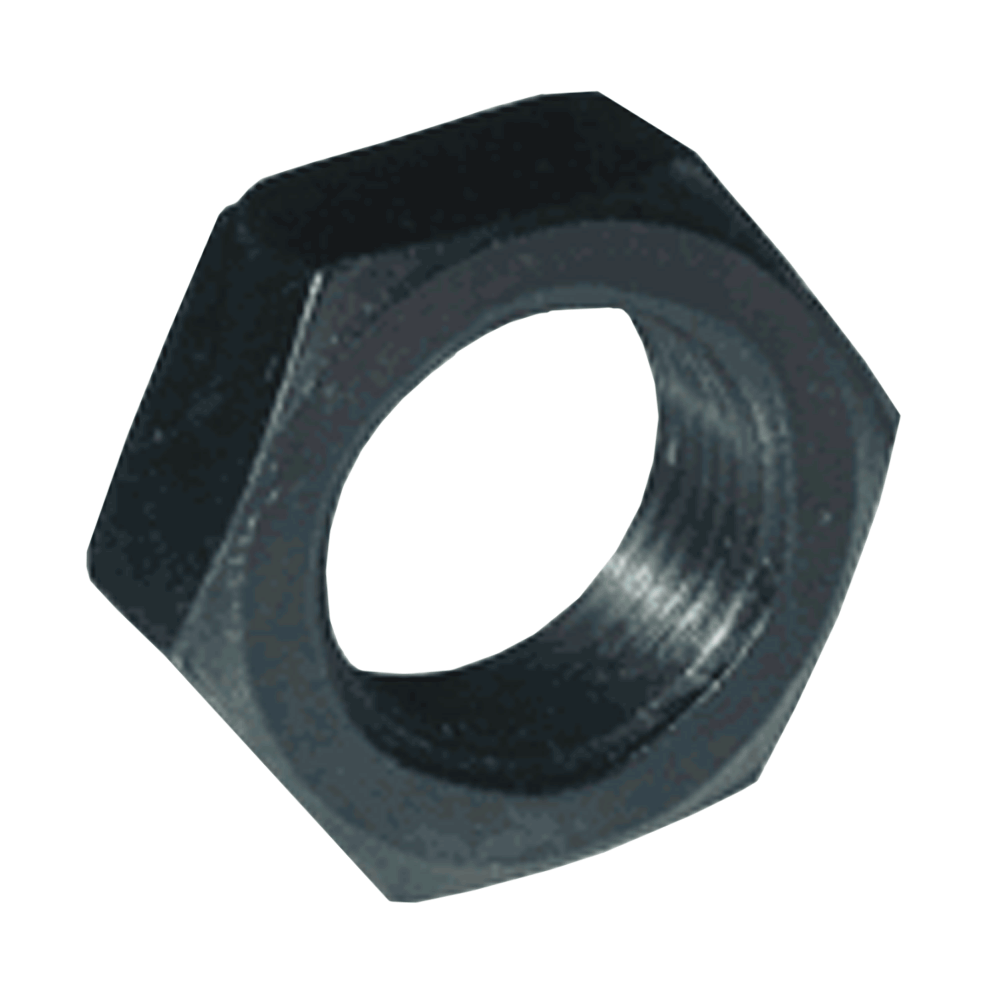

ROEMHELD Jam Nuts for Threaded-Body Cylinders Part # CLR-401-TBA Carr Lane Mfg.®

Jam Nuts and Mounting Flanges are used with Feeder Caps to provide a way to use Threaded-Body Push Clamps with standard fittings, allowing through-hole mounting in plates and brackets. Jam Nuts are used for the smallest three inch sizes. Jam Nuts are also used for metric mini-size clamps.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Mounting

Install clamp in a Feeder Cap, then mount in a tapped or bored through-hole. Secure against rotation with a Jam Nut or Mounting Flange.

Material

MATERIAL	HEAT TREAT	FINISH
Steel	-	Black Oxide

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

ROEMHELD Jam Nuts for Threaded-Body Cylinders

Inch

PART NO.	A CLAMP BODY THREAD	L HEX	N (mm)
CLR-408-TBA	1/2-20	3/4"	8
CLR-400-TBA	7/8-14	1-5/16"	12.5
CLR-401-TBA	1-1/8"-12	1-11/16"	16

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Metric

QUANTITY	PART NO.	A CLAMP BODY THREAD	L HEX (mm)	N (mm)
	CLR-3300-408-TBA	M12x1.5	19	7
	CLR-3300-409-TBA	M16x1.5	24	8
