ROEMHELD Feeder Caps – Hex Body

ROEMHELD Power Workholding

Save to My Project

What is this?

Product Information

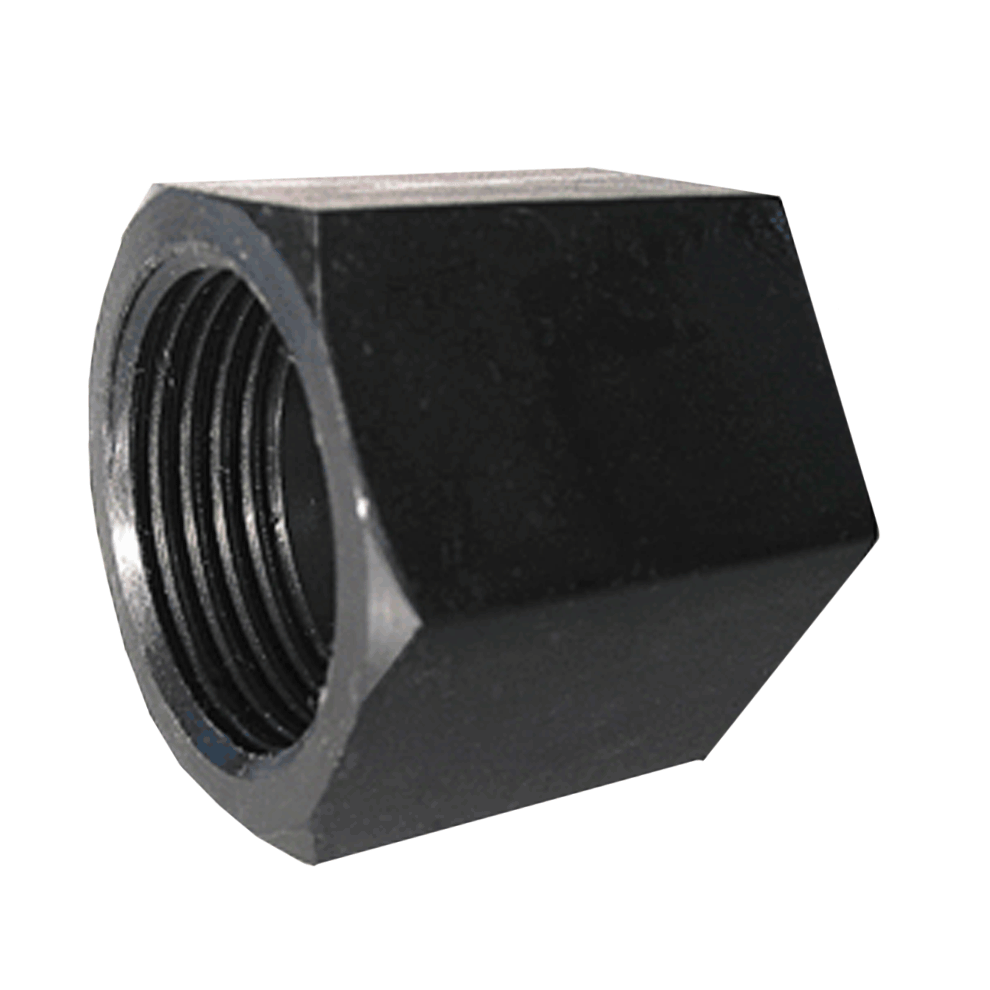

ROEMHELD Feeder Caps – Hex Body Part # CLR-308-TBA Carr Lane Mfg.®

7250 psi max

Feeder Caps provide a way to use Threaded-Body Cylinders with standard fittings, to allow through-hole mounting in plates and brackets. The hex-body Feeder Caps shown here are available in six inch sizes to fit the following thread sizes:

1/2-20 (Mini)

7/8-14

1-1/8"–12

1-1/4"–16

1-1/2"–16

1-7/8"–16

Also available in one metric size to fit the following thread size:

M12x1.5 (Mini)

View in Catalog Page
Contact Customer Service
Contact Customer Service

Mounting

Install clamp in Feeder Cap with the furnished Sealing Washer at the bottom of the hole. Tighten to the recommended seating torque.

Material

MATERIAL	HEAT TREAT	FINISH
Steel	-	Black Oxide

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

ROEMHELD Feeder Caps – Hex Body

Inch

PART NO.	CLAMP BODY THREAD	R HEX	S (mm)	T (mm)	SEATING TORQUE (ft-lbs)
CLR-308-TBA	1/2-20	3/4"	16	11	7
CLR-300-TBA	7/8-14	1-1/8"	28.5	16	30
CLR-301-TBA	1-1/8-12	1-3/8"	32	20	37
CLR-302-TBA	1-1/4-16	1-1/2"	36.5	24	44
CLR-303-TBA	1-1/2-16	1-3/4"	41.5	28	59
CLR-304-TBA	1-7/8-16	2-1/8"	57	42	166

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Metric

QUANTITY	PART NO.	CLAMP BODY THREAD	R HEX (mm)	S (mm)	T (mm)	SEATING TORQUE (ft-lbs)
	CLR-3467-064-TBA	M12x1.5	19	28	11	7
