ROEMHELD Standard Clamping Arms (1 Series)

ROEMHELD Power Workholding

Save to My Project

What is this?

Product Information

ROEMHELD Standard Clamping Arms (1 Series)

5000 psi max

Standard Clamping Arms are compact yet provide considerable reach. The size shown here fits Series 1 Swing Clamps. An adjustable contact bolt is furnished.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Documents

B1.849

Data Sheet

Mounting

Mount clamping arm on the piston rod at desired orientation, then fasten with the socket-head cap screw and washer shown below (order separately).

Material

ITEM	MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Arm	Steel	-	Black Oxide	✔	✔
Contact Bolt	Steel, Grade 8	-	Black Oxide	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

ROEMHELD Standard Clamping Arms (1 Series)

Metric

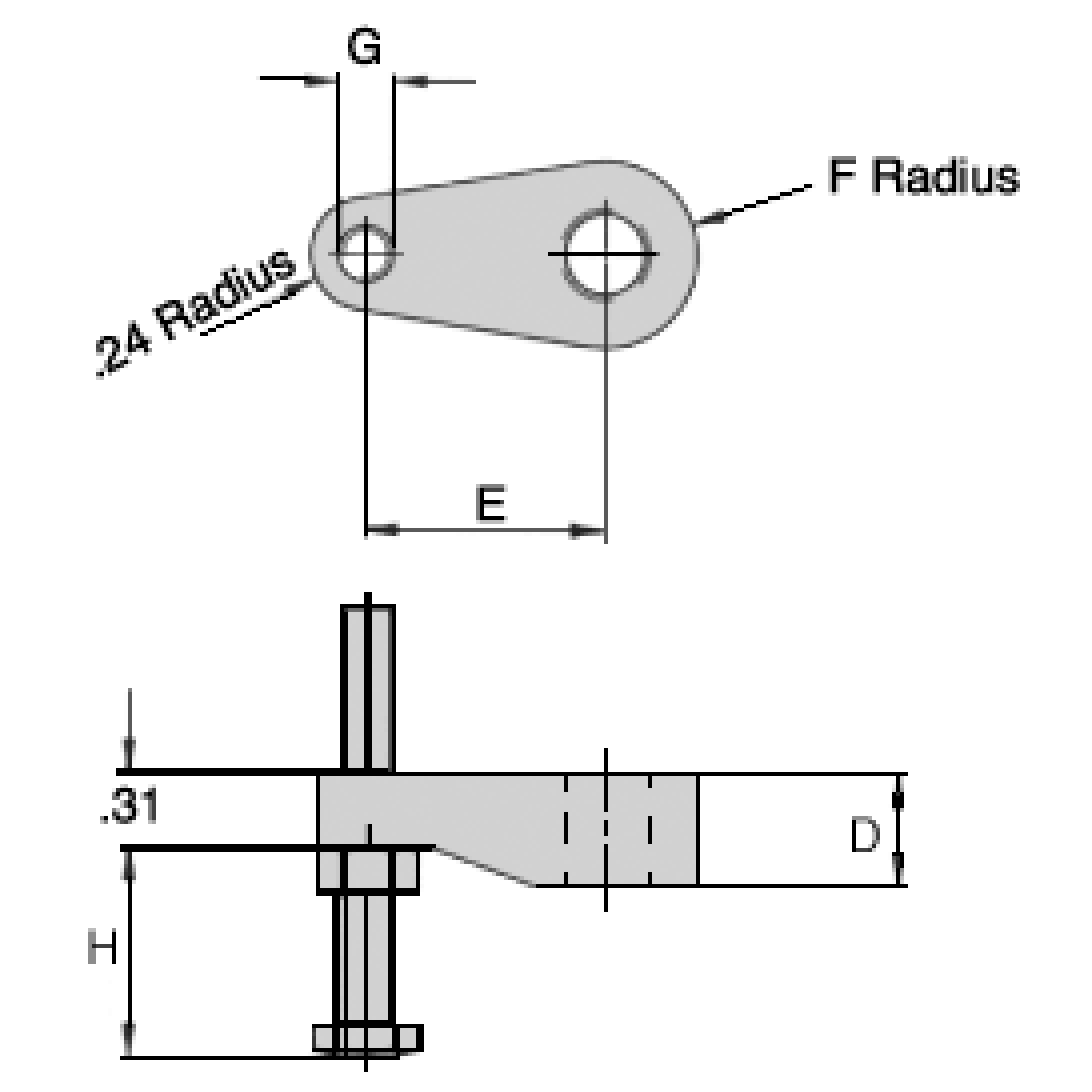

QUANTITY	PART NO.	CLAMP SIZE	OVERALL LENGTH	D	E	F	G THREAD	H MAX	WEIGHT (lbs)
	CLR-0354-057	1 Series	2.95	.472	1.02	.39	M6	1.57	.2

Check Price & Availability
