ROEMHELD Piston-Rod Nuts

ROEMHELD Power Workholding

Save to My Project

What is this?

Product Information

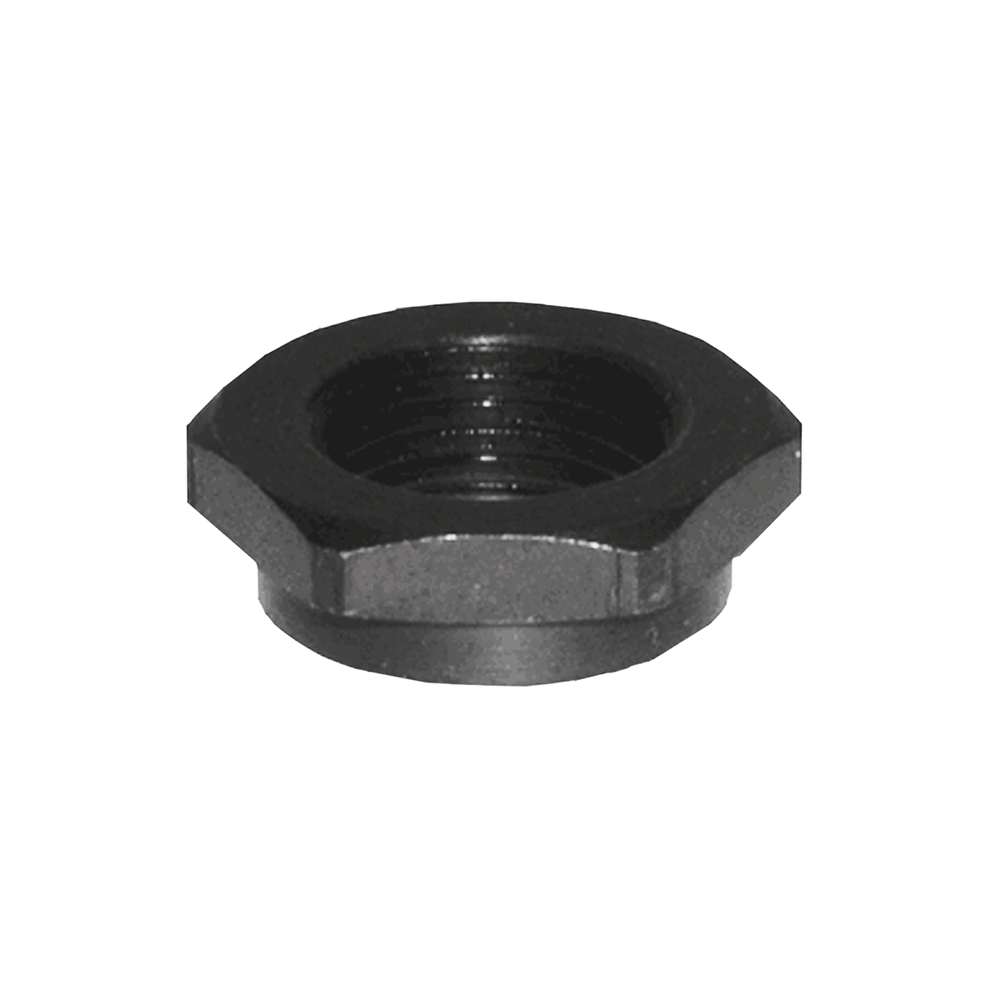

ROEMHELD Piston-Rod Nuts Part # CLR-3527-099-SCA Carr Lane Mfg.®

Piston-Rod Nuts are listed here as spares. One of these Nuts is included with every Swing Clamp that uses it, so they are usually not ordered separately. Smaller-size nuts have hex flats, while larger nuts have spanner slots. Available in six sizes, to fit all sizes of Standard and Robust Swing Clamps.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Material

MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Steel	-	-	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Other materials are available by special order

ROEMHELD Piston-Rod Nuts

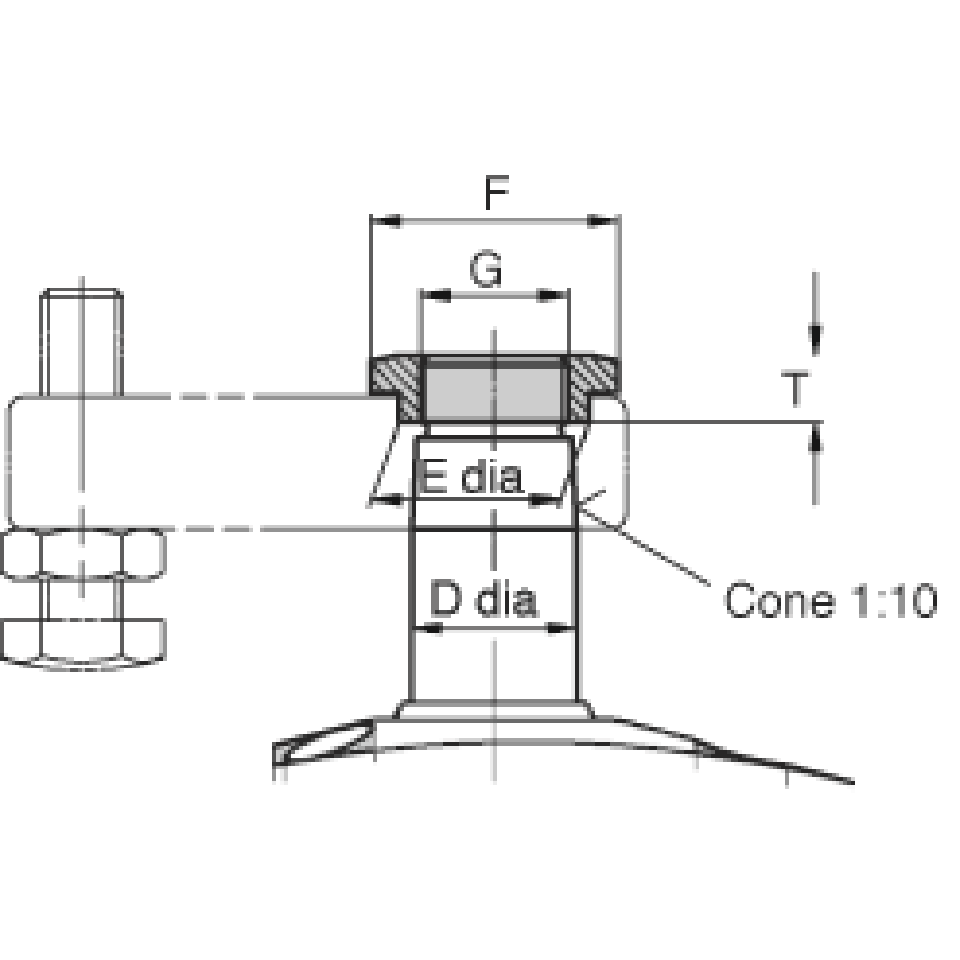

PART NO.	FITS STANDARD-TYPE SWING CLAMPS	FITS ROBUST-TYPE SWING CLAMPS	D DIA	E DIA	F	G	T
CLR-3527-092-SCA	---	Robust 3 Series	16mm	.748	1.06	M14x1.5	.295
CLR-3527-014-SCA	2 & 3 Series	Robust 4 Series	20mm	.925	1.18	M18x1.5	.354
CLR-3527-099-SCA	---	Robust 5 Series	25mm	1.181	1.42	M20x1.5	.394
CLR-3527-015-SCA	5 Series	Robust 6 Series	32mm	1.319	1.57	M28x1.5	.394
CLR-3527-048-SCA	6 Series	Robust 7 Series	40mm	1.772	2.17	M35x1.5	.433
CLR-3527-016-SCA	7 Series	---	50mm	2.185	2.68	M45x1.5	.472
