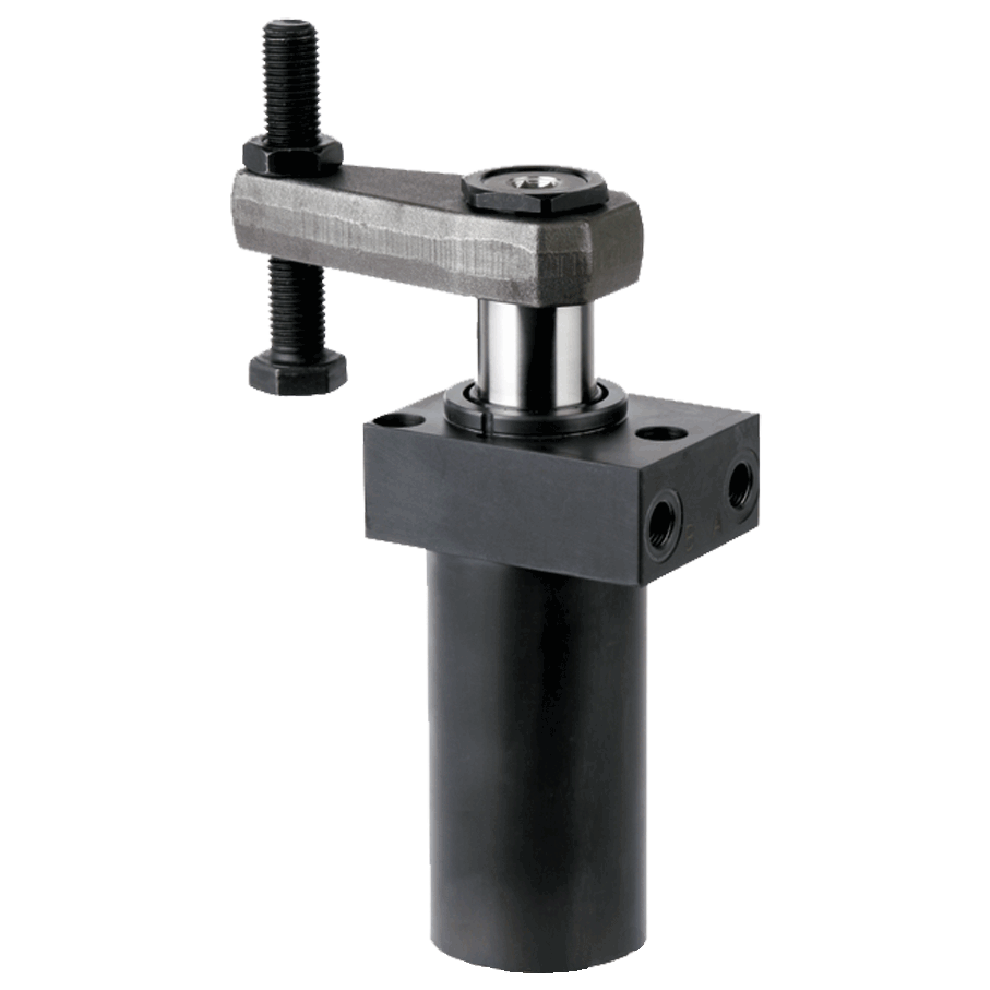

ROEMHELD Standard Swing Clamps – Top Flange, Without Axial Swing Stroke, B1.8806 (3, 5, 6 Series)

5000 psi max

Double Acting

Swing Clamps without axial swing stroke are designed especially for swinging into small side pockets to clamp. These compact, heavy-duty Swing Clamps have a reinforced swing mechanism. Clamping arm can be mounted to start its 90° swing from any position within 360°. The top-flange version shown here allows low-profile installation. Dual mounting capability provides every clamp with the option of using either standard fittings or manifold mounting.

Available in three sizes, each with a choice of clockwise or counterclockwise swing, double acting only. Clamping force at 5000 psi with a standard clamping arm:

1100 Lbs (3 series)

2700 Lbs (5 series)

4000 Lbs (6 series)

Documents

10.22 B1.8806

Clamping Action

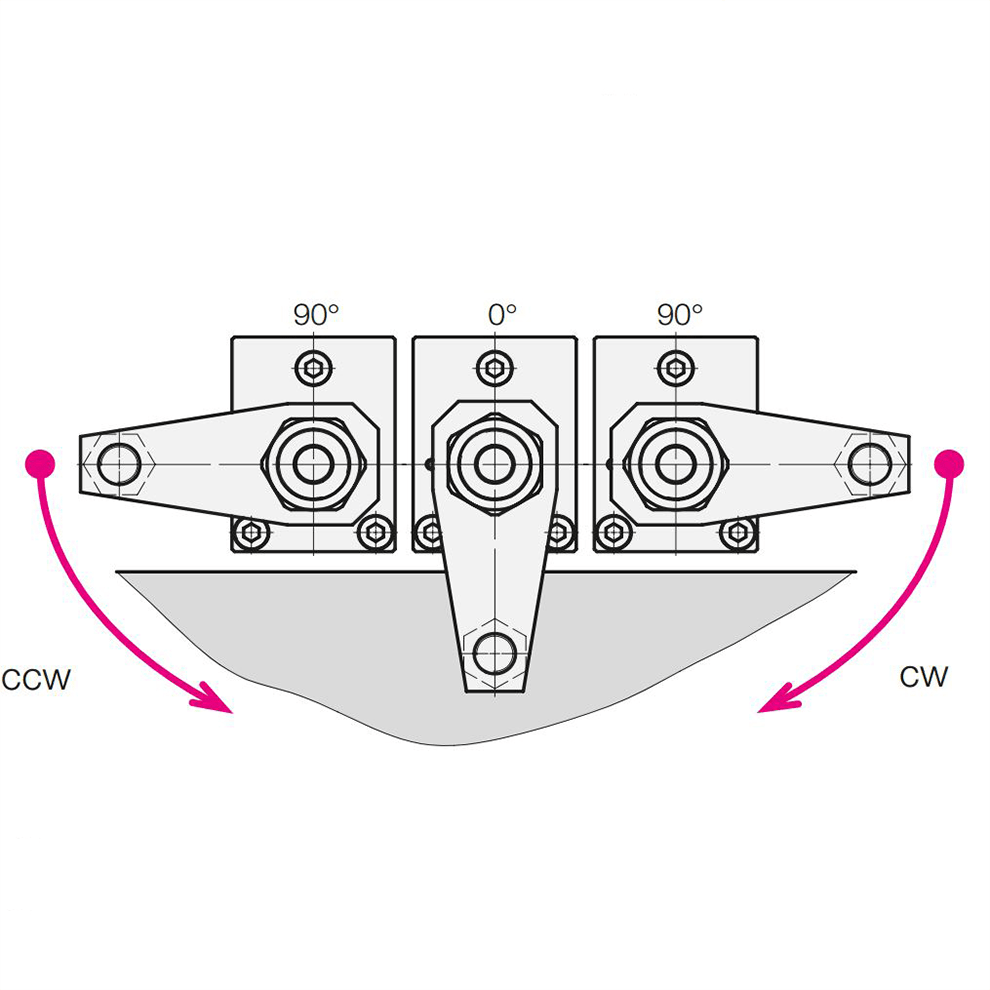

Available with clockwise or counterclockwise swing

Applying fluid pressure to the A (clamping) port swings arm 90° over workpiece then clamps down. This clamp's swing is entirely in a horizontal plane. Switching pressure to the B (unclamping) port positively lifts arm then swings it back 90° for loading/unloading.

Reinforced Swing Mechanism

Reinforced swing mechanism ensures positive arm position. The safety-clutch mechanism normally incorporated into our swing clamps is omitted in this design. In case the workpiece hits the clamping arm during loading, the angular position of the swing-clamp arm will be exactly maintained. Using a longer, heavier clamping arm will also not declutch the swing arm and affect arm position.

Optional Position Control

An accessory unit for pneumatic position control is available to monitor that the Swing Clamp is in "clamped" position. This simple, reliable unit consists of a stainless steel housing with a spring-loaded control tappet. To operate the tappet, a control bracket must be attached to the rear of the clamping arm. This bracket must be adjusted so that it first contacts the tappet during the downward clamping stroke, after the full swing stroke, at a height where it will not bottom out on the housing at full clamping stroke. When the clamping arm reaches "clamped" position, the pressure control is closed and the pressure built up at the pneumatic port can be evaluated with a differential pressure switch. Parallel connection of up to three controls is possible with a single differential switch.

Optional Metallic Wiper

This optional, additional wiper protects the FKM wiper against physical damage, e.g. by hot chips. These Swing Clamps are ready for mounting the metallic wiper, which consists of a radially floating wiping disk and a retaining disk which is pressed onto the existing collar. Clamps can be ordered with the metallic wiper already installed, or the metallic wiper can be ordered separately.

Mounting & Fluid Supply

Dual mounting capability allows any clamp to be mounted using standard fittings or manifold mounting. Two 1/4" BSPP ports. For optional manifold mounting, use the O-ring ports underneath, instead of the standard ports. Do not use NPT fittings. For manifold mounting, the mounting surface must be ground flat to ensure proper O-ring sealing. Fasten clamp with four socket-head cap screws.

Clamping Arm

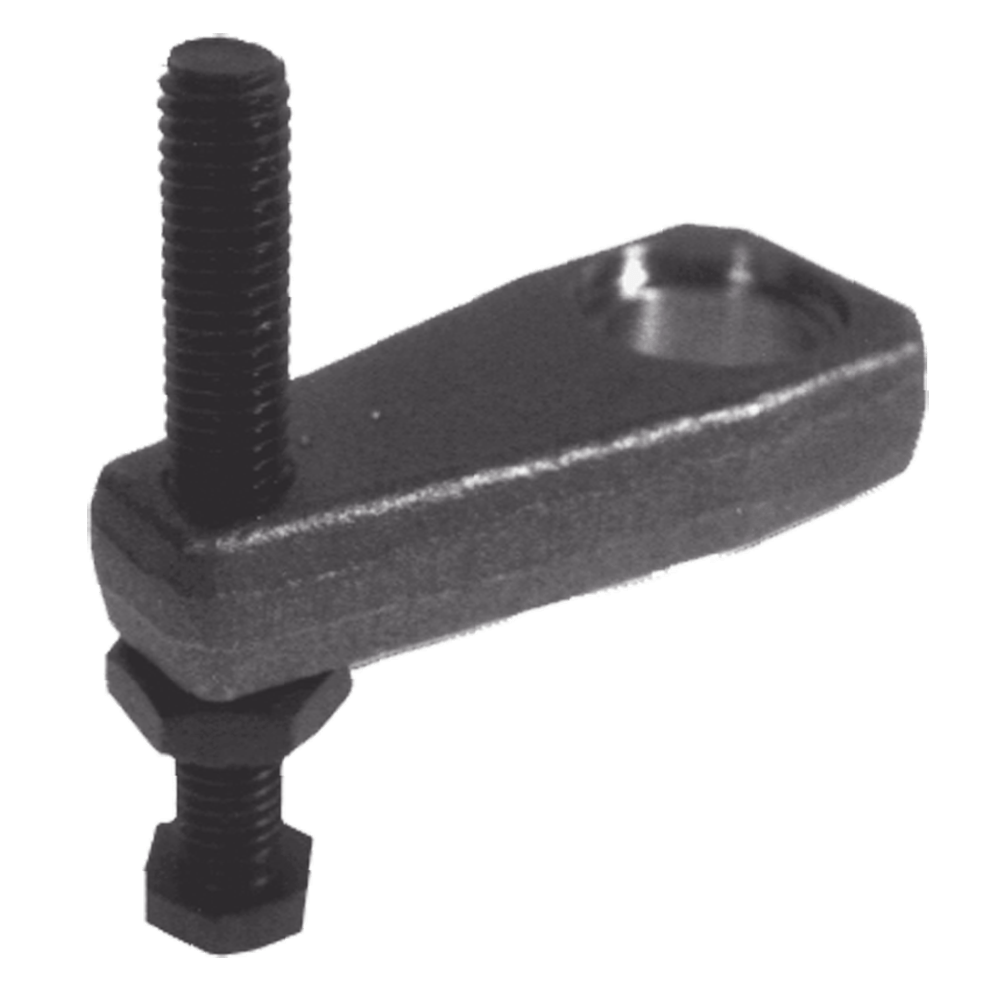

Standard Clamping Arm

5000 psi max

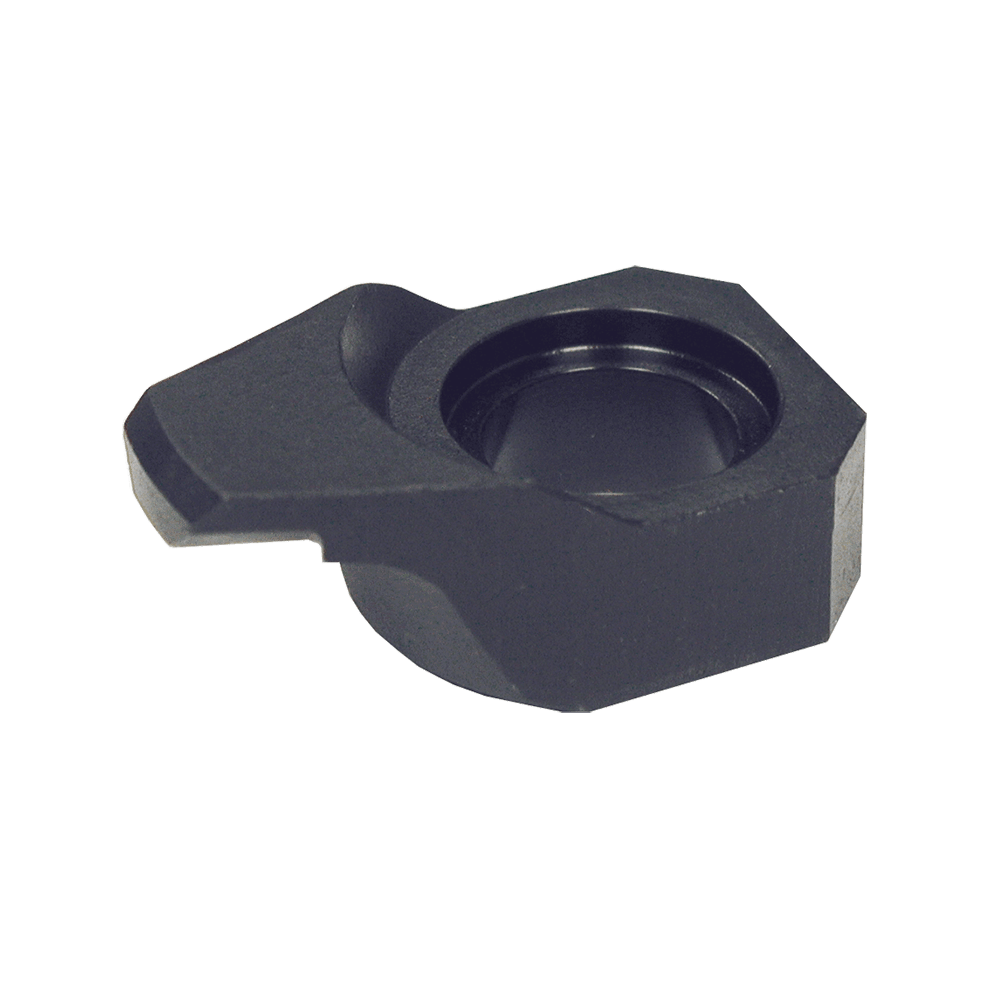

Gooseneck Clamping Arm

5000 psi max

Order clamping arm separately below. Maximum allowable operating pressure is 5000 psi. Longer, custom clamping arms will reduce allowable operating pressure, inversely proportional to arm length. Optionally, the clamping arm can be positively keyed to the piston rod in a fixed 90° position by inserting an indexing pin (order separately).

Material

Piston > Alloy steel, nitrated for wear and corrosion resistance. Housing > Mild steel, nitrated for wear and corrosion resistance. Piston rod wiper > FKM. DFARS and RoHS compliant.

Click here for detailed material and finish specifications.
