ROEMHELD Pivoting Clamping Arms (2, 3, 5, 6, 7 Series)

7250 psi max

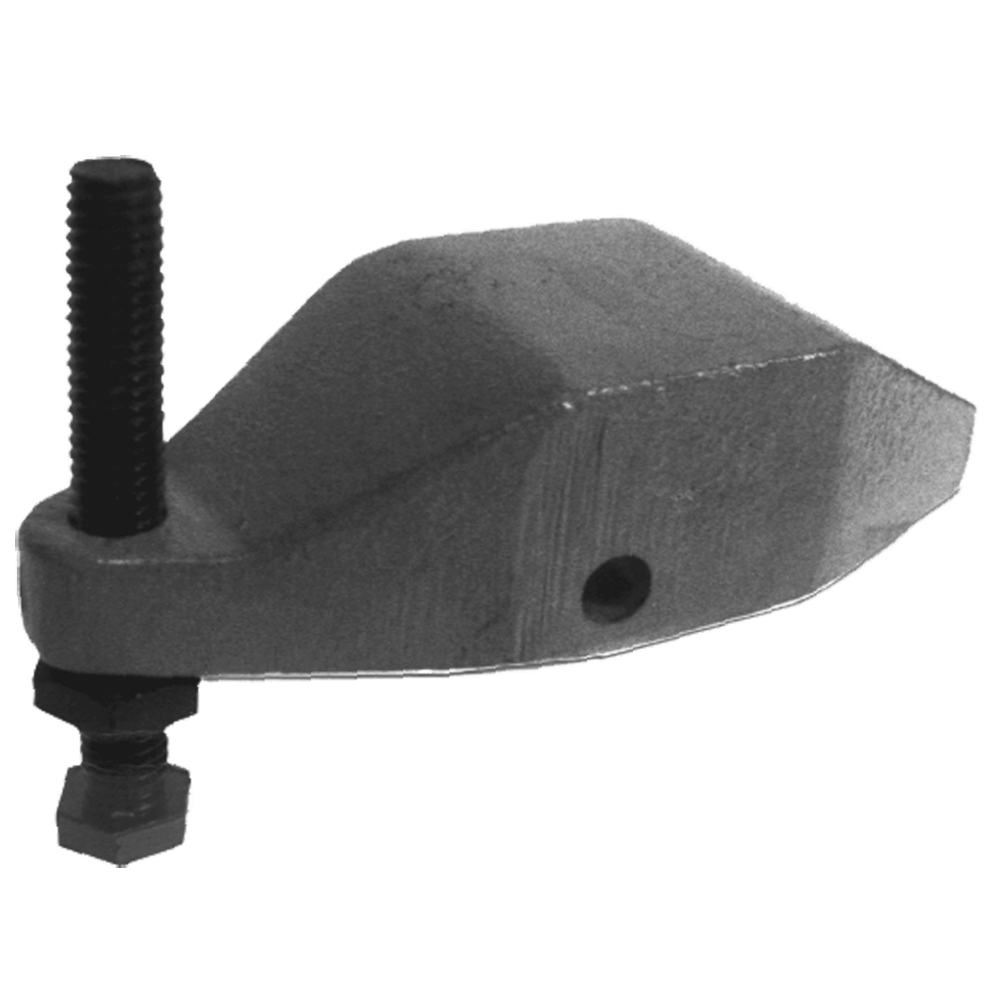

Complete assembly with a rugged nodular iron clamping arm that pivots on a forged steel carrier. This swing-clamp arm requires a rear support and allows operating pressures up to 7250 psi. Clamping end is held up by spring force. Adjustable contact bolt furnished. Longest reach of any standard arm. Available in four sizes, to fit five different Swing Clamp series, with a choice of USA or metric contact-bolt threads.

Documents

Accessories for Standard Swing Clamps

Data Sheet

Mounting

To mount on a Swing Clamp, first remove the carrier from the clamping arm. Mount carrier on the tapered piston rod at desired orientation, then fasten with the piston-rod nut included with swing clamp. Reassemble arm on the carrier.

Material

ITEM	MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Arm	Nodular Iron	-	-	✔	✔
Carrier	Forged 1045 Steel	-	-	✔	✔
Pivot pin, retaining ring, and springs	Steel	-	-	✔	✔
Contact Bolt	Steel, Grade 8	-	Black Oxide	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

ROEMHELD Pivoting Clamping Arms (2, 3, 5, 6, 7 Series)

Inch

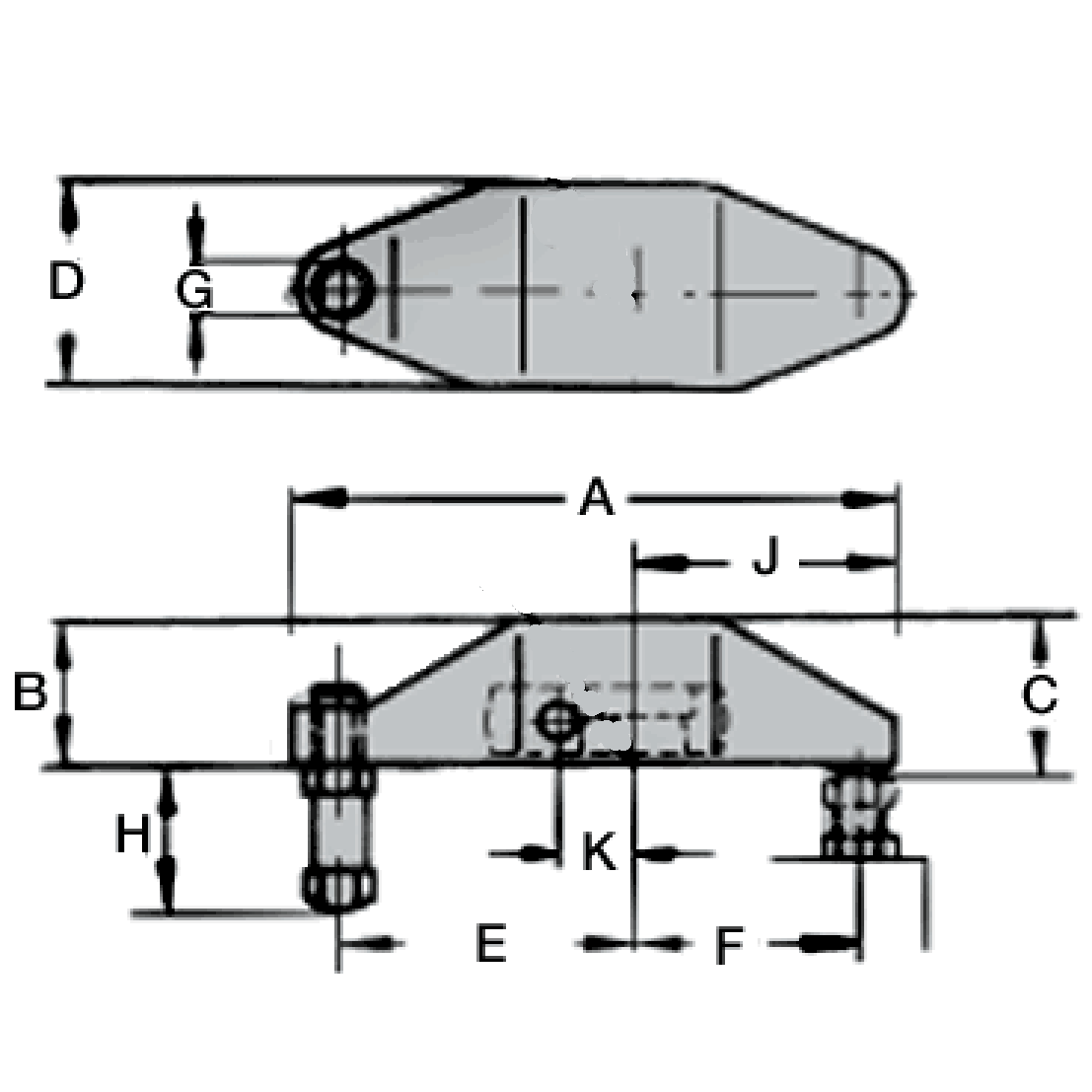

PART NO.	CLAMP SIZE	A	B	C	D	E	F	G THREAD	H MAX	J	K	WEIGHT (lbs)
CLR-302-SCA	2 & 3 Series	4.80	1.18	1.24	1.73	2.36	1.77	3/8-16	2.52	2.09	.57	1.3
CLR-502-SCA	5 Series	7.28	1.77	1.85	2.30	3.27	2.95	5/8-11	3.11	3.43	.83	3.5
CLR-602-SCA	6 Series	7.99	2.13	2.22	3.23	3.62	3.23	5/8-11	3.11	3.74	1.10	7.6
CLR-702-SCA	7 Series	8.78	2.32	2.42	3.86	3.94	3.54	3/4-10	3.86	4.13	USA	10.5

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Metric

PART NO.	CLAMP SIZE	A	B	C	D	E	F	G THREAD	H MAX	J	K	WEIGHT (lbs)
CLR-0354-000-SCA	2 & 3 Series	4.80	1.18	1.24	1.73	2.36	1.77	M10	2.52	2.09	.57	1.3
CLR-0354-002-SCA	5 Series	7.28	1.77	1.85	2.30	3.27	2.95	M16	3.11	3.43	.83	3.5
CLR-0354-041-SCA	6 Series	7.99	2.13	2.22	3.23	3.62	3.23	M16	3.11	3.74	1.10	7.6
CLR-0354-004-SCA	7 Series	8.78	2.32	2.42	3.86	3.94	3.54	M20	3.86	4.13	1.30	10.5
