ROEMHELD Double Clamping Arms (2, 3, 5, 6, 7 Series)

ROEMHELD Power Workholding

Save to My Project

What is this?

Product Information

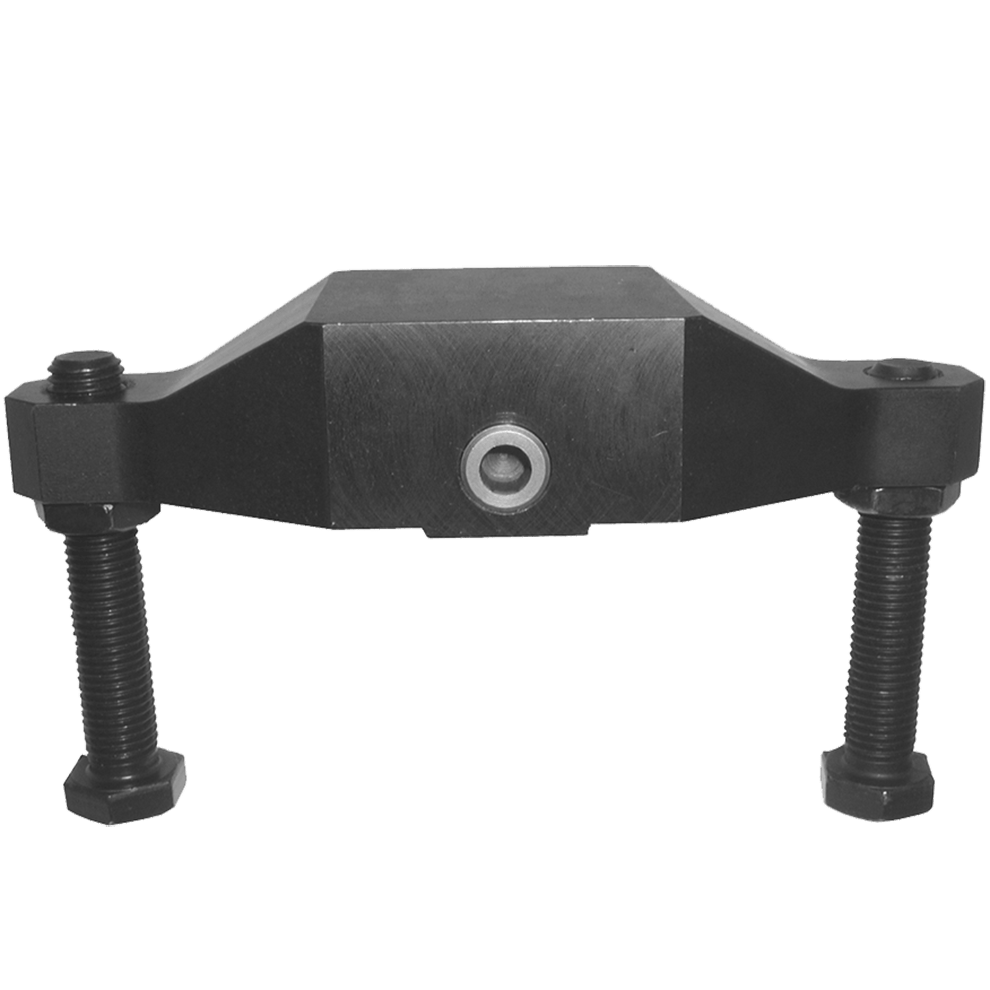

ROEMHELD Double Clamping Arms (2, 3, 5, 6, 7 Series) Part # CLR-0354-134-SCA Carr Lane Mfg.®

7250 psi max

Double Clamping Arms are used to clamp two workpieces at the same time. The double arm pivots on a steel carrier to apply equal force to both workpieces. Two adjustable contact bolts furnished. Available in four sizes, to fit five different Swing Clamp series.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Application Information

Documents

Accessories for Standard Swing Clamps

Data Sheet

Mounting

To mount on a Swing Clamp, first remove the carrier from the clamping arm. Mount carrier on the tapered piston rod at desired orientation, then fasten with the piston-rod nut included with Swing Clamp. Reassemble arm on the carrier.

Material

Arm > Nodular iron. Carrier > 1045 steel. Threaded bolt and spring elements > Steel. Contact bolts > Steel, grade 8, black oxide finish.

Click here for detailed material and finish specifications.

ROEMHELD Double Clamping Arms (2, 3, 5, 6, 7 Series)

PART NO.	CLAMP SIZE	A	B	C	D DIA	E	F MAX	G	SW	WEIGHT (lbs)
CLR-0354-131-SCA	2 & 3 Series	5.43	2.32	1.12	20mm	2.36	2.52	M10	5mm	1.8
CLR-0354-132-SCA	5 Series	7.72	2.95	1.50	32mm	3.27	3.11	M16	8mm	4.6
CLR-0354-133-SCA	6 Series	8.50	3.35	1.85	40mm	3.62	3.11	M16	8mm	7.0
CLR-0354-134-SCA	7 Series	9.29	4.13	2.20	50mm	3.94	3.86	M20	8mm	11.5

Check Price & Availability
