ROEMHELD Robust Swing Clamps (3, 4, 5, 6, 7 Series)

ROEMHELD Power Workholding

Save to My Project

What is this?

Product Information

5000 psi max

Double Acting

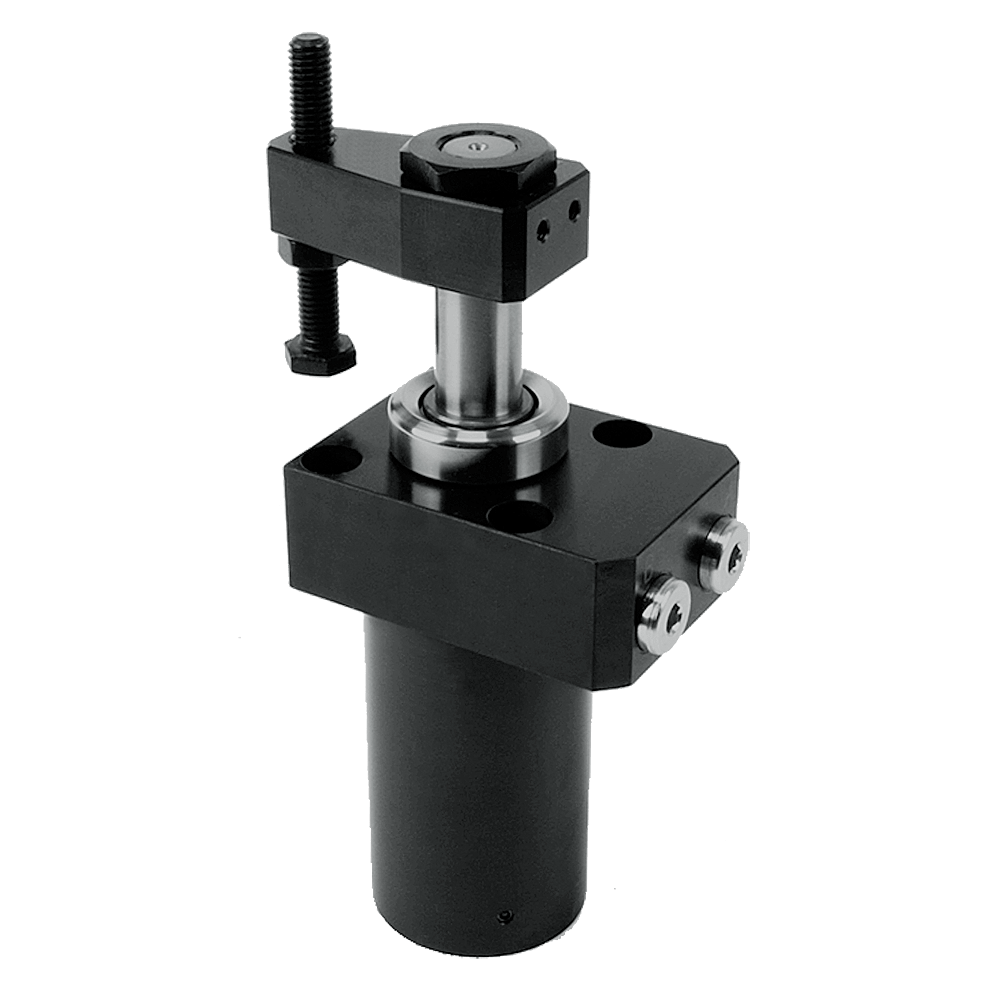

Swing Clamps utilize a sturdy helical-cam mechanism to swing the clamping arm clear for unrestricted loading. The Robust Swing Clamps shown here are compact, economical, heavy-duty clamps with a reinforced swing mechanism and a heavier clamping arm to exert high clamping force in relation to clamp size – especially important at lower operating pressures (450 to 5000 psi operating range). Robust Swing Clamps are also ideal when using longer, heavier custom arms. An integral flow-control orifice allows using high-flow-rate power sources without separate flow restrictors. Available in five clamp sizes, double acting only, in the three types shown below:

Top Flange
Flange Base
Top Flange, Cartridge Type

Contact Customer Service
Contact Customer Service

Browse our Selection of ROEMHELD Robust Swing Clamps (3, 4, 5, 6, 7 Series)

ROEMHELD Swing Limiters

ROEMHELD Robust Swing Clamp Long Arms

ROEMHELD Robust Swing Clamp Double Arms

ROEMHELD Robust Swing Clamps – Top Flange, B1.853 (3, 4, 5, 6, 7 Series)

ROEMHELD Robust Swing Clamps – Flange Base, B1.854 (3, 4, 5, 6 Series)

ROEMHELD Robust Swing Clamps – Top Flange, Cartridge Type, B1.852 (3, 4, 5, 6 Series)

ROEMHELD Standard Clamping Arms (Robust)
