ROEMHELD Double Clamping Arms (1 Series)

ROEMHELD Power Workholding

Save to My Project

What is this?

Product Information

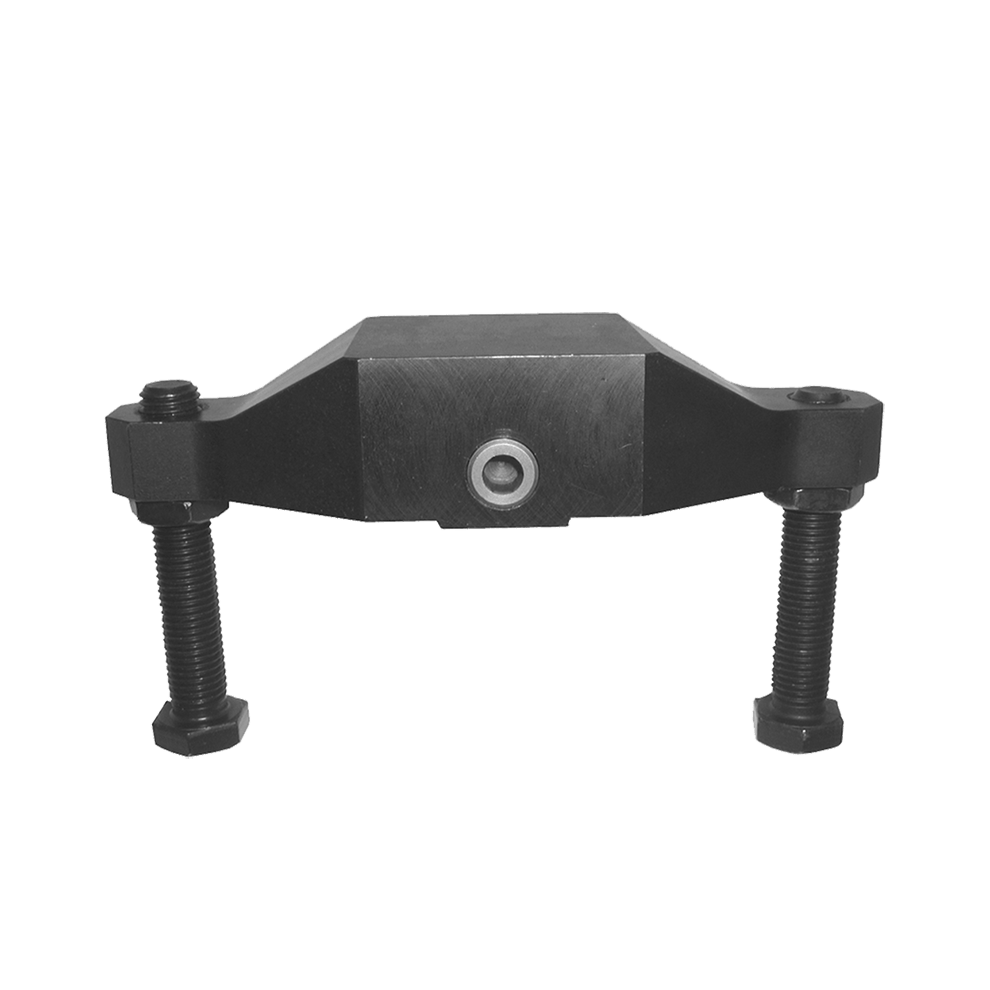

ROEMHELD Double Clamping Arms (1 Series) Part # CLR-0354-082 Carr Lane Mfg.®

5000 psi max

Double Clamping Arms are used to clamp two workpieces at the same time. The double arm pivots on a steel carrier to apply equal force to both workpieces. Two adjustable contact bolts furnished.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Documents

B1.849

Data Sheet

Mounting

To mount on a Swing Clamp, first remove the carrier from the clamping arm. Mount carrier on the piston rod at desired orientation, then fasten with the socket-head cap screw and washer shown below (order separately). Reassemble arm on the carrier.

Material

ITEM	MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Arm	Steel	-	Black Oxide	✔	✔
Contract Bolts	Steel, Grade 8	-	Black Oxide	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

ROEMHELD Double Clamping Arms (1 Series)

QUANTITY	PART NO.	CLAMP SIZE	A	B	C	D DIA	E	F MAX	G	SW	WEIGHT (lbs)
	CLR-0354-082	1 Series	2.83	1.10	1.42	10mm	1.18	1.57	M6	—	1.0
