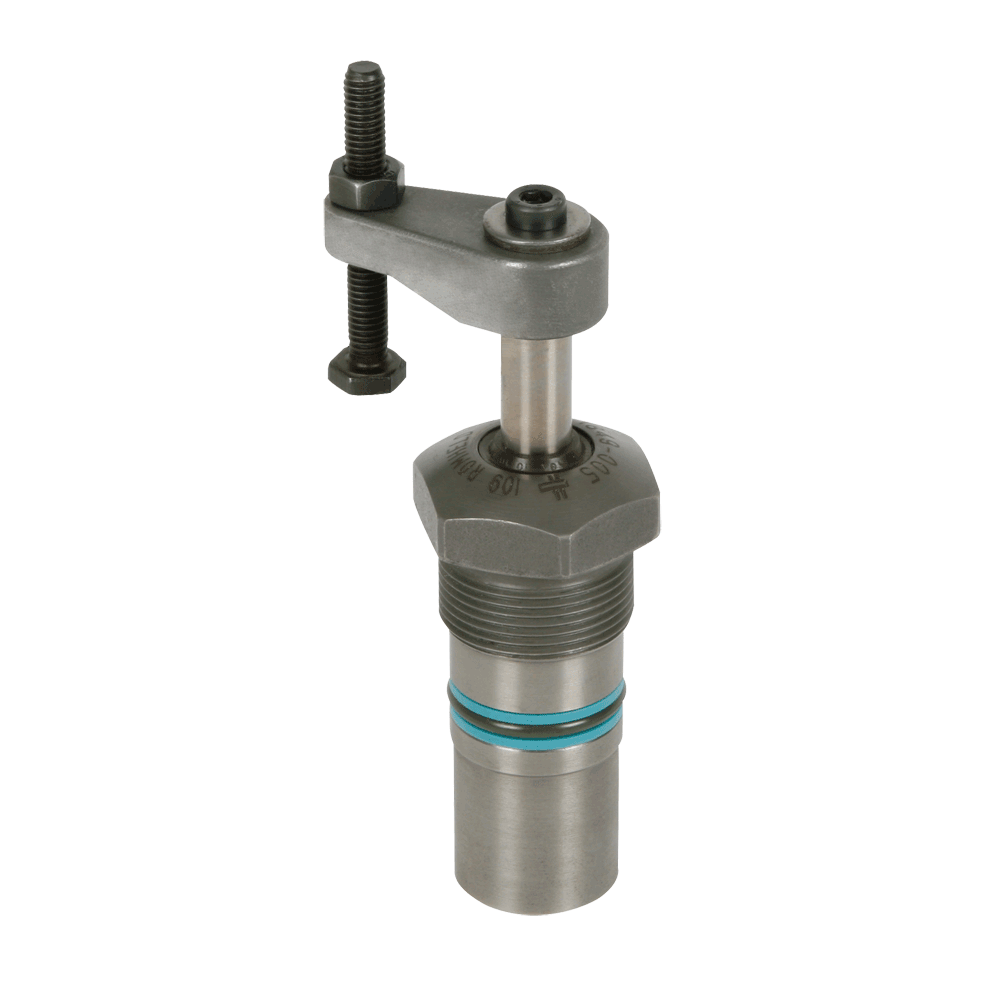

ROEMHELD Compact Swing Clamps – Threaded Cartridge, Single Acting, B1.849 (1 Series)

ROEMHELD Power Workholding

Save to My Project

What is this?

Product Information

5000 psi max

Single Acting

Swing Clamps utilize a sturdy helical-cam mechanism to swing the clamping arm clear for unrestricted loading. The Compact Swing Clamps shown here are extremely small, economical clamps suitable for many applications. Clamping arm can be mounted to start its 90° swing from any position within 360°. The threaded-cartridge version is designed specifically for space-saving manifold mounting.

Available in one clamp size, single acting (shown here) or double acting (see Related Products below), with a choice of clockwise, counterclockwise, or zero° swing. Available with 45° and 60° swing angles by special order. Clamping force at 5000 psi for single-acting clamps with a standard arm:

450 lbs (1 series)

Documents

B1.849

Data Sheet

Clamping Action

Diagram showcasing the application of Roemheld Compact Swing Clamps Threaded Cartridge Single Acting B1849 1 Series

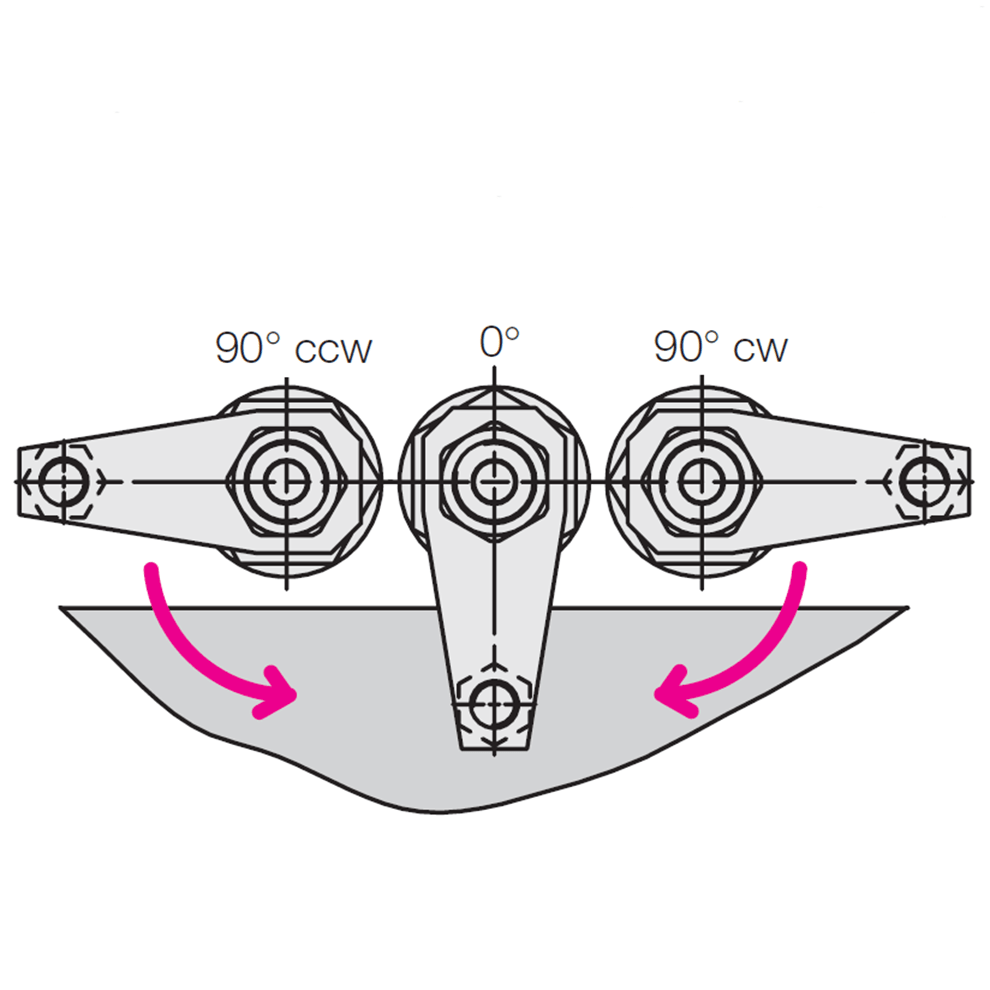

Available with clockwise, counterclockwise, or zero° swing

Swing Clamps are pull-type cylinders where part of the total stroke is used to swing the piston, and the remaining stroke is available as the clamping range. Applying fluid pressure swings arm 90° over workpiece then clamps down. The single-acting version shown here has a fast, totally dependable spring return that lifts the arm, then swings it back 90° for loading/unloading.

Design Considerations

Due to their small size, these Swing Clamps do not have overload protection; therefore the swing motion must not be restricted in any way. Be sure to adjust the contact bolt so that the clamp completes its full swing stroke and starts its clamping stroke before contacting the workpiece. To be safe, use low operating pressure during initial setup.

Do not exceed maximum fluid flow rate in table. For extended clamp life a simple flow-control valve may be required if the fixture is powered by a high-flow-rate power source and only contains a few clamps. Clamping time should be at least one second.

Mounting & Fluid Supply

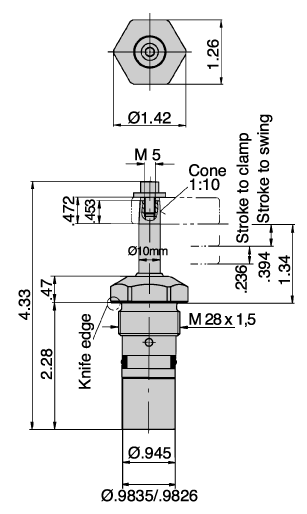

Screw clamp into fixture up to the body hex. Threaded-cartridge clamps have O-ring seals on their outside diameter, so they require a precision mounting hole. Carefully follow hole-preparation instructions in the drawings. Fluid passages must be drilled exactly as shown in the drawings. Do not use NPT fittings.

Clamping Arm

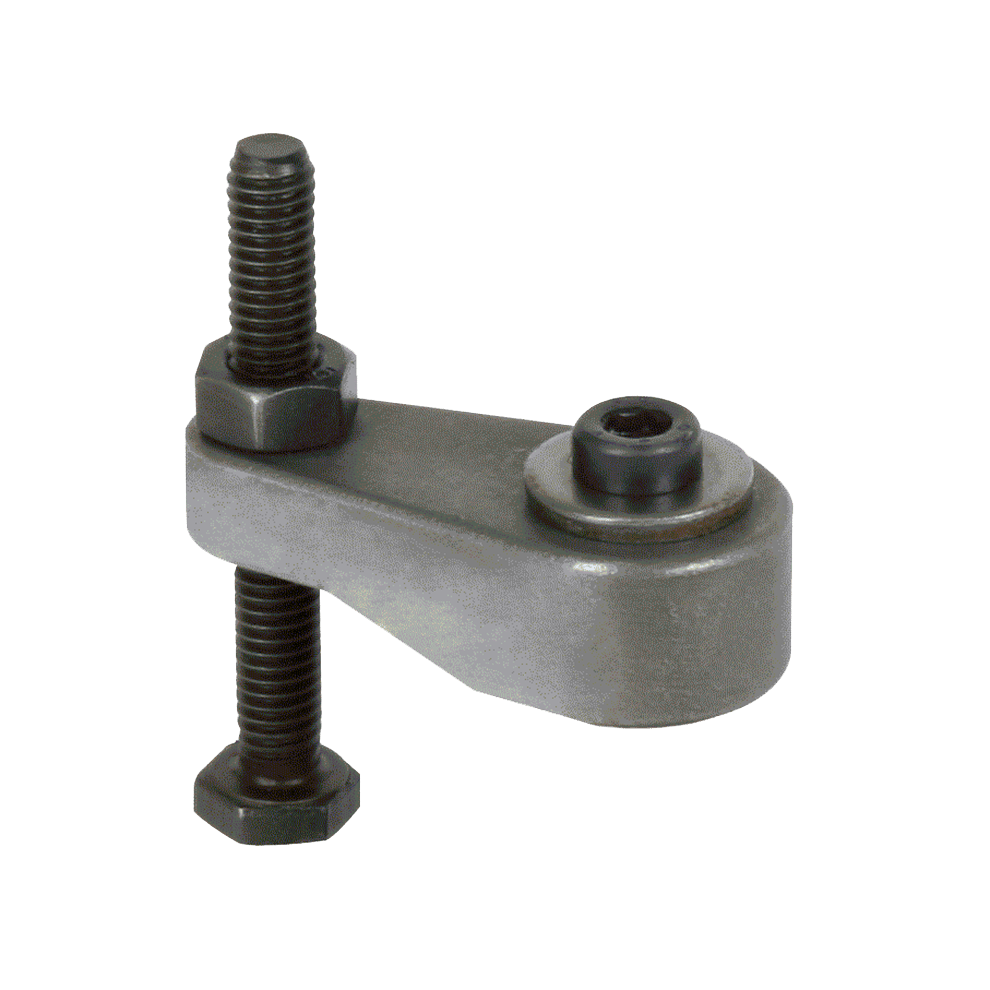

Standard Clamping Arm

5000 psi max

Order clamping arm, screw, and washer separately. Clamping arm includes a contact bolt.

Material

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

ITEM	MATERIAL	HEAT TREAT	FINISH
Piston	Alloy steel	-	nitrated for wear and corrosion resistance
House	Mild Steel	-	Nitrated for wear and corrosion resistance
Piston Rod Wiper	Viton	-	-
