ROEMHELD Long Clamping Arms for Air-Powered Swing Clamps

ROEMHELD Power Workholding

Save to My Project

What is this?

Product Information

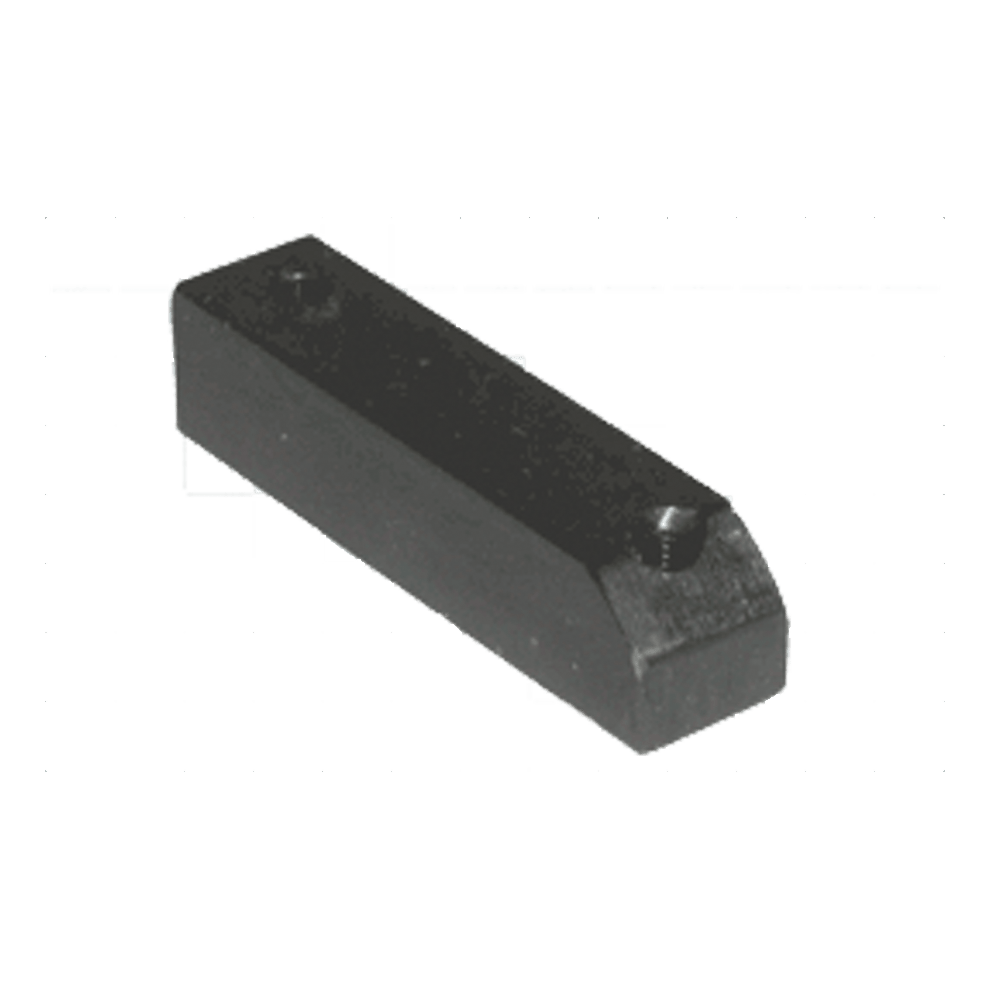

ROEMHELD Long Clamping Arms for Air-Powered Swing Clamps Part # CLR-3548-356 Carr Lane Mfg.®

Long blank clamping arm for Air-Powered Swing Clamps. This blank arm can be easily tapped or otherwise modified to make a custom clamping arm. Available in five sizes, to fit all five sizes of Air-Powered Swing Clamps.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Documents

J7.201

Data Sheet

Mounting

Mount arm on the tapered piston rod at desired orientation, then fasten with the socket-head cap screw and washer included with Swing Clamp

Material

MATERIAL	HEAT TREAT	FINISH
Steel	-	Black Oxide

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

ROEMHELD Long Clamping Arms for Air-Powered Swing Clamps

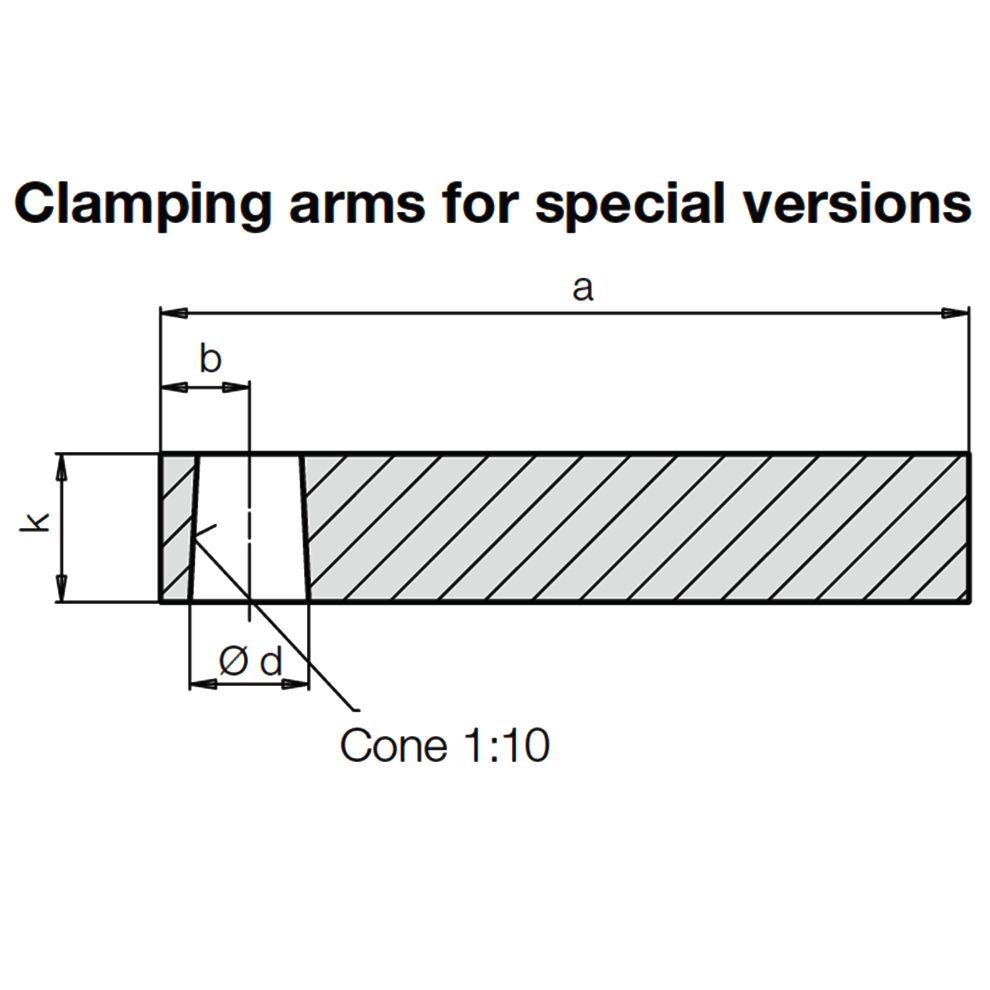

PART NO.	FITS CLAMP SIZE	A (mm)	B (mm)	D DIA +0.05 (mm)	K (mm)
CLR-3548-355	3 Series	62	7	7.85	12
CLR-3548-356	4 Series	72	10	11.85	16
CLR-3548-357	5 Series	95	12	15.85	20
CLR-3548-353	6 Series	116	14	19.85	25
CLR-3548-358	7 Series	143	18	24.85	30
