ROEMHELD Time-Dependent Sequence Valves, C2.9545 (Manifold Mounted)

ROEMHELD Power Workholding

Save to My Project

What is this?

Product Information

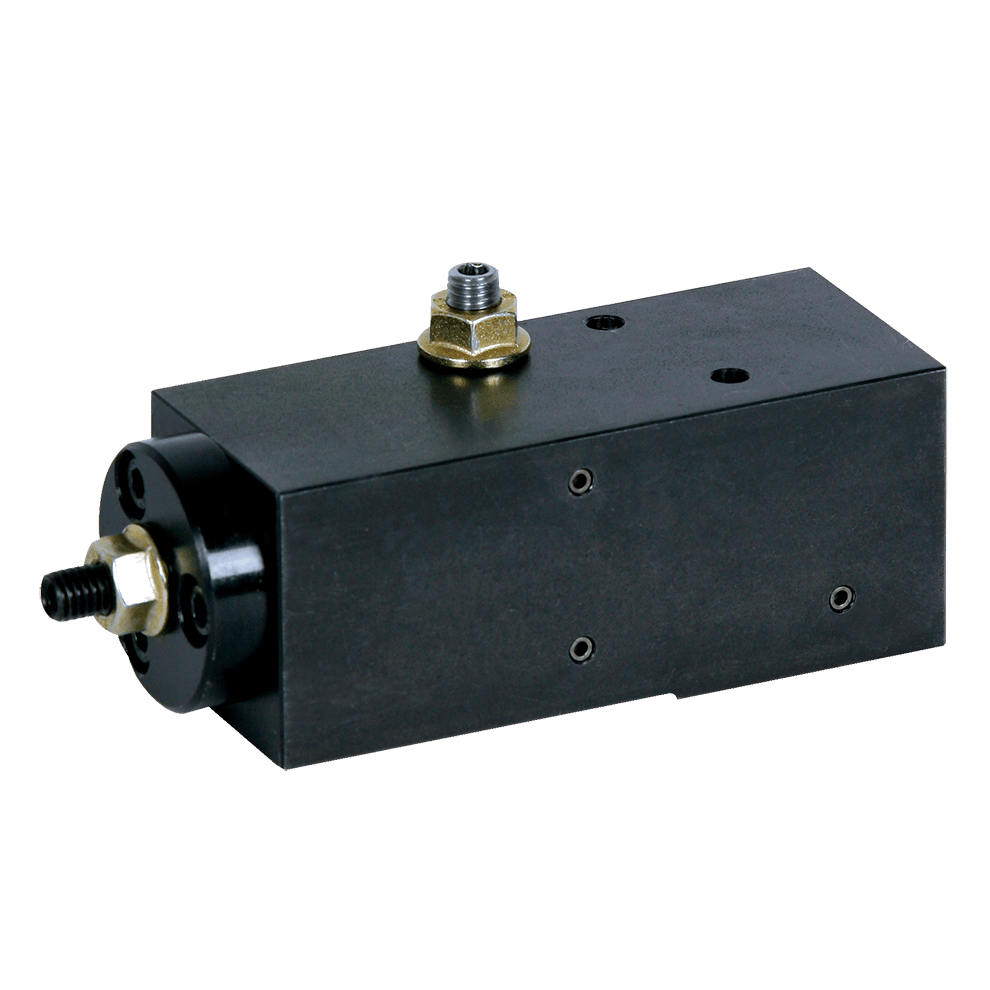

ROEMHELD Time-Dependent Sequence Valves, C2.9545 (Manifold Mounted) Part # CLR-2954-620 Carr Lane Mfg.®

3600 psi max

This valve is especially suitable for clamping fixtures where sequencing must be accomplished within a specified time. This sequence valve provides an adjustable, time-dependent switching delay that is independent of hydraulic pressure. Sequence time is adjustable with a range that depends on the model selected and on system operating pressure, as shown in the table below. Parallel or series connection of several valves is possible. The compact design facilitates installation directly on the clamping fixture using manifold mounting.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Documents

C2.9545

Data Sheet

ROEMHELD Time-Dependent Sequence Valves, C2.9545 (Manifold Mounted)

QUANTITY	PART NO.	TIME-DELAY ADJUSTMENT RANGE AT 3675 psi	TIME-DELAY ADJUSTMENT RANGE AT 2200 psi	TIME-DELAY ADJUSTMENT RANGE AT 1000 psi	MINIMUM OPERATING PRESSURE (psi)	WEIGHT (lbs)
	CLR-2954-620	.9 to 7.5 seconds	2 to 11.5 seconds	6 to 25 seconds	440	3.3
	CLR-2954-630	.5 to 3.5 seconds	1.2 to 6 seconds	3 to 13.5 seconds	440	3.3
