FEATURES: Tubing Clamps are used to fasten hydraulic tubing to a machining fixture. These clamps provide additional strength and rigidity, increasing the life of the installation. Tubing Clamps should be used to support long tubing runs (4 feet maximum spacing) and exposed tubing bends.

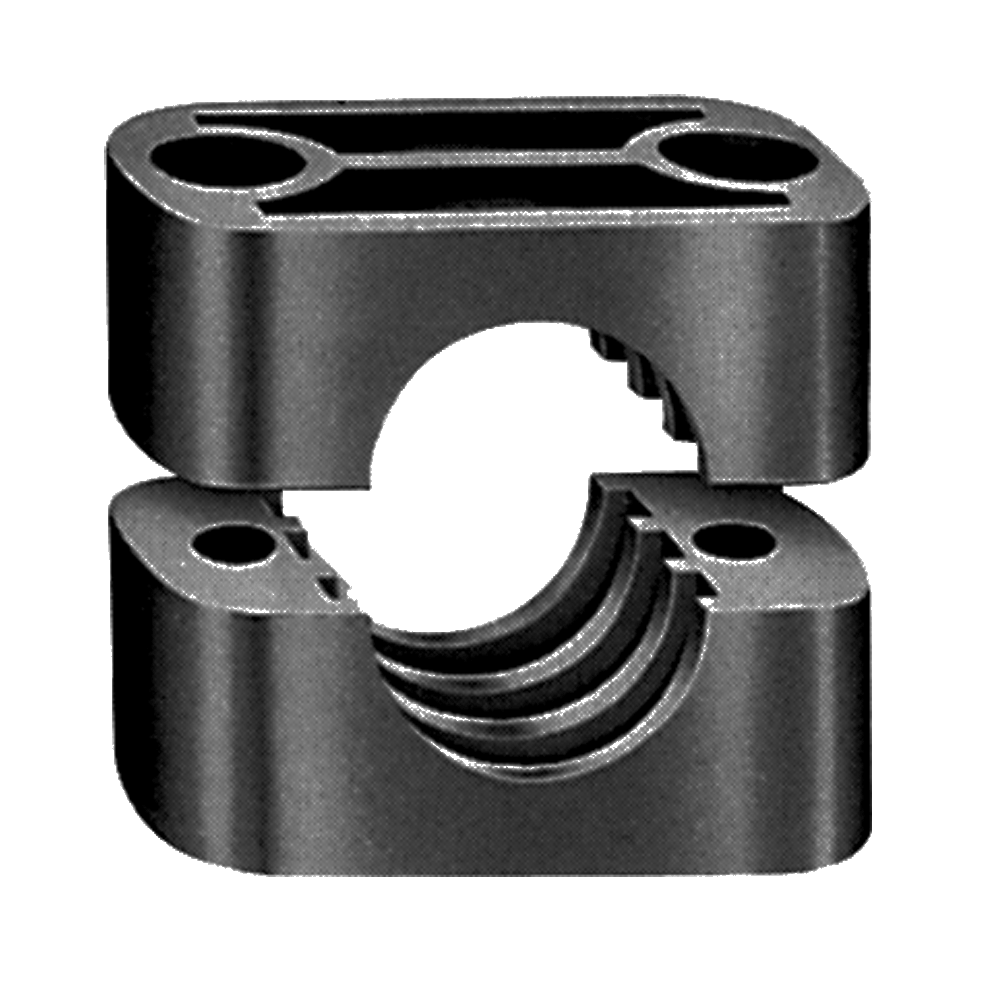

SINGLE-TUBE CLAMPS: Each Tubing Clamp for a single tube consists of three part numbers:
CLR-3300-892-TA Two-piece clamp body
CLR-3300-600-TA Weld-on mounting plate
CLR-3300-225-TA Mounting screw
For stack mounting, order the following three part numbers for each additional Tubing Clamp underneath the top one:
CLR-3300-892-TA Two-piece clamp body
CLR-3300-604-TA Stack-mounting screw
CLR-3300-335-TA Stack-mounting clip
TWIN-TUBE CLAMPS: Twin-tube clamps are especially useful for double-acting systems. Each Tubing Clamp for twin tubes consists of four part numbers:
CLR-3300-891-TA Two-piece clamp body
CLR-3300-607-TA Weld-on mounting plate
CLR-3300-609-TA Washer
CLR-3300-225-TA Mounting screw
For stack mounting, order the following three part numbers for each additional Tubing Clamp underneath the top one:
CLR-3300-891-TA Two-piece clamp body
CLR-3300-613-TA Stack-mounting screw
CLR-3300-615-TA Stack-mounting clip
DESIGN CONSIDERATIONS AND SAFETY PRECAUTIONS: Never use tubing lines to lift fixtures.
MATERIAL: Clamp body > Polypropylene.
