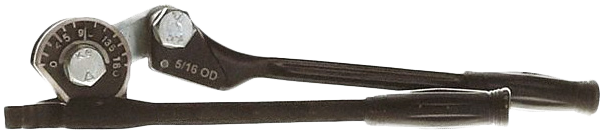

Tubing Benders

ROEMHELD Power Workholding

Save to My Project

What is this?

Product Information

This simple, effective tool is designed especially for workholding applications. Can be used to make bends ranging from 90° to 180°, as well as double bends in two planes. Bend centerline radius is only .85", to allow tubing installation in tight spots. Tubing Bender consists of a stationary roller mounted on a cast iron body, and a swinging roller mounted on a removable steel handle. The only other equipment required is a vise. For 5/16" O.D. tubing.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Operation

Clamp body of Tubing Bender in a vise. Remove handle assembly to position tubing against the stationary roller, then reinstall handle assembly. Swing handle until the desired bend angle is achieved.

Tubing Installation

Tubing pieces should be prepared for installation by following these steps:

1) Cut tubing to length with a Tubing Cutter, CLR-100-TL, or hacksaw.

2) File or sand tube end square.

3) Deburr both O.D. and I.D., preferably with a Deburring Tool, CLR-200-TL.

4) Clean with solvent to remove chips, dirt, and rust-preventative coating.

5) Blow clean with a shop air line.

6) If using 37°-flare fittings, flare tubing with a Flaring Tool, CLR-300-TL. Note: a Tube End fitting, consisting of a nut and sleeve, must be placed on each tube end before flaring is completed.

7) Bend as required, preferably with a Tubing Bender, CLR-400-TL.

Tubing Benders

QUANTITY	PART NO.	TUBING O.D. SIZE
	CLR-401-TL	1/4"
	CLR-402-TL	5/16"
	CLR-403-TL	3/8"

Check Price & Availability
