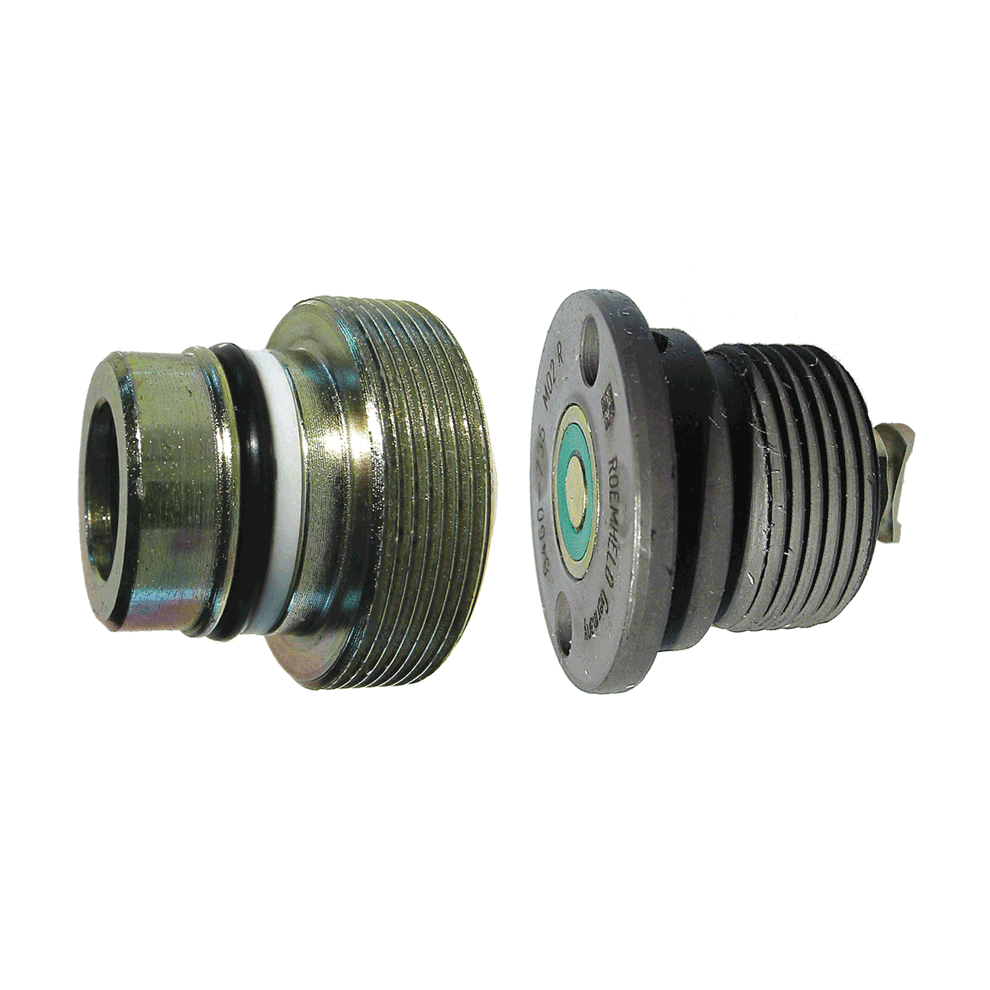

Threaded Coupling Elements, F9.430

ROEMHELD Power Workholding

Save to My Project

What is this?

Product Information

Threaded Coupling Elements, F9.430 Part # CLR-0460-638 Carr Lane Mfg.®

7250 psi max

Please see Documents tab for information.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Documents

F9.430

Data Sheet

Threaded Coupling Elements, F9.430

Version for Coupling with or without Pressure

PART NO.	SIZE	ITEM	NOMINAL ID (mm)	A BODY THREAD
CLR-0460-727	1	Threaded Nipple	3	M24x1.5
CLR-0460-725	1	Coupling Mechanism	3	M20x1.5
CLR-0460-638	2	Threaded Nipple	5	M28x1.5
CLR-0460-735	2	Coupling Mechanism	5	M24x1.5

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Version for Coupling Only without Pressure

PART NO.	SIZE	ITEM	NOMINAL ID (mm)	A BODY THREAD
CLR-0460-731	1	Threaded Nipple	3	M24x1.5
CLR-0460-728	1	Threaded Nipple with VSV Relief Valve	3	M24x1.5
CLR-0460-730	1	Coupling Mechanism	3	M20x1.5
CLR-0460-740	2	Threaded Nipple	5	M28x1.5
CLR-0460-637	2	Threaded Nipple with VSV Relief Valve	5	M28x1.5
CLR-0460-736	2	Coupling Mechanism	5	M24x1.5
