ROEMHELD Contact Bolts with Groove and Coupling Pin

ROEMHELD Power Workholding

Save to My Project

What is this?

Product Information

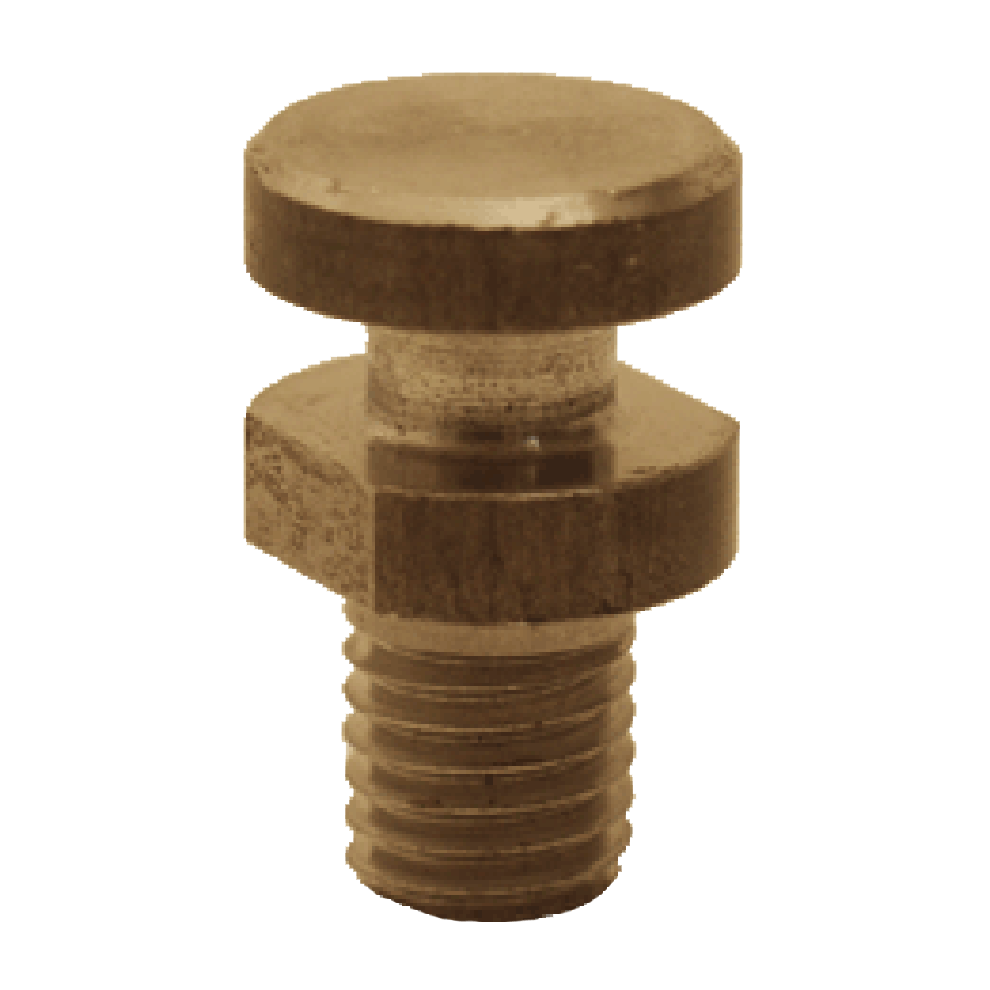

ROEMHELD Contact Bolts with Groove and Coupling Pin Part # CLR-3614-066-CB Carr Lane Mfg.®

These Contact Bolts have a radial groove for a coupling pin. This allows flexible attachment of tooling, and allows pulling as well as pushing. For use primarily on Block Cylinders. Furnished with coupling pin.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Material

MATERIAL	HEAT TREAT	FINISH
1144 Steel or Equivalent	Heat Treated Rc 50-60	Black Oxide

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

ROEMHELD Contact Bolts with Groove and Coupling Pin

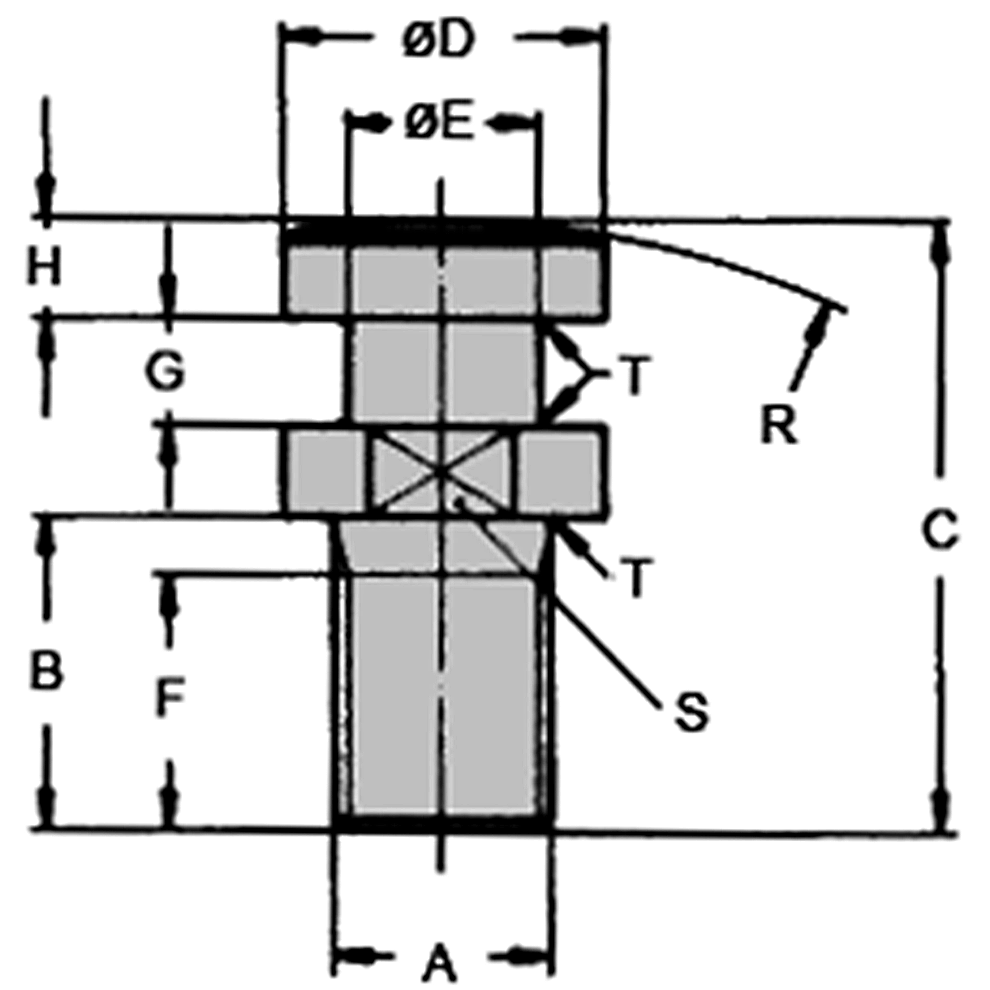

PART NO.	A	B (mm)	C (mm)	D DIA (mm)	E DIA (mm)	F (mm)	G (mm)	H (mm)	R (mm)	S (mm)	T (mm)
CLR-3614-070-CB	M10	14.5	32	20	10	12	6.5	5.5	320	17	1
CLR-3614-091-CB	M12	14.5	32	20	10	12	6.5	5.5	320	17	1
CLR-3614-236-CB	M16	20	40	25	14	14	7	6	400	22	1.5
CLR-3614-237-CB	M20	28	56	33	17	22	10	10	500	27	1.5
CLR-3614-065-CB	M27	39	75	40	23	32	13	12	630	36	2
CLR-3614-066-CB	M30	35	89	52	28	25	19	19	800	46	2.5
