ROEMHELD Contact Bolts (Radius) Part # CLR-406-CB Carr Lane Mfg.®

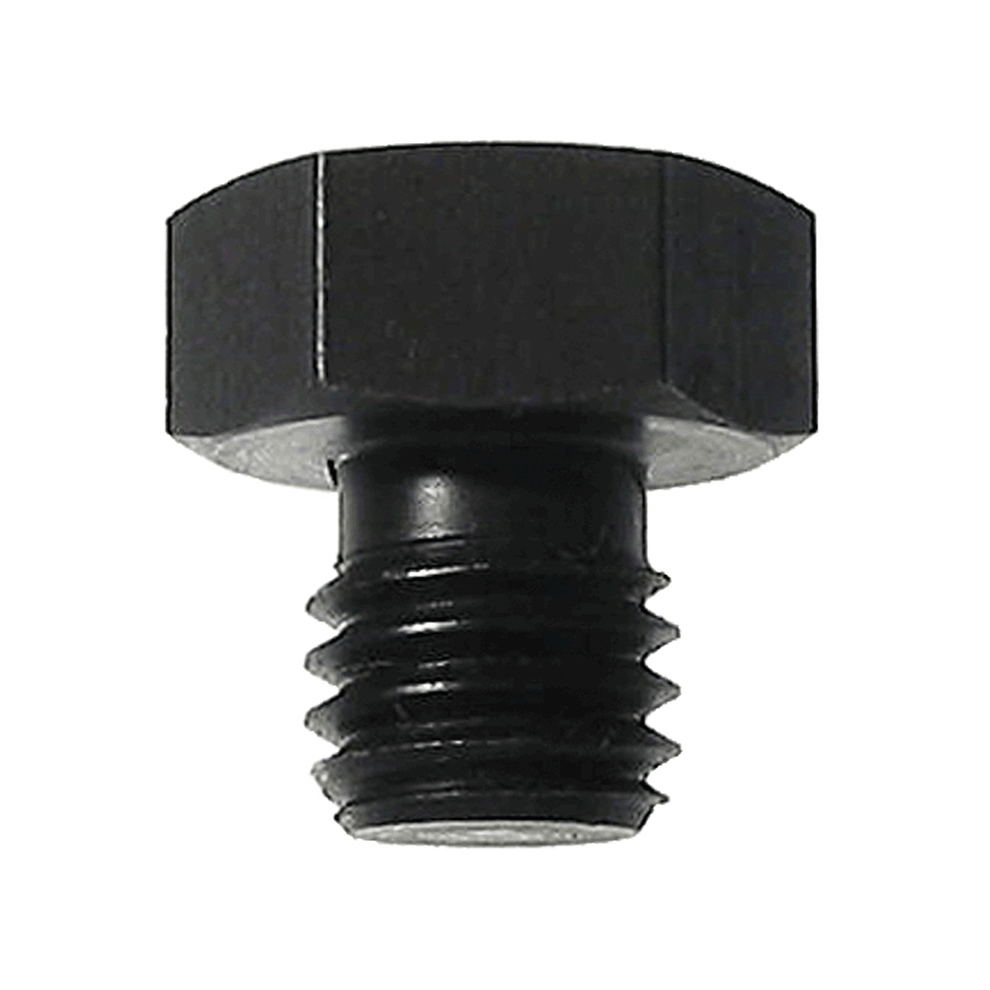

Radius Contact Bolts are for general-purpose use as contact points on Threaded-Body Push Clamps, Block Cylinders, Threaded Cylinders, and other workholding clamps. These hardened steel bolts protect the cylinder rod and provide a contact point to hold the workpiece securely. The radius-head version shown here provides firm contact even if the workpiece's surface is somewhat uneven. Available in thread sizes from 1/4-20 to 1"-8 (M5 to M48 in metric).

Material

MATERIAL	HEAT TREAT	FINISH
1144 Steel or Equivalent	Heat Treated Rc 50-60	Black Oxide

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

ROEMHELD Contact Bolts (Radius)

Inch

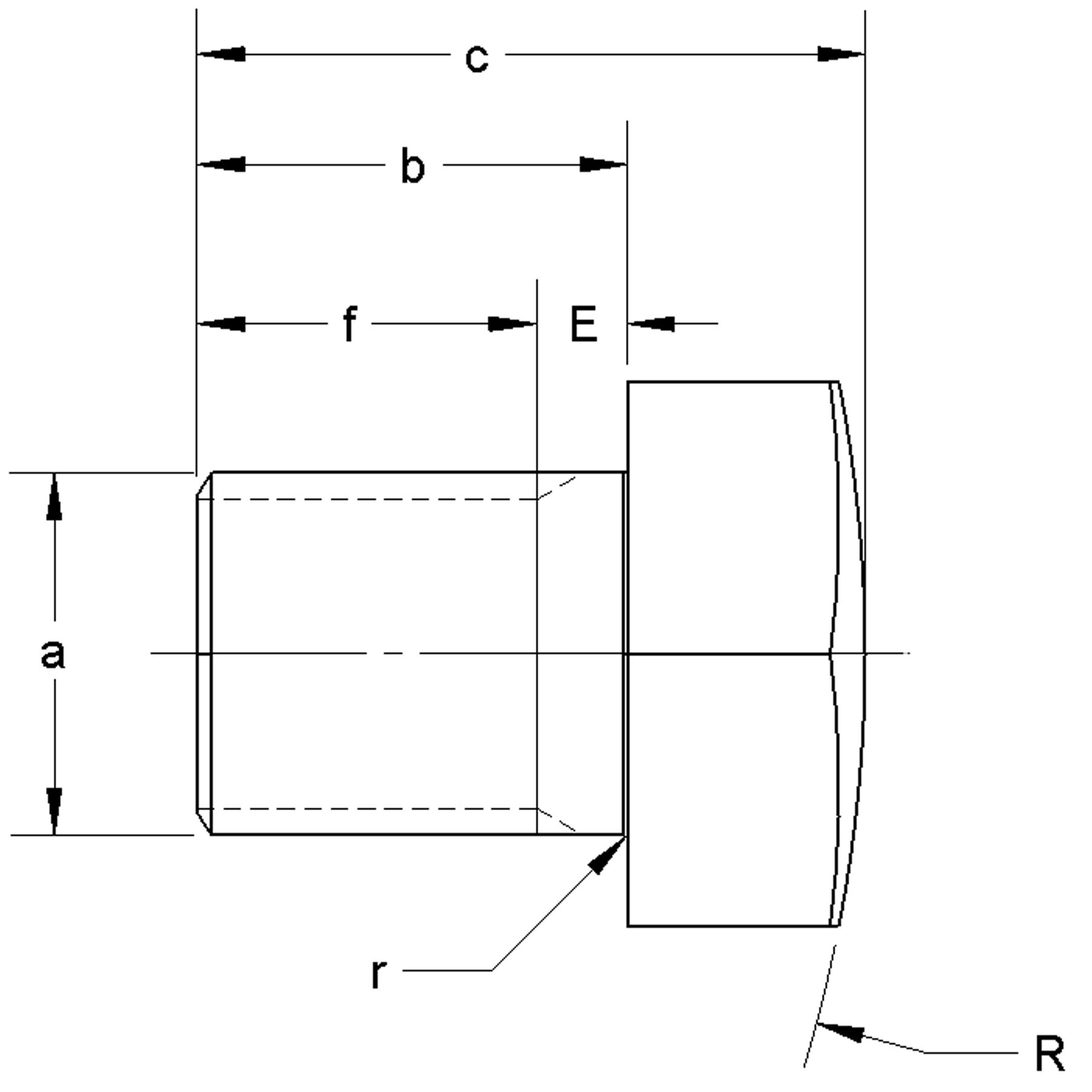

PLEASE NOTE: "E" dimension represents a radiused relief cut instead of threads.

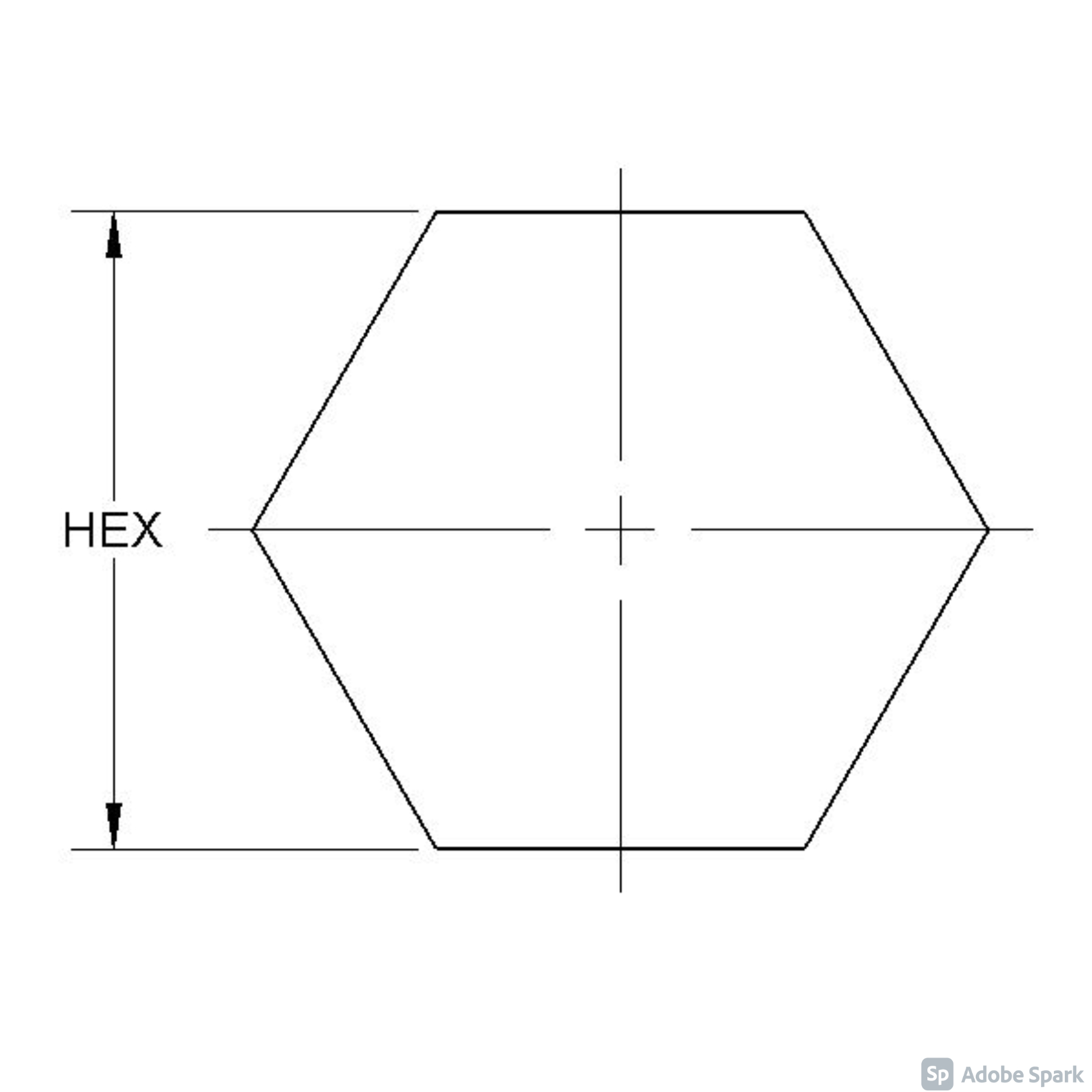

QUANTITY	Part Number	a (in)	b (in)	c (in)	f (in)	R (in)	r (in)	E (in)	HEX (in)
	CLR-401-CB	1/4-20	.250	.375	.150	.78	-	.100	7/16
	CLR-400-CB	1/4-20	.375	.781	.275	.78	-	.100	7/16
	CLR-404-CB	5/16-18	.312	.500	.201	1.00	-	.111	1/2
	CLR-402-CB	5/16-18	.375	.781	.264	.78	-	.111	1/2
	CLR-403-CB	3/8-16	.500	.875	.375	1.37	-	.125	9/16
	CLR-405-CB	1/2-13	.500	.875	.346	1.75	-	.154	3/4
	CLR-406-CB	5/8-11	.781	1.187	.599	2.37	-	.182	15/16
	CLR-408-CB	3/4-10	1.000	1.375	.800	2.37	-	.200	1 1/8
	CLR-409-CB	1-8	1.187	1.843	.937	3.90	-	.250	1 1/2

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Metric

Sizes marked * are not heat treated.

PLEASE NOTE: "E" dimension on Metric contact bolts do not represent a relief cut under the head and they are not fully threaded.

QUANTITY	Part Number	for nom. cyl. Ø D (mm)	a (mm)	b (mm)	c (mm)	f (mm)	R (mm)	r (mm)	E (mm)	HEX (mm)
	CLR-3614-027-CB	12	M 5	9	19	7	20	.3	-	8
	CLR-3614-016-CB	16	M 6	10	20	8	20	.3	-	10
	CLR-3614-039-CB	12/16	M 6	6	9.5	5	20	.3	-	10	*
	CLR-3614-001-CB	25	M 8	10	20	8	20	.3	-	11
	CLR-3614-002-CB	25	M 10	12	22	9.5	35	.3	-	17
	CLR-3614-038-CB	20/25	M 8	8	13	6	25	.3	-	13	*
	CLR-3614-028-CB	32/40	M 12	12	22	9	45	.3	-	19
	CLR-3614-003-CB	40	M 16	20	30	16	60	.3	-	24
	CLR-3614-015-CB	50	M 20	25	35	20	60	.3	-	30
	CLR-3614-017-CB	63	M 27	30	47	24	100	.3	-	41
	CLR-3614-018-CB	80	M 30	35	54	29	100	.3	-	46
	CLR-3614-019-CB	100	M 42	45	71	38	140	.3	-	65
	CLR-3614-020-CB	125	M 48	60	90	50	250	1.6	-	75
