ROEMHELD Compact Clamps – Top Flange, Cartridge Type, B1.827 Part # CLR-3548-1072 Carr Lane Mfg.®

3600 psi max

Double Acting

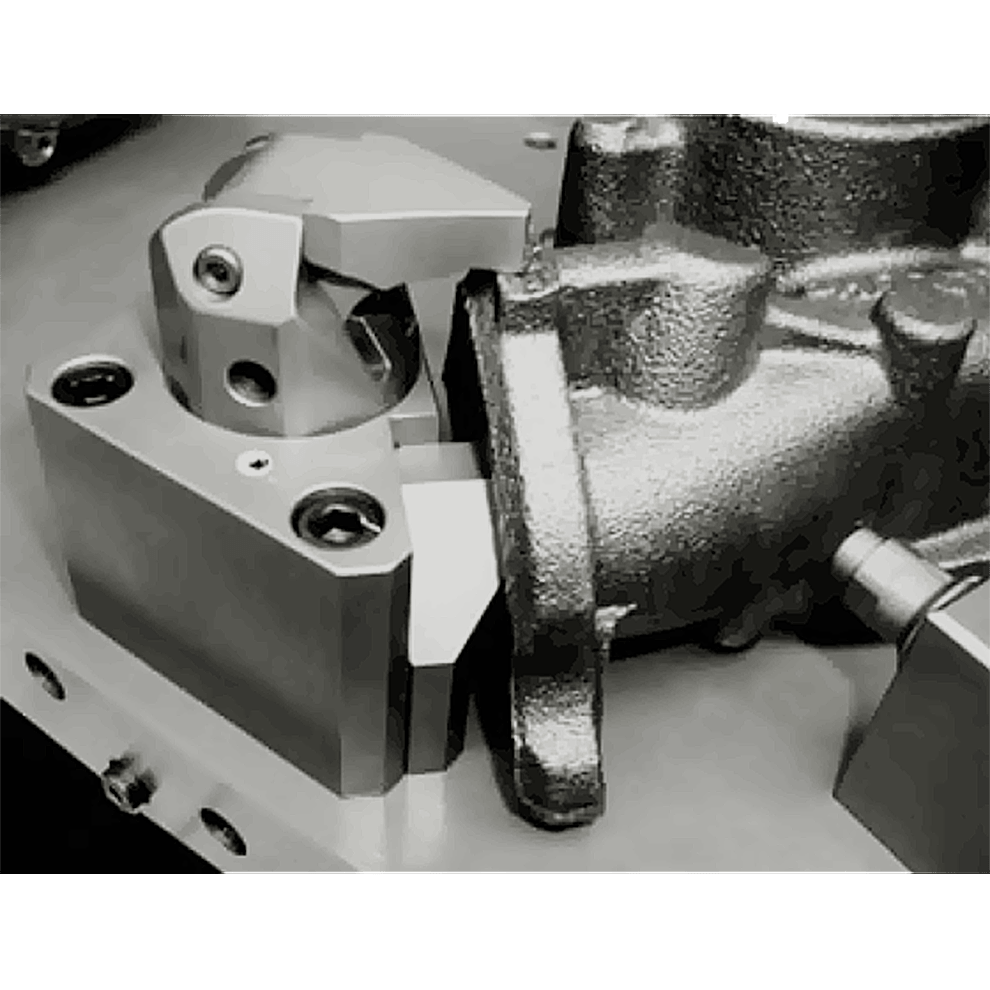

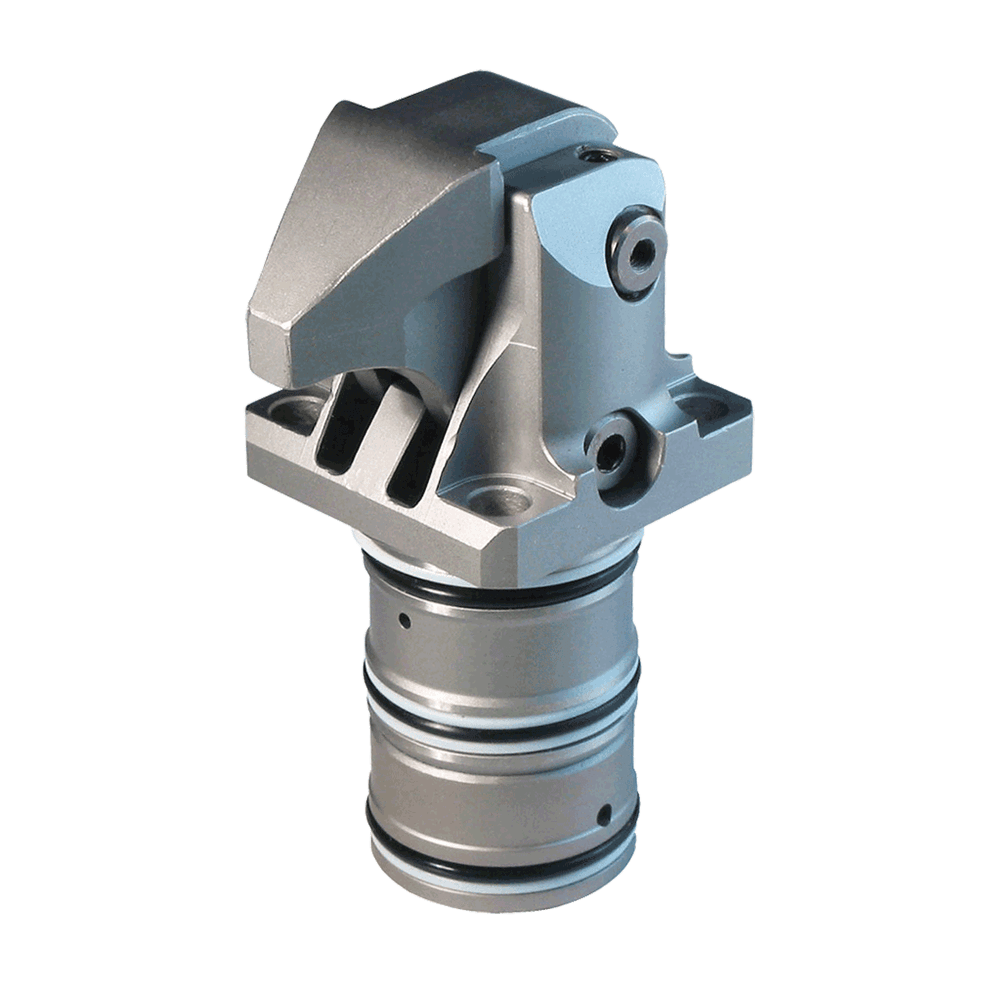

Compact Clamps have a sturdy lever mechanism that pivots into clamping position. These clamps are extremely compact both in footprint and overall height. The clamping lever pivots a full 90° for clear loading even when using custom long clamping levers. Ideal for clamping in narrow recesses. The top-flange cartridge-type version shown here is designed specifically for space-saving manifold mounting. Integrated pneumatic clamping monitoring allows checking for workpiece presence and clamping pressure.

Available in four clamp sizes, double acting only. Clamping force at 3600 psi with standard clamping arm:

560 lbs

900 lbs

1680 lbs

2360 lbs

Application Information

Documents

B1827_en_0823

Compact Clamp

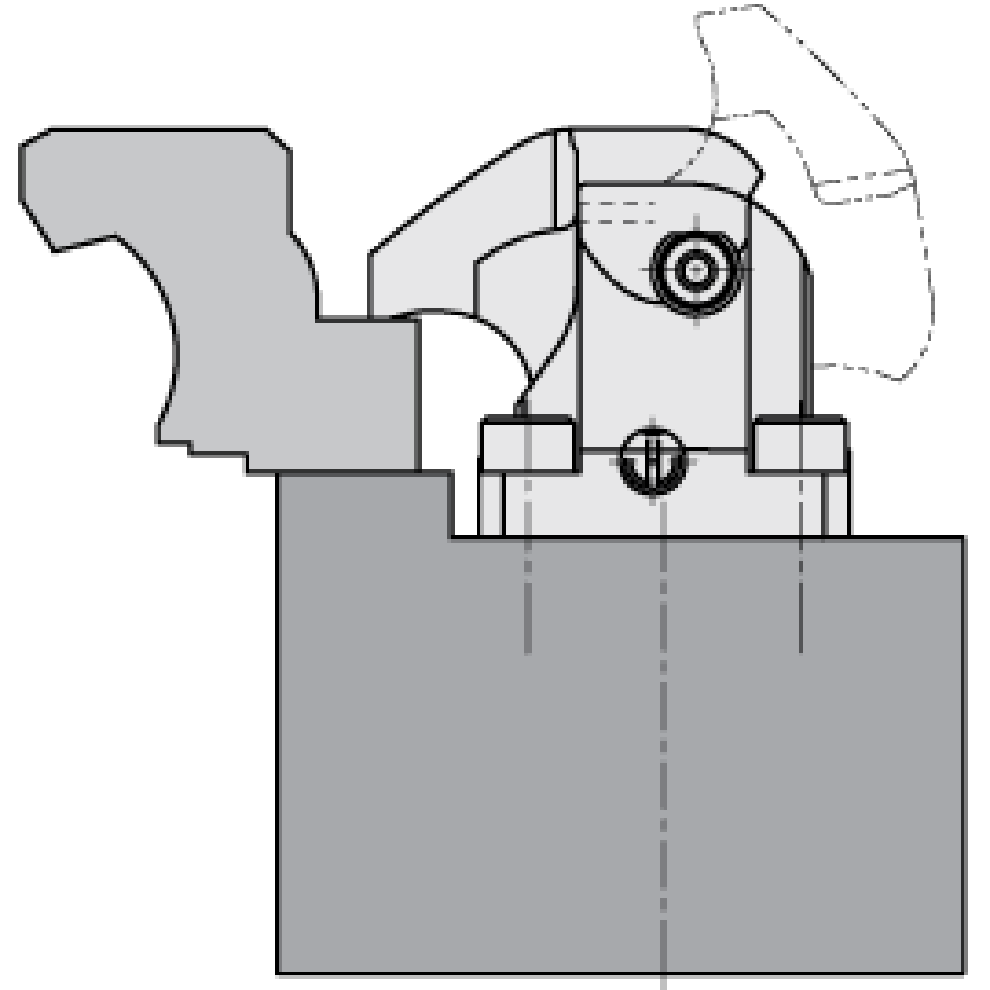

Clamping Action

Diagram showcasing the application of Roemheld Compact Clamps Top Flange Cartridge Type B1827

Applying fluid pressure to the A (clamping) port advances the piston, which pivots the clamping arm into position. Switching pressure to the B (unclamping) port positively retracts the piston and the attached clamping arm.

Mounting & Fluid Supply

Diagram showcasing the application of Roemheld Compact Clamps Top Flange Cartridge Type B1827

Version 1

With Bottom Cover

for Open-Bore Mounting

Manifold mounting in a bored throughhole, or with accessory mounting block using standard fittings.

Diagram showcasing the application of Roemheld Compact Clamps Top Flange Cartridge Type B1827

Version 2

Without Bottom Cover

for Closed-Bore Mounting

Manifold mounting in a closed pockethole

Fasten clamp with four socket-head cap screws. Threaded-cartridge clamps have O-ring seals on their outside diameter, so they require a precision mounting hole. Carefully follow hole-preparation instructions in the drawings. Fluid passages must be drilled exactly as shown. Do not use NPT fittings.

Clamping Arm

Diagram showcasing the application of Roemheld Compact Clamps Top Flange Cartridge Type B1827

Choice of standard short clamping arm (Left) or long blank clamping arm for customization (Right).

Material

MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Steel	-	-	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

ROEMHELD Compact Clamps – Top Flange, Cartridge Type, B1.827

Version with Bottom Cover, for Open-Bore Mounting

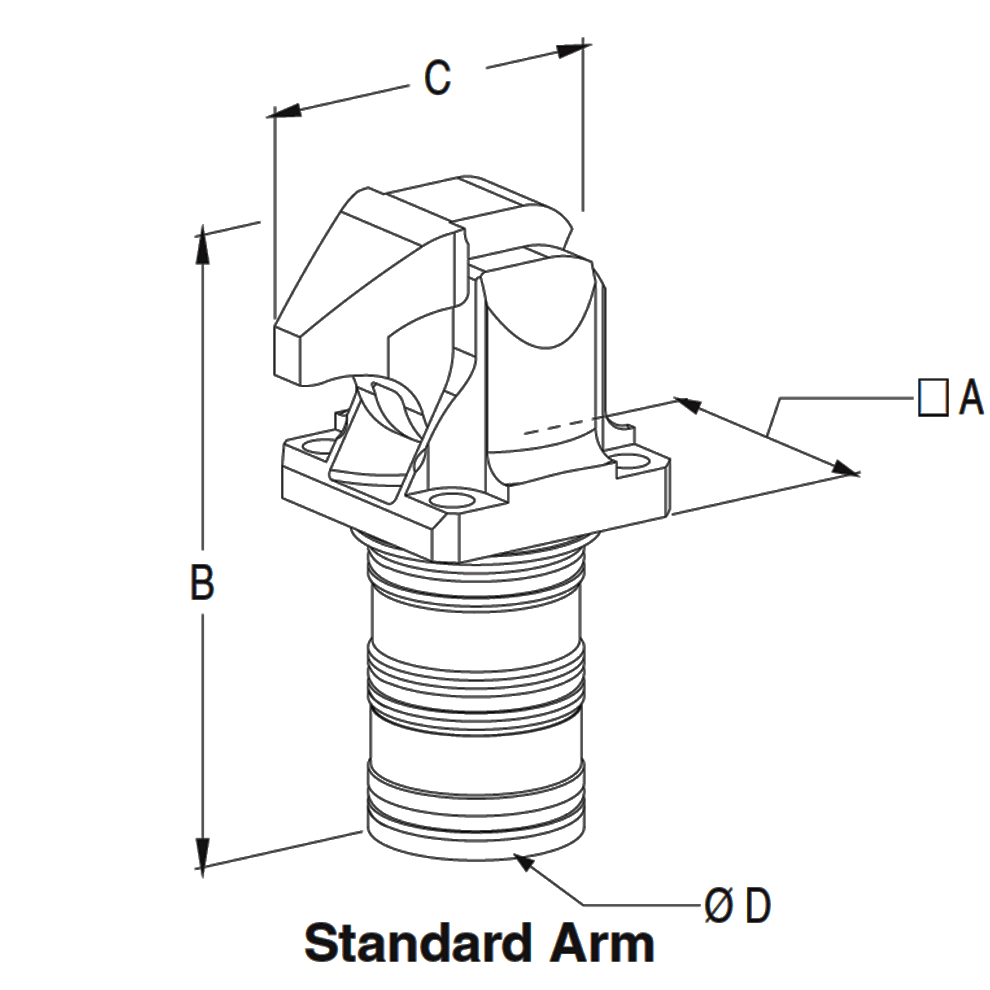

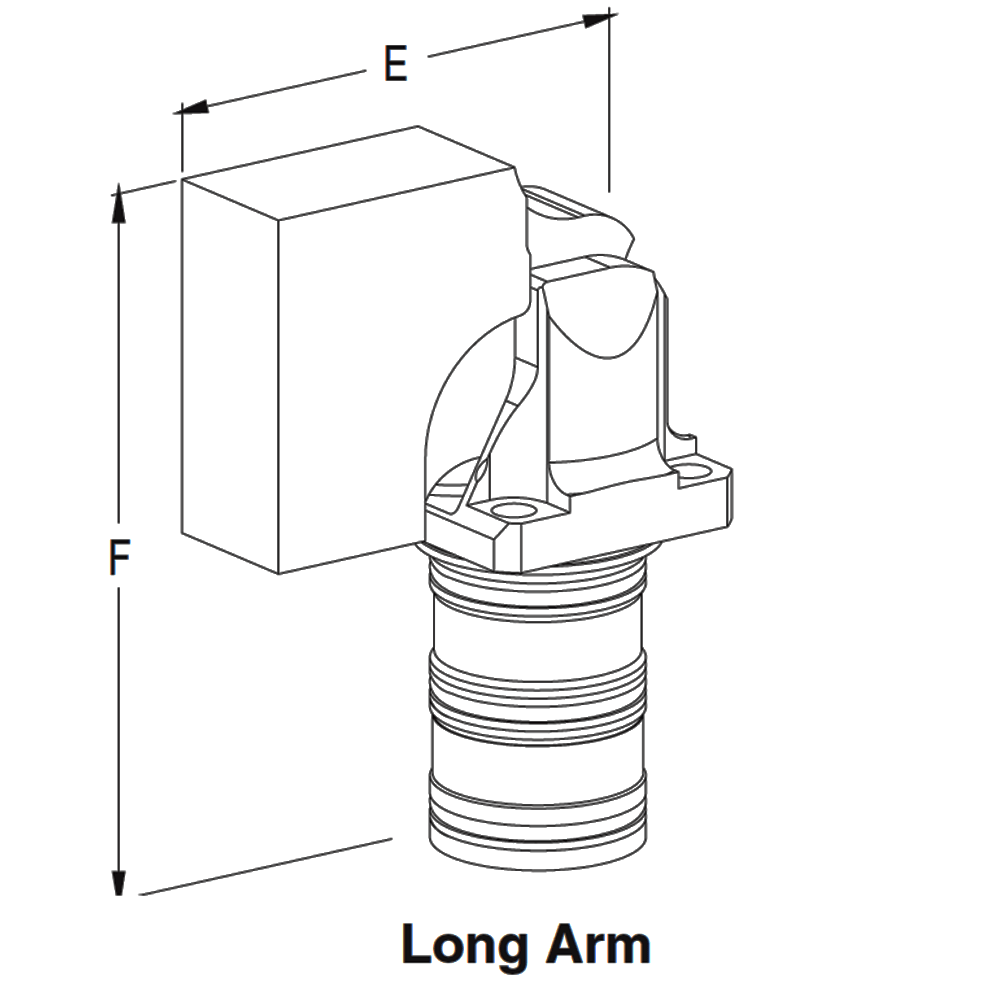

QUANTITY	PART NO.	CLAMP SIZE	ARM TYPE	MAXIMUM CLAMPING FORCE (lbs)	MAXIMUM CLAMPING FORCE (kN)	A (mm)	B (mm)	C (mm)	D DIA (mm)	E (mm)	F (mm)	CLAMPING STROKE (mm)
	CLR-1801-110	1	Standard	560	2.5	34	76.9	44	25	---	---	4.5
	CLR-1801-130	1	Long	560	2.5	34	---	---	25	76	85.9	4.5
	CLR-1802-110	2	Standard	900	4	42	84.5	49	32	---	---	4.5
	CLR-1802-130	2	Long	900	4	42	---	---	32	81	91.5	4.5
	CLR-1803-110	3	Standard	1680	7.5	48	99	60.5	40	---	---	7
	CLR-1803-130	3	Long	1680	7.5	48	---	---	40	91.5	99	7
	CLR-1804-110	4	Standard	2360	10.5	55	105.5	64	45	---	---	8.5
	CLR-1804-130	4	Long	2360	10.5	55	---	---	45	95	105.5	8.5

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Version without Bottom Cover, for Closed-Bore Mounting

QUANTITY	PART NO.	CLAMP SIZE	ARM TYPE	MAXIMUM CLAMPING FORCE (lbs)	MAXIMUM CLAMPING FORCE (kN)	A (mm)	B (mm)	C (mm)	D DIA (mm)	E (mm)	F (mm)	CLAMPING STROKE (mm)
	CLR-1801-111	1	Standard	560	2.5	34	69.5	44	25	---	---	4.5
	CLR-1801-131	1	Long	560	2.5	34	---	---	25	76	78.5	4.5
	CLR-1802-111-EXD	2	Standard	900	4	42	75.5	49	32	---	---	4.5
	CLR-1802-131	2	Long	900	4	42	---	---	32	81	82.5	4.5
	CLR-1803-111-EXD	3	Standard	1680	7.5	48	91.1	60.5	40	---	---	7
	CLR-1803-131	3	Long	1680	7.5	48	---	---	40	91.5	91.1	7
	CLR-1804-111-EXD	4	Standard	2360	10.5	55	95.8	64	45	---	---	8.5
	CLR-1804-131	4	Long	2360	10.5	55	---	---	45	95	95.8	8.5

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Accessory – Spare Clamping Arm

QUANTITY	PART NO.	CLAMP SIZE	ARM LENGTH
	CLR-3548-1121	1	Standard
	CLR-3548-1071	1	Long
	CLR-3548-1122	2	Standard
	CLR-3548-1072	2	Long
	CLR-3548-1123	3	Standard
	CLR-3548-1073	3	Long
	CLR-3548-1124	4	Standard
	CLR-3548-1074	4	Long

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Accessory – Mounting Block

QUANTITY	PART NO.	CLAMP SIZE	LENGTH (mm)	WIDTH (mm)	HEIGHT (mm)
	CLR-3468-381	1	60	45	40
	CLR-3468-382	2	65	50	44
	CLR-3468-383	3	78	58	50
	CLR-3468-384	4	85	63	52
