ROEMHELD Block Extending Clamps, B1.8233

ROEMHELD Power Workholding

Save to My Project

What is this?

Product Information

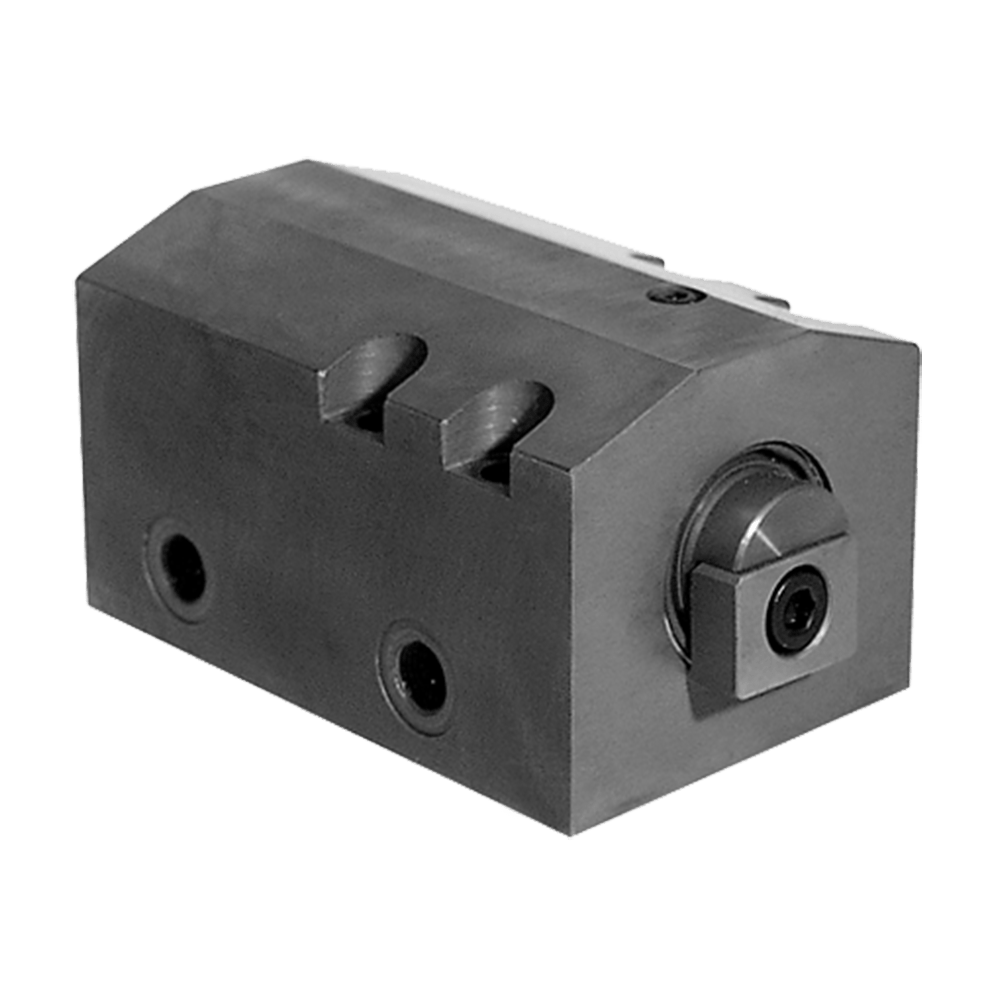

ROEMHELD Block Extending Clamps, B1.8233 Part # CLR-1824-410A Carr Lane Mfg.®

1000 or 1500 psi max

Double Acting

Standard or Self-Locking

Lever arm slides straight forward into clamping position, then pivots to clamp down. Clamping direction can be set to any angle within 360°. Ideal for clamping in slots or bored holes. Clamping insert can be easily removed and adapted to different workpieces. Rugged design uses a wedge assembly to provide high force with excellent protection against flood coolant and chips (the interior of the clamp is hermetically sealed to the exterior). Lever arm is designed to resist side forces at the clamping point. Dual mounting capability: all clamps are ready for standard fittings and manifold mounting.

Available in two sizes, each in either a standard or self-locking version, double acting only. Maximum clamping force (standard version):

3000 Lbs at 1000psi (Size 1)

7000 Lbs at 1500psi (Size 2)

Maximum clamping force (self-locking version):

1700 Lbs at 1000psi (Size 1)

4200 Lbs at 1500psi (Size 2)

Documents

B1.8233

Data Sheet

Clamping Action

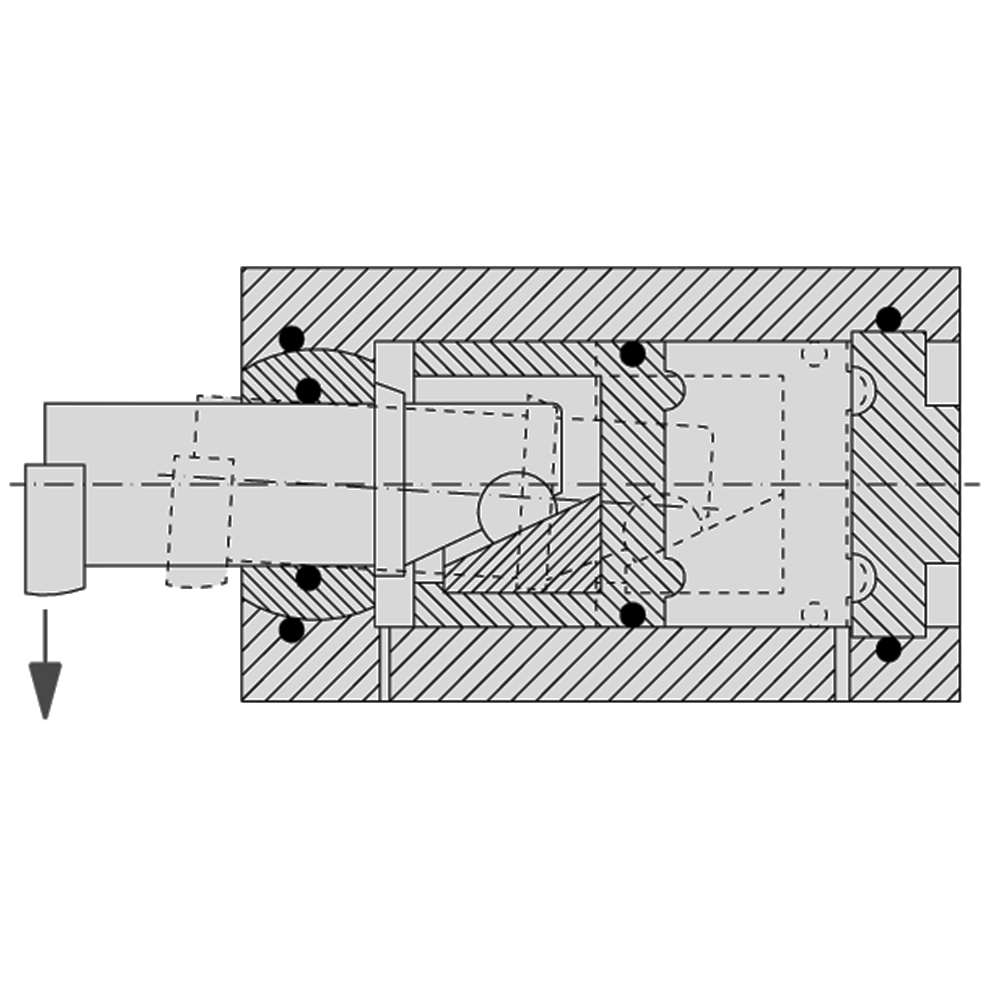

Diagram showcasing the application of Roemheld Block Extending Clamps B18233

Applying fluid pressure to the A (clamping) port advances the piston, which in turn advances the clamping arm via a wedge assembly until the arm reaches a positive stop, then pivots the arm to apply clamping force. Switching pressure to the B (unclamping) port positively retracts the piston and the clamping arm.

Clamping direction can be set to any angle within 360°. To change the angle, fully retract the clamping lever, then turn the cylinder cover to the desired angle.

Optional Self-Locking Version

The self-locking version of this clamp is particularly suited for clamping on pallets which are disconnected from their power source. Full clamping force is maintained on disconnected pallets or if fluid pressure drops for any reason. Please note: maximum clamping force is lower on the self-locking version due to its shallower, self-locking wedge angle.

Design Considerations

The linear motion of the clamping lever over the workpiece should not be impeded; otherwise the arm will not contact its positive stop and will exert transverse force on the workpiece after contact. If clamps with the optional self-locking feature are decoupled from their power source after clamping, e.g. on pallets, we recommend installing an accumulator in order to guarantee a re-clamping effect.

Mounting & Fluid Supply

Fasten using four socket-head cap screws. Two 1/8" BSPP ports (clamp size 1) or two 1/4" BSPP ports (clamp size 2), A for clamping, B for unclamping. For optional manifold mounting, use the A and B O-ring ports underneath the clamp instead of the standard ports. Unscrew the sealing plug in each O-ring port and install a CLR-3000-343-SW O-ring (also install a CLR-811-F Port Plug in each 1/8" BSPP port, or a CLR-810-F Port Plug in each 1/4" BSPP port). Do not use NPT fittings.

Material

MATERIAL	HEAT TREAT	FINISH
Steel	-	-

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.
