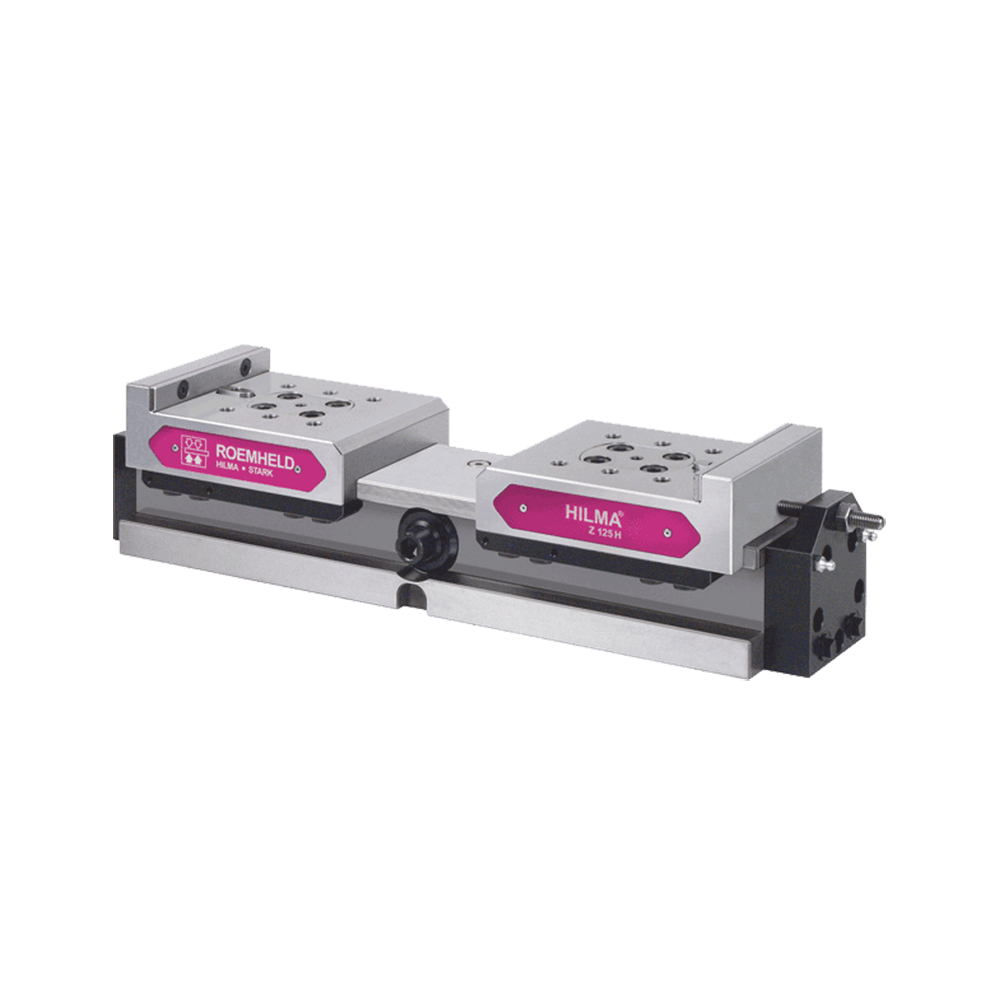

ROEMHELD Z100H Concentric Hydraulic Vises (100mm)

ROEMHELD Precision Vises,ROEMHELD Power Workholding

Save to My Project

What is this?

Product Information

ROEMHELD Z100H Concentric Hydraulic Vises (100mm) Part # CLRH-9-3542-0201-VS Carr Lane Mfg.®

Concentric Clamping

Hydraulic Operation

Double Acting

2200 psi max at clamping port

290 psi max at unclamping port

Please see Documents tab for information.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Documents

WS7.3540

Data Sheet

ROEMHELD Z100H Concentric Hydraulic Vises (100mm)

Standard Version

QUANTITY	PART NO.	JAW WIDTH (mm)	MAXIMUM CLAMPING FORCE (lbs)	MAXIMUM CLAMPING FORCE (kN)	MAXIMUM OPERATING PRESSURE AT CLAMPING PORT (psi)	MAXIMUM OPERATING PRESSURE AT UNCLAMPING PORT (psi)	CLAMPING STROKE PER SLIDE (mm)	MAXIMUM JAW OPENING (mm)
	CLRH-9-3542-0101-VS	100	3600	16	2200	290	22	316

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Version with Proximity Switches

QUANTITY	PART NO.	JAW WIDTH (mm)	MAXIMUM CLAMPING FORCE (lbs)	MAXIMUM CLAMPING FORCE (kN)	MAXIMUM OPERATING PRESSURE AT CLAMPING PORT (psi)	MAXIMUM OPERATING PRESSURE AT UNCLAMPING PORT (psi)	CLAMPING STROKE PER SLIDE (mm)	MAXIMUM JAW OPENING (mm)
	CLRH-9-3542-0201-VS	100	3600	16	2200	290	22	316

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
