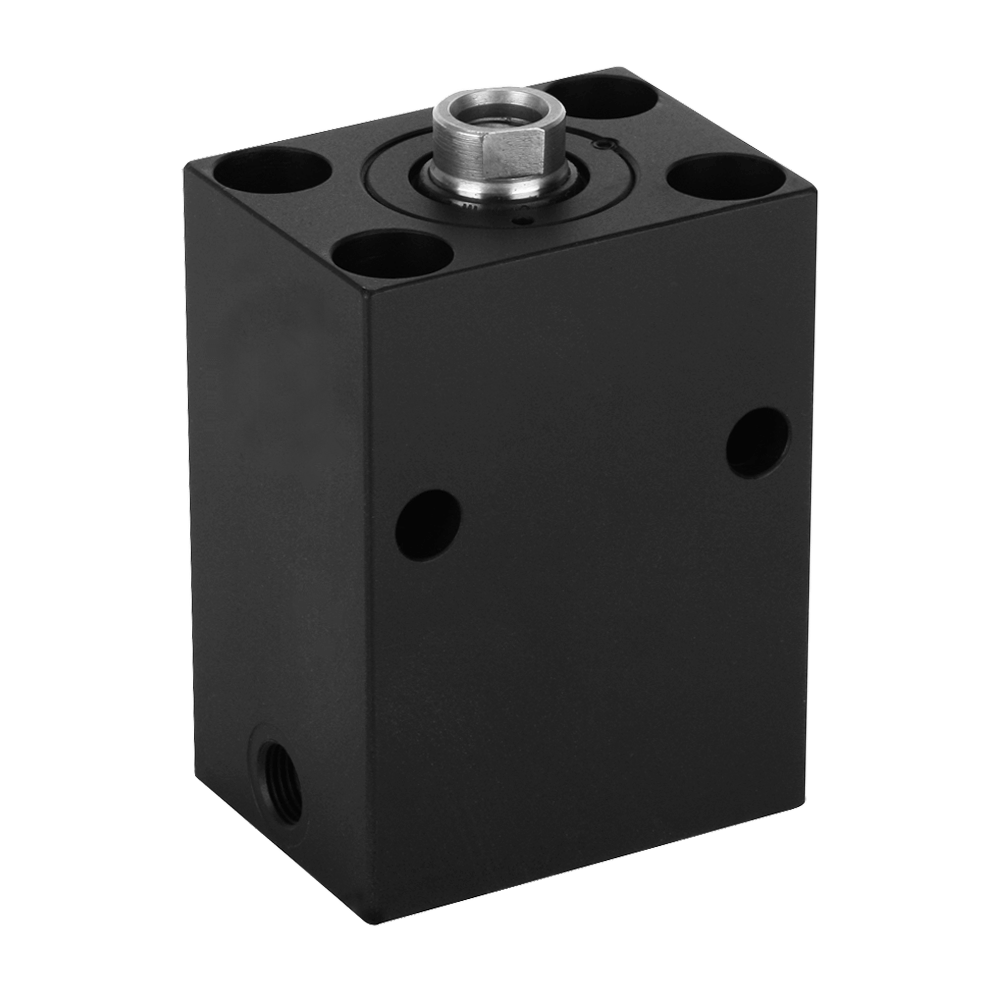

ROEMHELD Block Cylinders – Single Acting, B1.5091 Part # CLR-1516-005 Carr Lane Mfg.®

7250 psi max

Single Acting

Compact design with many applications. Easy to mount on flat surfaces, horizontally or vertically. Excellent for punching, pressing, and assembly operations, with very high forces available.

Available in six inch sizes and eight metric sizes, with a choice of stroke length. Push force at 7250 psi:

2250 Lbs

5500 Lbs

9000 Lbs

14100 Lbs

22100 Lbs

35100 Lbs

56600 Lbs

88100 Lbs

Documents

B1.5091

Data Sheet

Clamping Action

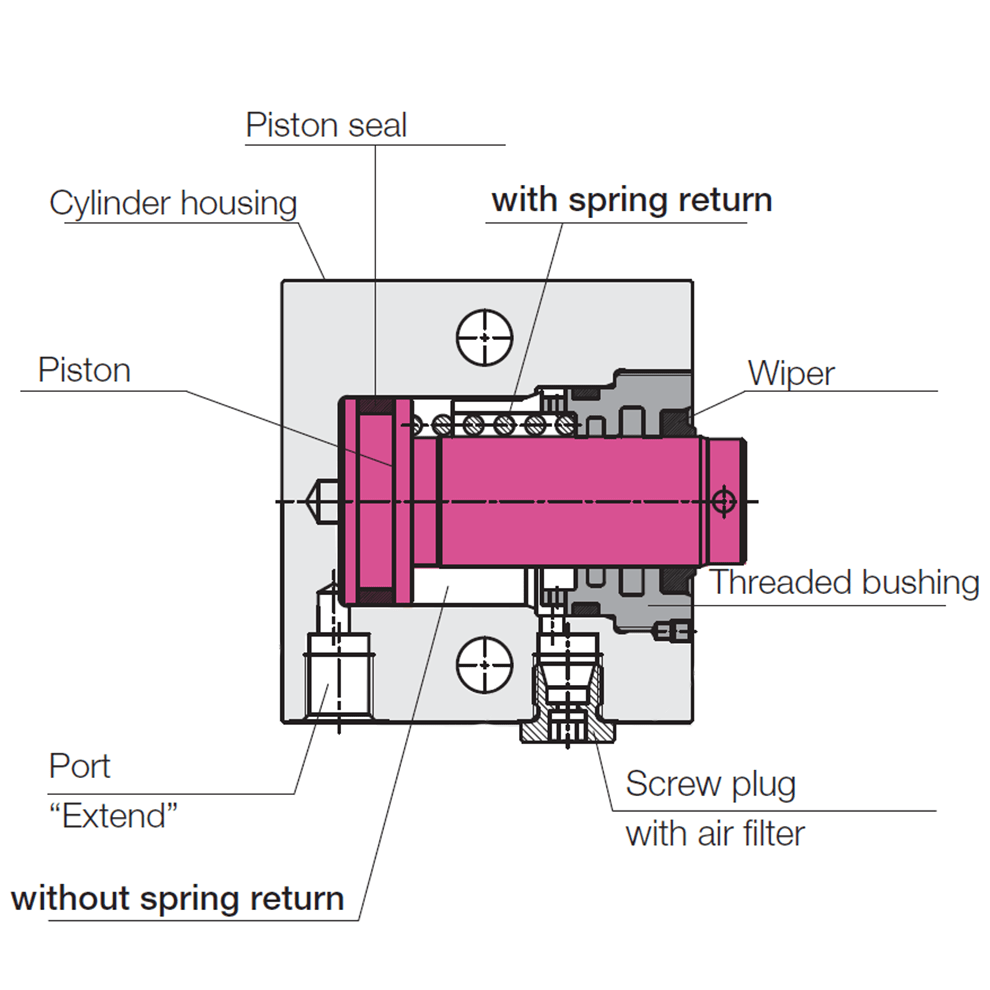

Diagram showcasing the application of Roemheld Block Cylinders Single Acting B15091

Applying fluid pressure to the A port advances the plunger. Spring return.

Mounting & Fluid Supply

Several possible mounting methods: 1) insert four socket-head cap screws from the plunger end, through the four counterbored holes parallel to the plunger; 2) insert four socket-head cap screws from the bottom end, through the four counterbored holes parallel to the plunger; 3) insert two socket-head cap screws through the two broad-side holes perpendicular to the plunger. Method 3 requires that the Block Cylinder be backed up for pressures over 2300 psi by a rectangular strip or dowel pins with a height at least 1/3 of the B dimension.

1/4" BSPP port (two for double-acting clamps). Larger sizes have 1/2" BSPP ports. Do not use NPT fittings.

Optional Viton Seals

For high-temperature applications (212° to 300° F), we offer Viton seals in all sizes. Viton seals have a slightly shorter service life. Please contact factory for more information.

Material

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

ITEM	MATERIAL	HEAT TREAT	FINISH
Plunger	Steel	Case Hardened	-
Body	Steel	-	Black Oxide

ROEMHELD Block Cylinders – Single Acting, B1.5091

Short Stroke (Inch)

QUANTITY	PART NO.	MAXIMUM CLAMPING FORCE (lbs)	MAXIMUM CLAMPING FORCE (kN)	STROKE (mm)	A WIDTH (mm)	B DEPTH (mm)	L HEIGHT (mm)	J THREAD x DEPTH (mm)
	CLR-1511-705	2250	10	8	60	35	62	1/4-20 x 12
	CLR-1513-705	5500	24.5	8	65	45	71	3/8-16 x 15
	CLR-1514-705	9000	40.2	10	75	55	85	1/2-13 x 15
	CLR-1515-705	14100	62.8	10	85	63	89	5/8-11 x 25
	CLR-1516-705	22100	98.5	12	100	75	100	3/4-10 x 30
	CLR-1517-705	35100	156	12	125	95	116	1"-8 x 40

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Long Stroke (Inch)

QUANTITY	PART NO.	MAXIMUM CLAMPING FORCE (lbs)	MAXIMUM CLAMPING FORCE (kN)	STROKE (mm)	A WIDTH (mm)	B DEPTH (mm)	L HEIGHT (mm)	J THREAD x DEPTH (mm)
	CLR-1511-725	2250	10	20	60	35	97	1/4-20 x 12
	CLR-1513-725	5500	24.5	20	65	45	101	3/8-16 x 15
	CLR-1514-725	9000	40.2	20	75	55	110	1/2-13 x 15
	CLR-1515-725	14100	62.8	20	85	63	114	5/8-11 x 25
	CLR-1516-725	22100	98.5	20	100	75	125	3/4-10 x 30
	CLR-1517-735	35100	156	25	125	95	149	1"-8 x 40

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Short Stroke (Metric)

QUANTITY	PART NO.	MAXIMUM CLAMPING FORCE (lbs)	MAXIMUM CLAMPING FORCE (kN)	STROKE (mm)	A WIDTH (mm)	B DEPTH (mm)	L HEIGHT (mm)	J THREAD x DEPTH (mm)
	CLR-1511-005	2250	10	8	60	35	62	M6 x 12
	CLR-1513-005	5500	24.5	8	65	45	71	M10 x 15
	CLR-1514-005	9000	40.2	10	75	55	85	M12 x 15
	CLR-1515-005	14100	62.8	10	85	63	89	M16 x 25
	CLR-1516-005	22100	98.5	12	100	75	100	M20 x 30
	CLR-1517-005	35100	156	12	125	95	116	M27 x 40
	CLR-1518-005	56600	252	12	160	120	131	M30 x 40
	CLR-1519-005	88100	392	12	200	150	145	M42 x 60

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Long Stroke (Metric)

QUANTITY	PART NO.	MAXIMUM CLAMPING FORCE (lbs)	MAXIMUM CLAMPING FORCE (kN)	STROKE (mm)	A WIDTH (mm)	B DEPTH (mm)	L HEIGHT (mm)	J THREAD x DEPTH (mm)
	CLR-1511-025	2250	10	20	60	35	97	M6 x 12
	CLR-1513-025	5500	24.5	20	65	45	101	M10 x 15
	CLR-1514-025	9000	40.2	20	75	55	110	M12 x 15
	CLR-1515-025	14100	62.8	20	85	63	114	M16 x 25
	CLR-1516-025	22100	98.5	20	100	75	125	M20 x 30
	CLR-1517-035	35100	156	25	125	95	149	M27 x 40
	CLR-1518-045	56600	252	32	160	120	179	M30 x 40
	CLR-1519-045	88100	392	32	200	150	205	M42 x 60
