ROEMHELD Block Cylinders – Double Acting, B1.5094

ROEMHELD Power Workholding

Save to My Project

What is this?

Product Information

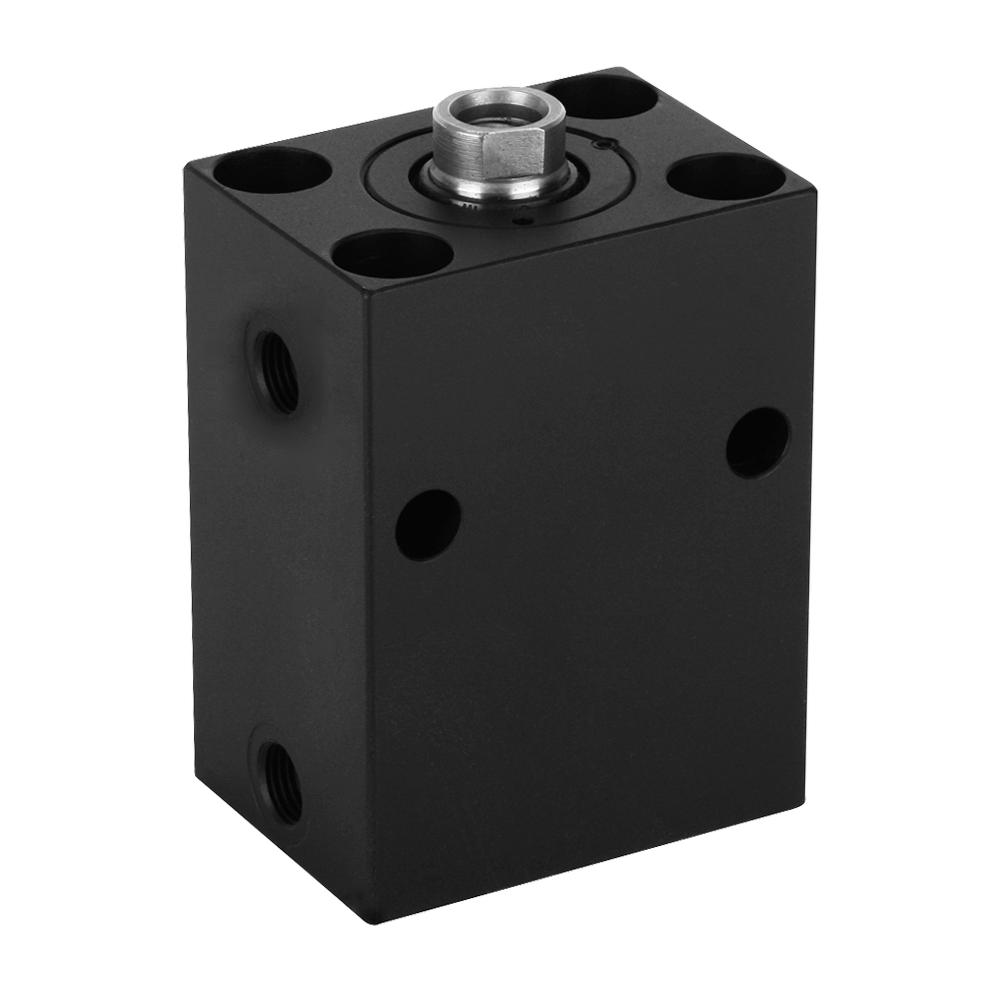

ROEMHELD Block Cylinders – Double Acting, B1.5094 Part # CLR-1546-705 Carr Lane Mfg.®

7250 psi max

Double Acting

Compact design with many applications. Easy to mount on flat surfaces, horizontally or vertically. Excellent for punching, pressing, and assembly operations, with very high forces available. These double-acting cylinders can also be used for pulling, by reversing the A and B ports.

Available in six inch sizes and eight metric sizes, with a choice of stroke length. Push force at 7250 psi:

2250 Lbs

5500 Lbs

9000 Lbs

14100 Lbs

22100 Lbs

35100 Lbs

56600 Lbs

88100 Lbs

Documents

B1.5094

Data Sheet

Clamping Action

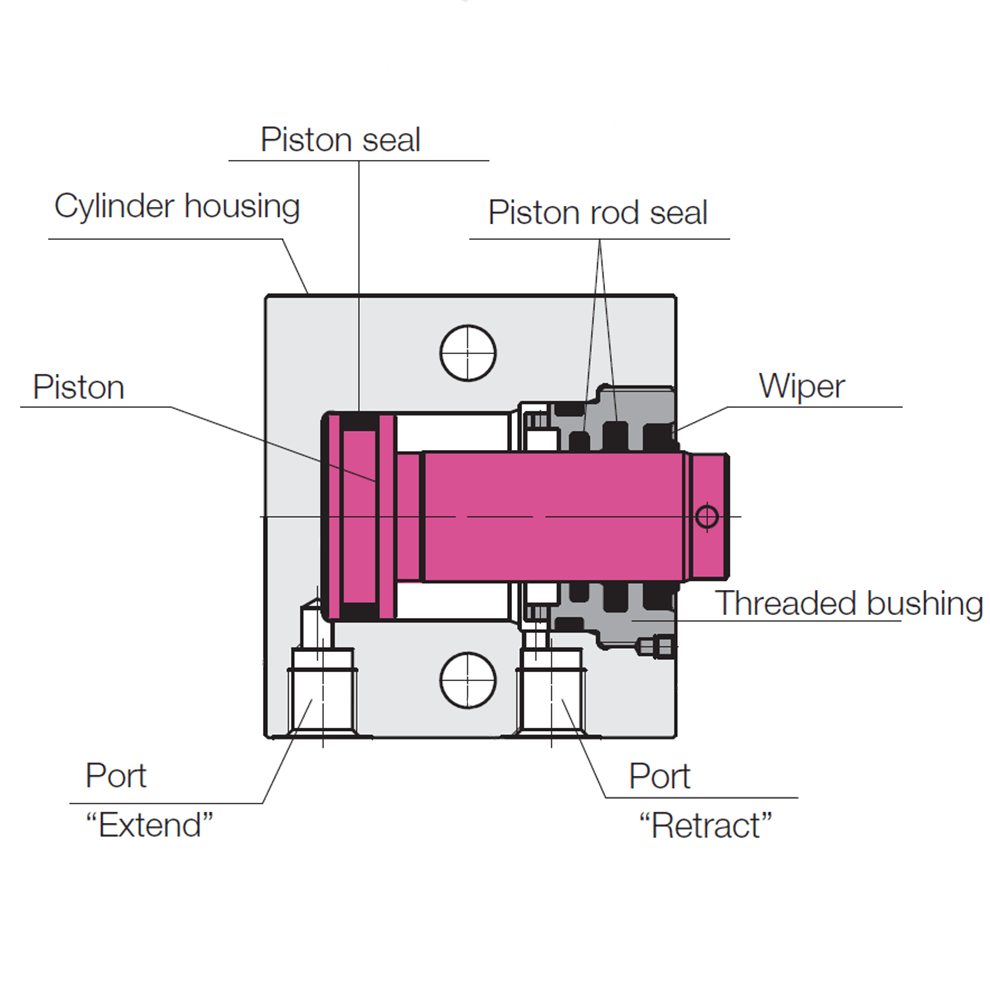

Diagram showcasing the application of Roemheld Block Cylinders Double Acting B15094

Applying fluid pressure to the A port advances the plunger. Applying fluid pressure to the B port retracts the plunger (double acting).

Mounting & Fluid Supply

Several possible mounting methods: 1) insert four socket-head cap screws from the plunger end, through the four counterbored holes parallel to the plunger; 2) insert four socket-head cap screws from the bottom end, through the four counterbored holes parallel to the plunger; 3) insert two socket-head cap screws through the two broad-side holes perpendicular to the plunger. Method 3 requires that the Block Cylinder be backed up for pressures over 2300 psi by a rectangular strip or dowel pins with a height at least 1/3 of the B dimension.

1/4" BSPP port (two for double-acting clamps). Larger sizes have 1/2" BSPP ports. Do not use NPT fittings.

Optional Viton Seals

For high-temperature applications (212° to 300° F), we offer Viton seals in all sizes. Viton seals have a slightly shorter service life. Please contact factory for more information.

Material

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

ITEM	MATERIAL	HEAT TREAT	FINISH
Plunger	Steel	Case Hardened	-
Body	Steel	-	Black Oxide

ROEMHELD Block Cylinders – Double Acting, B1.5094

Short Stroke (Inch)

QUANTITY	PART NO.	MAXIMUM CLAMPING FORCE (lbs)	MAXIMUM CLAMPING FORCE (kN)	STROKE (mm)	A WIDTH (mm)	B DEPTH (mm)	L HEIGHT (mm)	J THREAD x DEPTH (mm)
	CLR-1541-705	2250	10	16	60	35	62	1/4-20 x 12
	CLR-1543-705	5500	24.5	20	65	45	71	3/8-16 x 15
	CLR-1544-705	9000	40.2	25	75	55	85	1/2-13 x 15
	CLR-1545-705	14100	62.8	25	85	63	89	5/8-11 x 25
	CLR-1546-705	22100	98.5	25	100	75	100	3/4-10 x 30
	CLR-1547-705	35100	156	30	125	95	116	1"-8 x 40

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Long Stroke (Inch)

QUANTITY	PART NO.	MAXIMUM CLAMPING FORCE (lbs)	MAXIMUM CLAMPING FORCE (kN)	STROKE (mm)	A WIDTH (mm)	B DEPTH (mm)	L HEIGHT (mm)	J THREAD x DEPTH (mm)
	CLR-1541-765	2250	10	50	60	35	97	1/4-20 x 12
	CLR-1543-765	5500	24.5	50	65	45	101	3/8-16 x 15
	CLR-1544-765	9000	40.2	50	75	55	110	1/2-13 x 15
	CLR-1545-765	14100	62.8	50	85	63	114	5/8-11 x 25
	CLR-1546-765	22100	98.5	50	100	75	125	3/4-10 x 30
	CLR-1547-775	35100	156	63	125	95	149	1"-8 x 40

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Short Stroke (Metric)

QUANTITY	PART NO.	MAXIMUM CLAMPING FORCE (lbs)	MAXIMUM CLAMPING FORCE (kN)	STROKE (mm)	A WIDTH (mm)	B DEPTH (mm)	L HEIGHT (mm)	J THREAD x DEPTH (mm)
	CLR-1541-105	2250	10	16	60	35	62	M6 x 12
	CLR-1543-105	5500	24.5	20	65	45	71	M10 x 15
	CLR-1544-105	9000	40.2	25	75	55	85	M12 x 15
	CLR-1545-105	14100	62.8	25	85	63	89	M16 x 25
	CLR-1546-105	22100	98.5	25	100	75	100	M20 x 30
	CLR-1547-105	35100	156	30	125	95	116	M27 x 40
	CLR-1548-105	56600	252	12	160	120	131	M30 x 40
	CLR-1549-105	88100	392	12	200	150	145	M42 x 60

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Long Stroke (Metric)

QUANTITY	PART NO.	MAXIMUM CLAMPING FORCE (lbs)	MAXIMUM CLAMPING FORCE (kN)	STROKE (mm)	A WIDTH (mm)	B DEPTH (mm)	L HEIGHT (mm)	J THREAD x DEPTH (mm)
	CLR-1541-165	2250	10	50	60	35	97	M6 x 12
	CLR-1543-165	5500	24.5	50	65	45	101	M10 x 15
	CLR-1544-165	9000	40.2	50	75	55	110	M12 x 15
	CLR-1545-165	14100	62.8	50	85	63	114	M16 x 25
	CLR-1546-165	22100	98.5	50	100	75	125	M20 x 30
	CLR-1547-175	35100	156	63	125	95	149	M27 x 40
	CLR-1548-185	56600	252	80	160	120	179	M30 x 40

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

100mm Long Stroke (Metric)

QUANTITY	PART NO.	MAXIMUM CLAMPING FORCE (lbs)	MAXIMUM CLAMPING FORCE (kN)	STROKE (mm)	A WIDTH (mm)	B DEPTH (mm)	L HEIGHT (mm)	J THREAD x DEPTH (mm)
	CLR-1541-195	2250	10	100	60	35	150	M6 x 12
	CLR-1543-195	5500	24.5	100	65	45	151	M10 x 15
	CLR-1544-195	9000	40.2	100	75	55	160	M12 x 15
	CLR-1545-195	14100	62.8	100	85	63	164	M16 x 25
	CLR-1546-195	22100	98.5	100	100	75	175	M20 x 30
	CLR-1547-195	35100	156	100	125	95	186	M27 x 40
	CLR-1548-195	56600	252	100	160	120	199	M30 x 40
	CLR-1549-195	88100	392	100	200	150	205	M42 x 60
