ROEMHELD Rotating Modules – Manual Rotation without Indexing, M1.101 (Horizontal Axis)

ROEMHELD Assembly & Lifting

Save to My Project

What is this?

Product Information

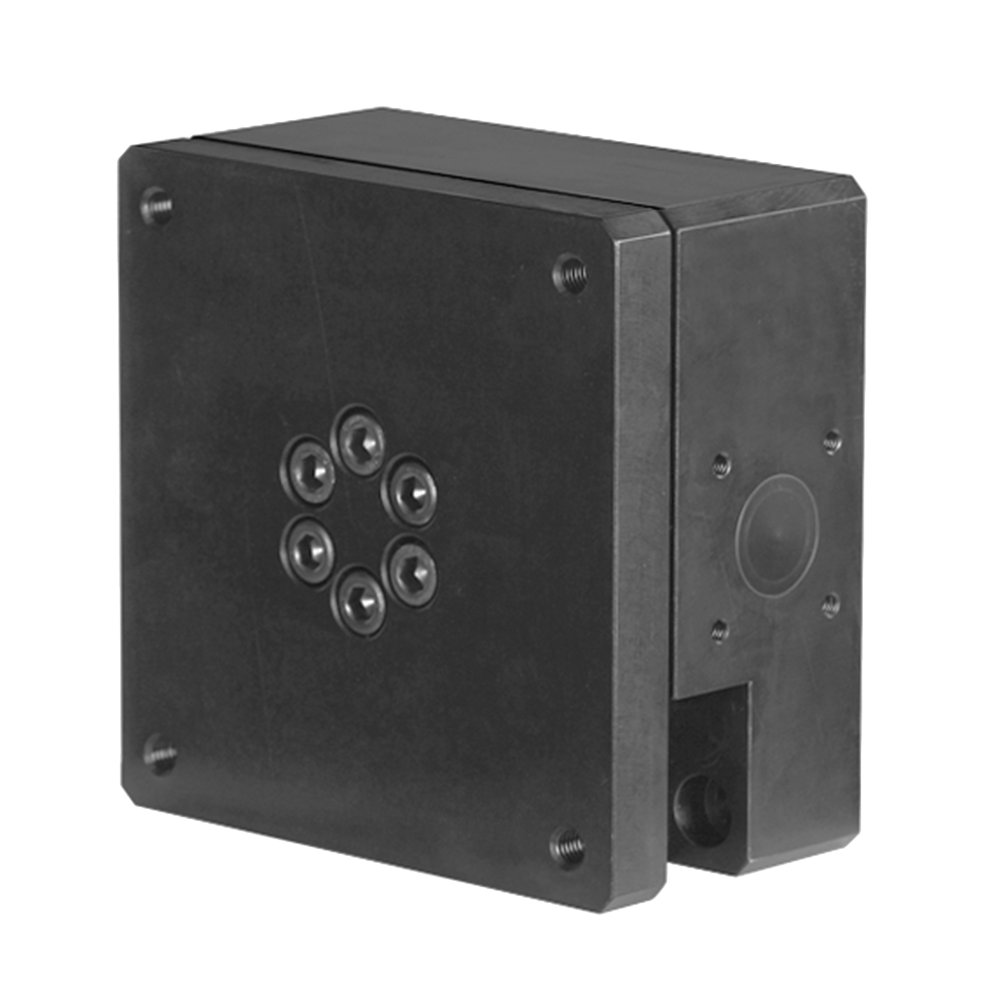

ROEMHELD Rotating Modules – Manual Rotation without Indexing, M1.101 (Horizontal Axis) Part # CLR-6505-02-36-O Carr Lane Mfg.®

Rotating Modules are universally usable in assembly and handling processes. Horizontal-Axis Rotating Modules are a double-supported rotation axis that can compensate high axial and radial forces. These modules provide full 360° rotation in both directions, and indexing is possible by one-hand operation. Due to special bearings, these modules are extremely resistant to shocks and thrusts. The design of the rotating module allows smooth operation in applications with light as well as with heavy loads. When using the this module in assembly processes, component parts can be rotated quickly and safely, and can be accessed ergonomically from five sides.

The module version shown here is the basic rotating module with no locking mechanism. Rotation is performed manually by turning the workpiece or fixture, with 360° free rotation in either direction.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Documents

M1.101

Data Sheet

ROEMHELD Rotating Modules – Manual Rotation without Indexing, M1.101 (Horizontal Axis)

QUANTITY	PART NO.	LOAD CAPACITY +/- Fx and Fy (lbs)	LOAD CAPACITY +/- Fz (lbs)	ALLOWABLE TORQUE +/- Mx and My (Nm)	ALLOWABLE TORQUE +/- Mz (Nm)	INDEXING ENGAGEMENT POSITIONS
	CLR-6505-02-36-O	450	225	800	---	None

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available
