ROEMHELD Rotating Modules – Actively Operated Indexing by Hand Lever, M1.101 (Horizontal Axis) Part # CLR-6505-02-36-M Carr Lane Mfg.®

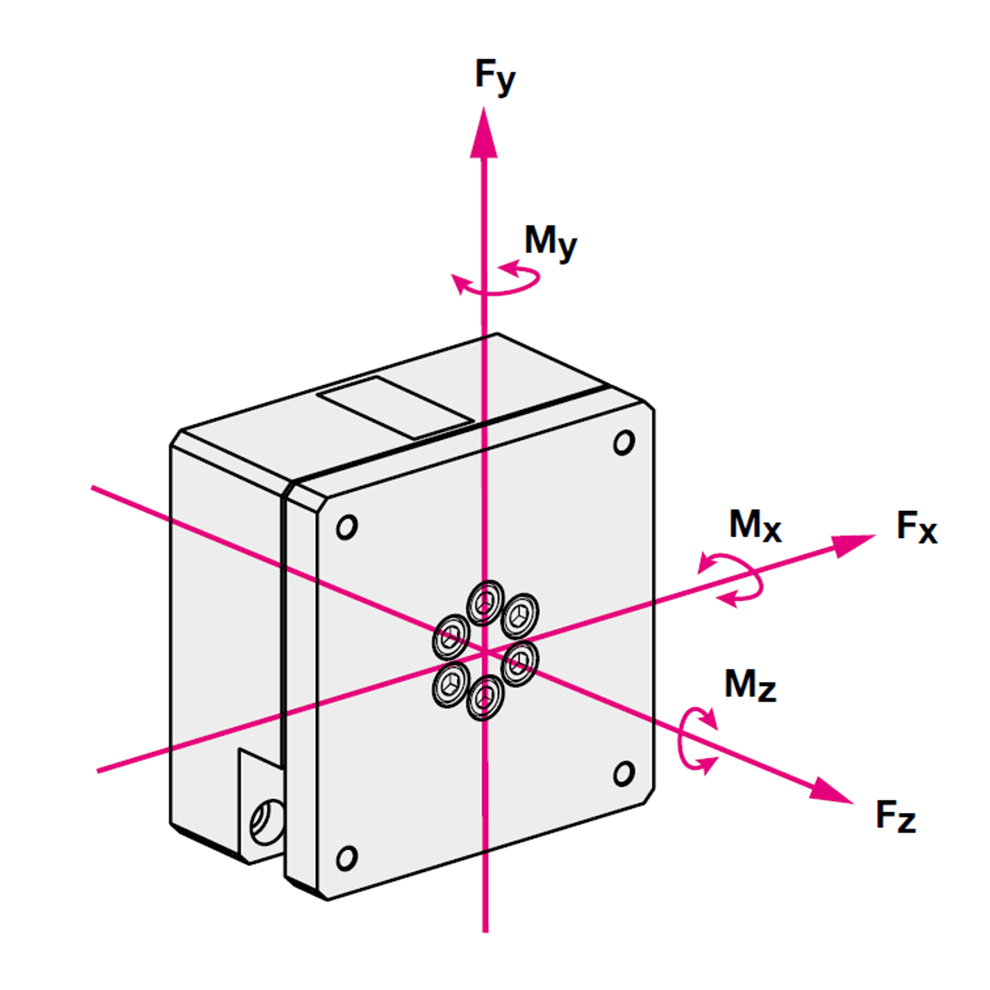

Rotating Modules are universally usable in assembly and handling processes. Horizontal-Axis Rotating Modules are a double-supported rotation axis that can compensate high axial and radial forces. These modules provide full 360° rotation in both directions, and indexing is possible by one-hand operation. Due to special bearings, these modules are extremely resistant to shocks and thrusts. The design of the rotating module allows smooth operation in applications with light as well as with heavy loads. When using the this module in assembly processes, component parts can be rotated quickly and safely, and can be accessed ergonomically from five sides.

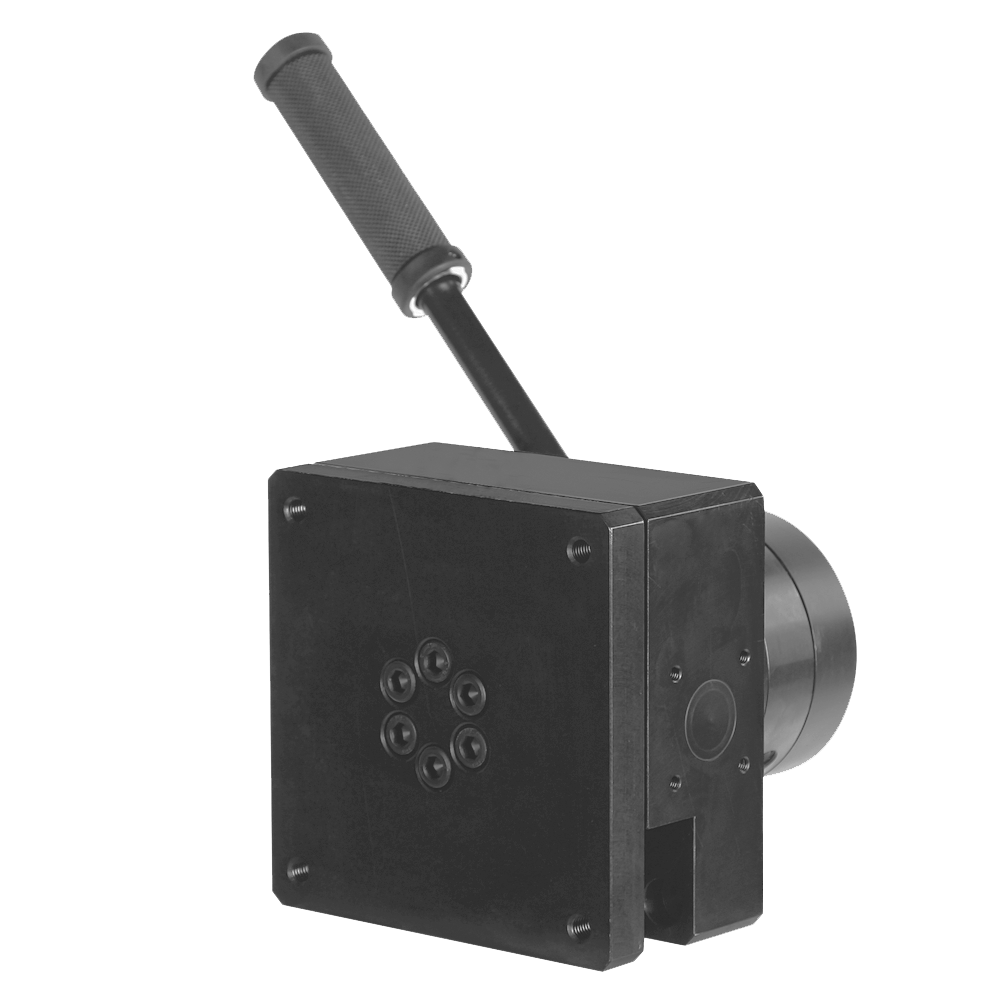

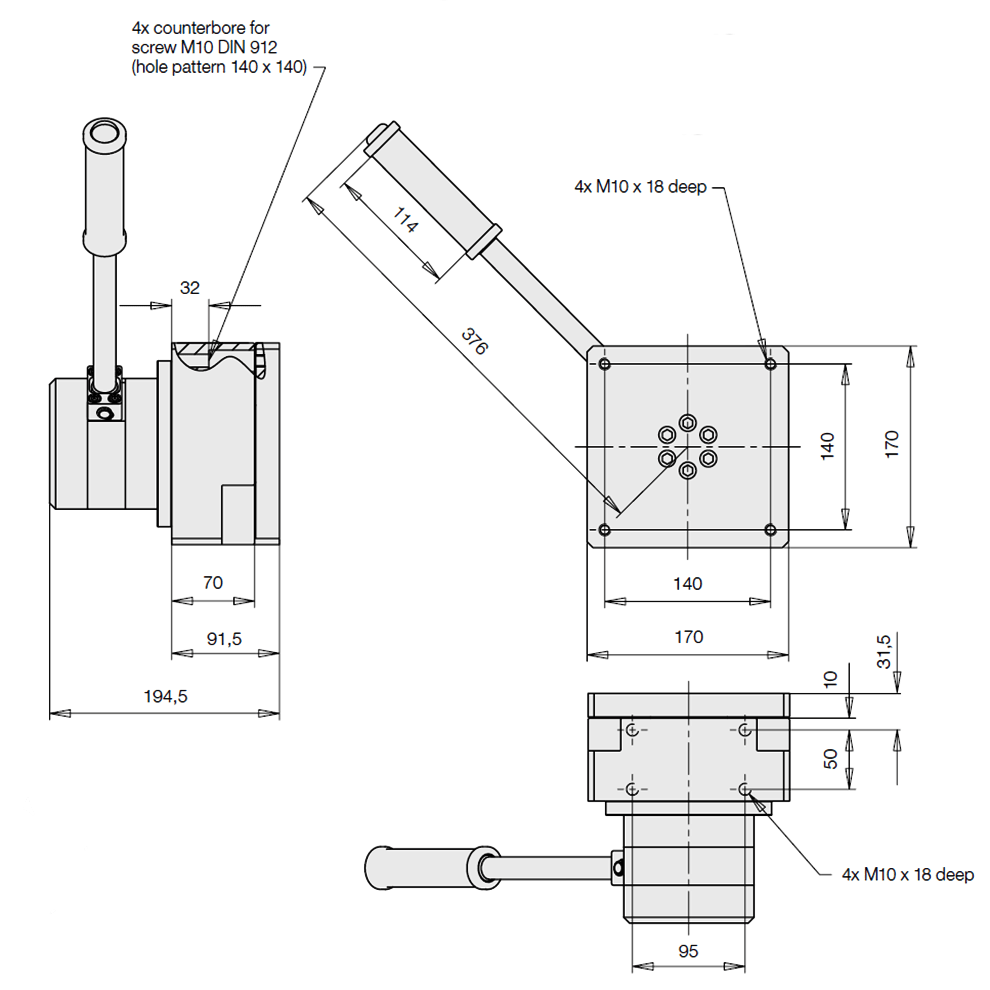

The module version shown here, with actively operated indexing, is a compact and functional all-in-one unit. Rotating as well as indexing are ergonomically performed by one hand lever only. To unlock the indexing position, the hand lever has to be tilted in axial direction by approx. 10° to get connected by form fit with the rotating module. The workpiece or fixture can then be rotated in either direction by means of the hand lever. Only after positive locking in the desired position is the hand lever free again and the workpiece locked with the housing by form fit. The standard indexing and engagement positions of the hand lever are set to 4 x 90°.

Documents

M1.101

Data Sheet
