ROEMHELD Lifting Modules – Basic, Manual-Hydraulic, M4.101 (225 lbs) Part # CLR-8910-01-40-H Carr Lane Mfg.®

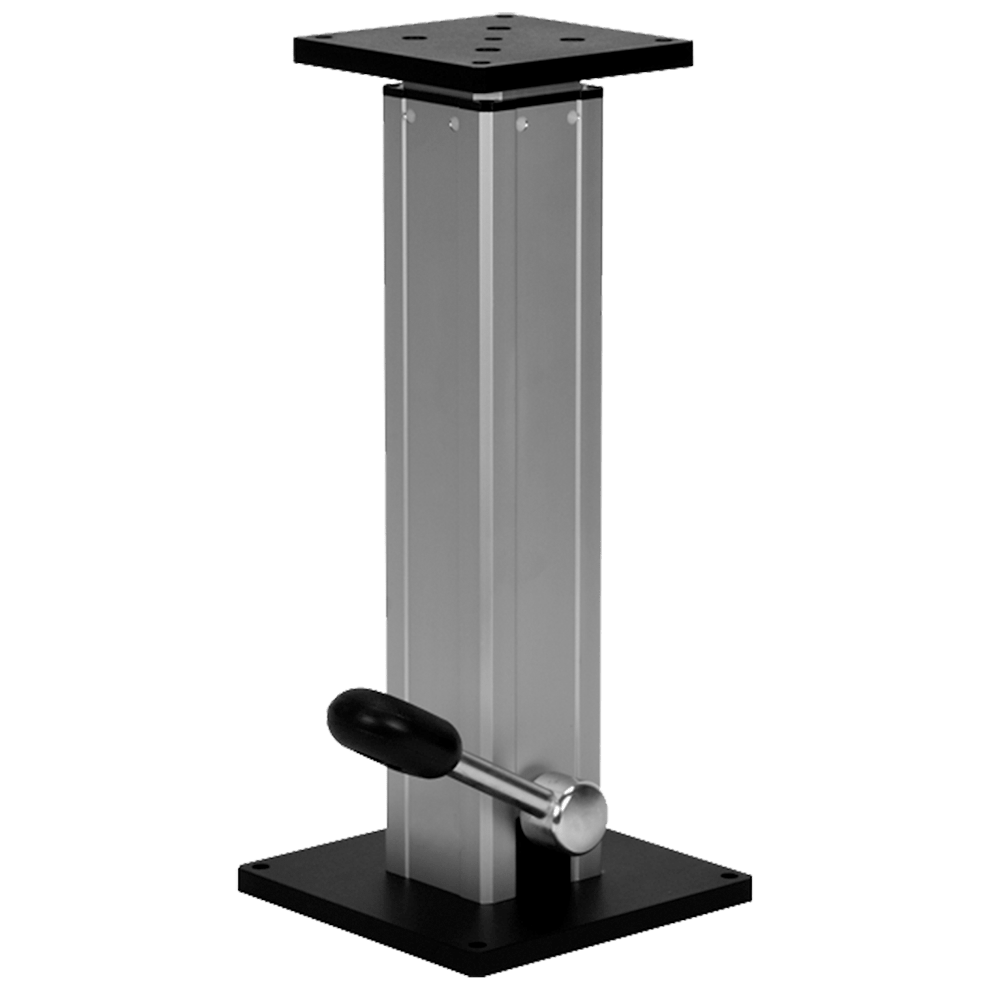

Lifting modules are base units that can be used for controlled lifting and lowering of loads, or simply for convenient height adjustment. These sturdy units feature quick manual-hydraulic operation to allow performing a wide range of work at an ergonomically optimum height. Lifting-stroke movement is obtained hydraulically, with fluid being pumped manually by a foot-lever-actuated piston pump into a plunger cylinder. When the foot lever is lifted for retraction, fluid returns from the cylinder back to the reservoir due to the weight of the load, at a controlled lowering speed.

The "Basic" lifting modules shown here have a 97mm-square aluminum column, rated for 100Nm bending moment. These modules provide a maximum lifting force of 225 lbs, with a choice of stroke length from 200 to 600mm. This elegant and slim design features optimized ergonomics, simple operation, and an optimum working height.

Applications include industrial assembly working places, height adjustment of assembly working places in workshops, maintenance works, assembly fixtures, adjusting systems in supply processes of mid-sized objects, and handling systems for product packing and transfer.

Documents

M4.101

Data Sheet

ROEMHELD Lifting Modules – Basic, Manual-Hydraulic, M4.101 (225 lbs)

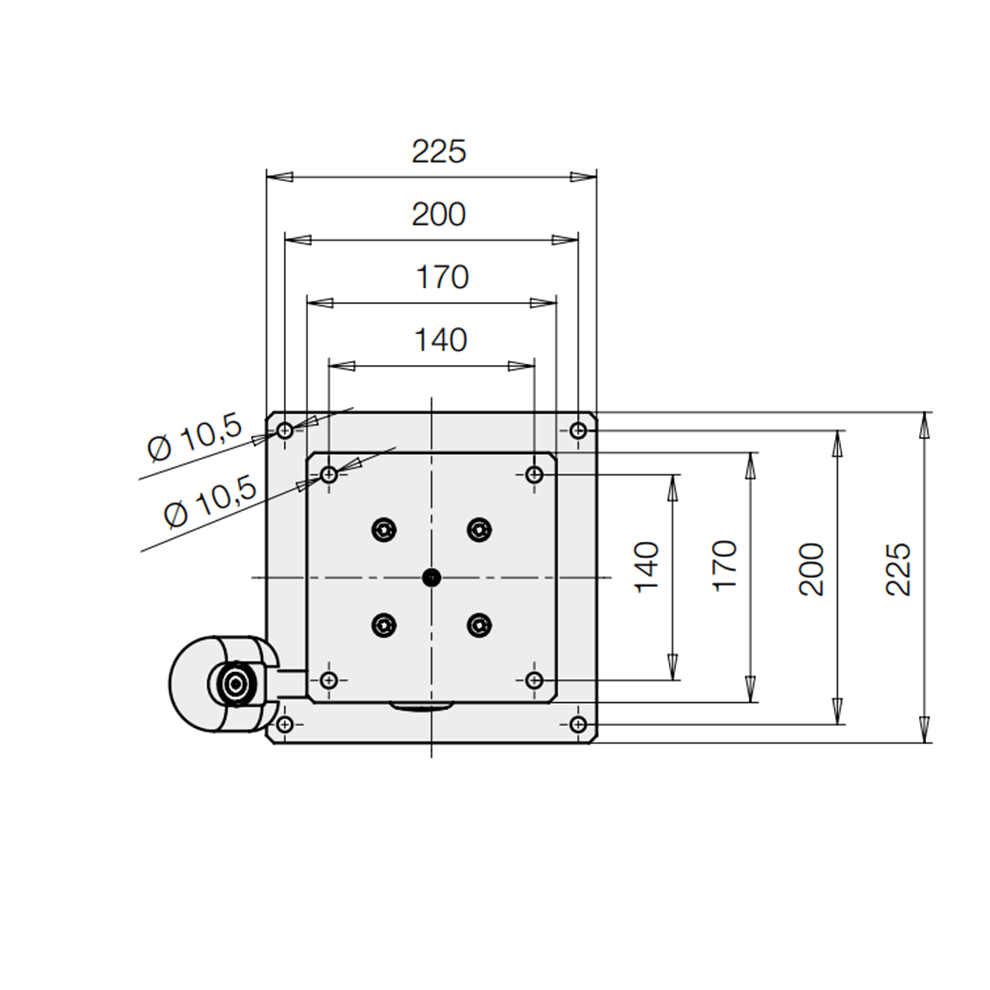

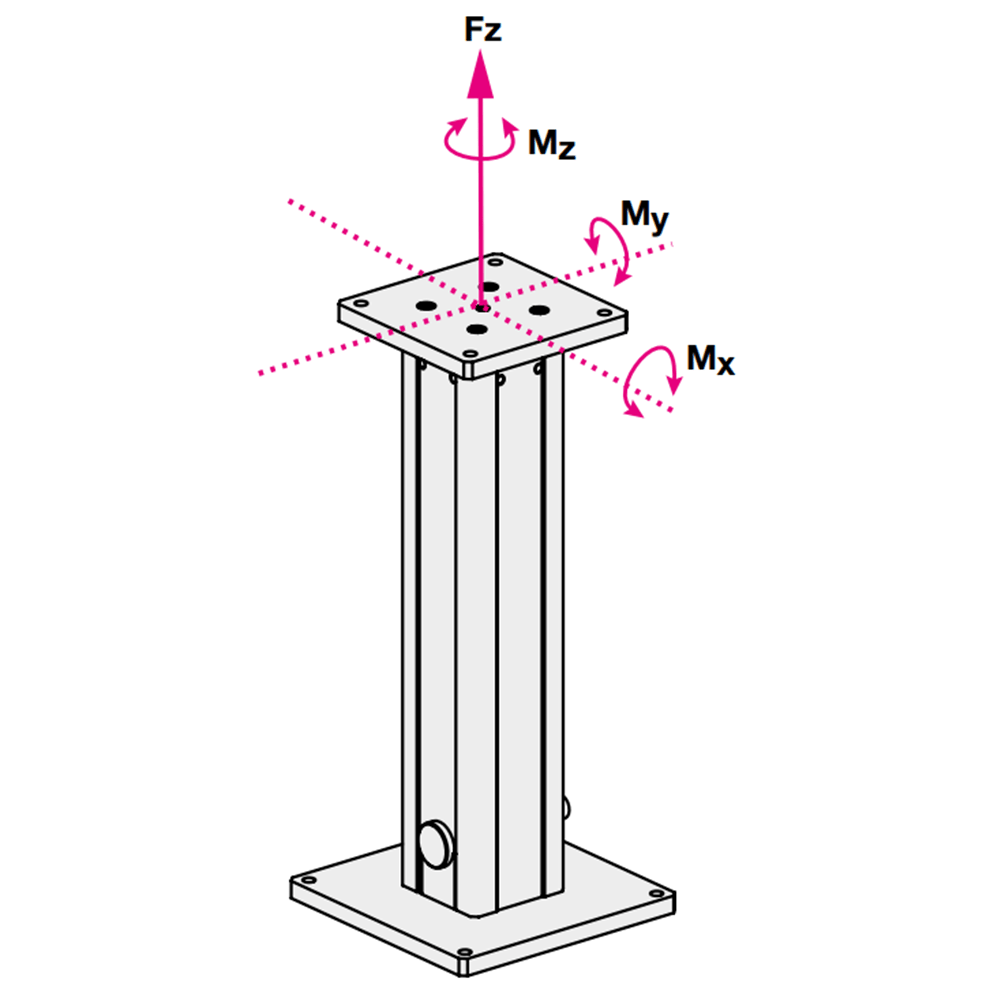

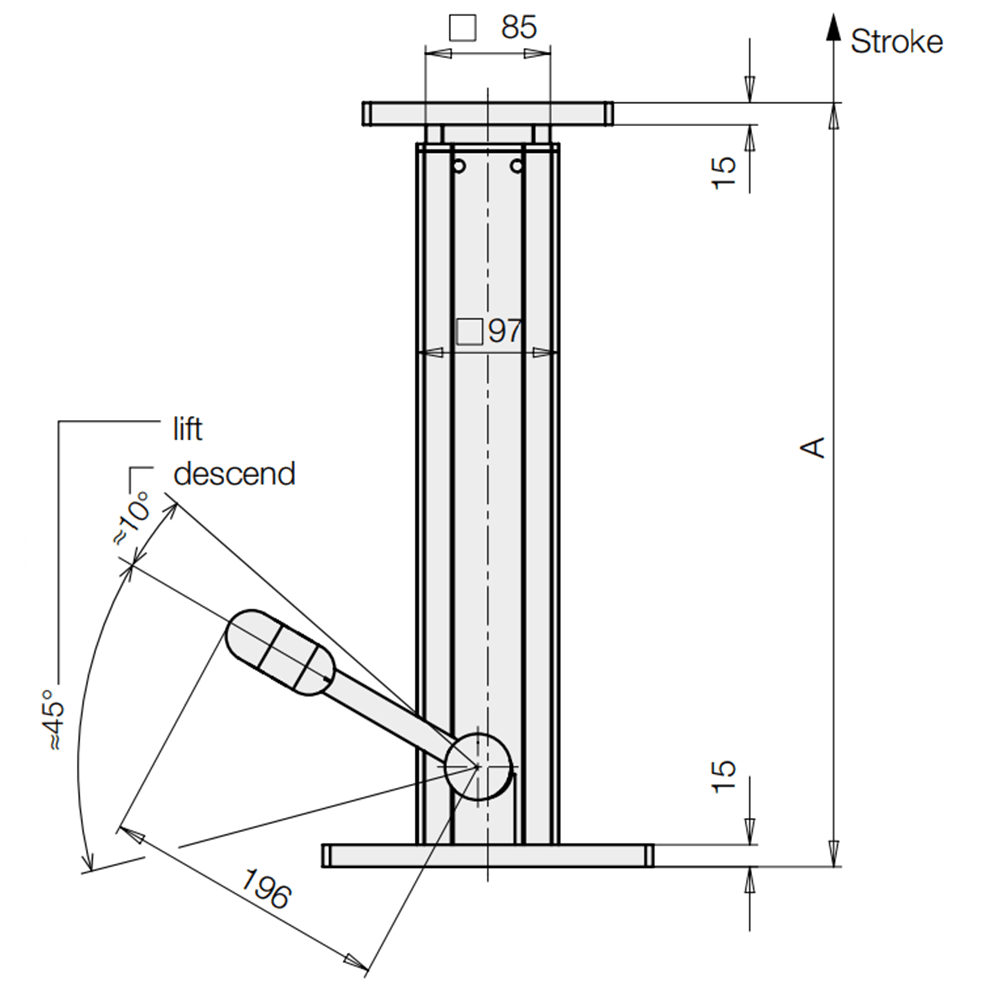

PART NO.	MAXIMUM LIFTING FORCE Fz (lbs)	ALLOWABLE TORQUE +/- Mx and My (Nm)	ALLOWABLE TORQUE +/- Mz (Nm)	STROKE (mm)	A RETRACTED HEIGHT (mm)
CLR-8910-01-20-H	225	100	50	200	420
CLR-8910-01-30-H	225	100	50	300	520
CLR-8910-01-40-H	225	100	50	400	620
CLR-8910-01-50-H	225	100	50	500	720
CLR-8910-01-60-H	225	100	50	600	820
