LIFE-EX® Round Pins

Save to My Project

What is this?

Product Information

Now available with LIFE-EX^® coating!

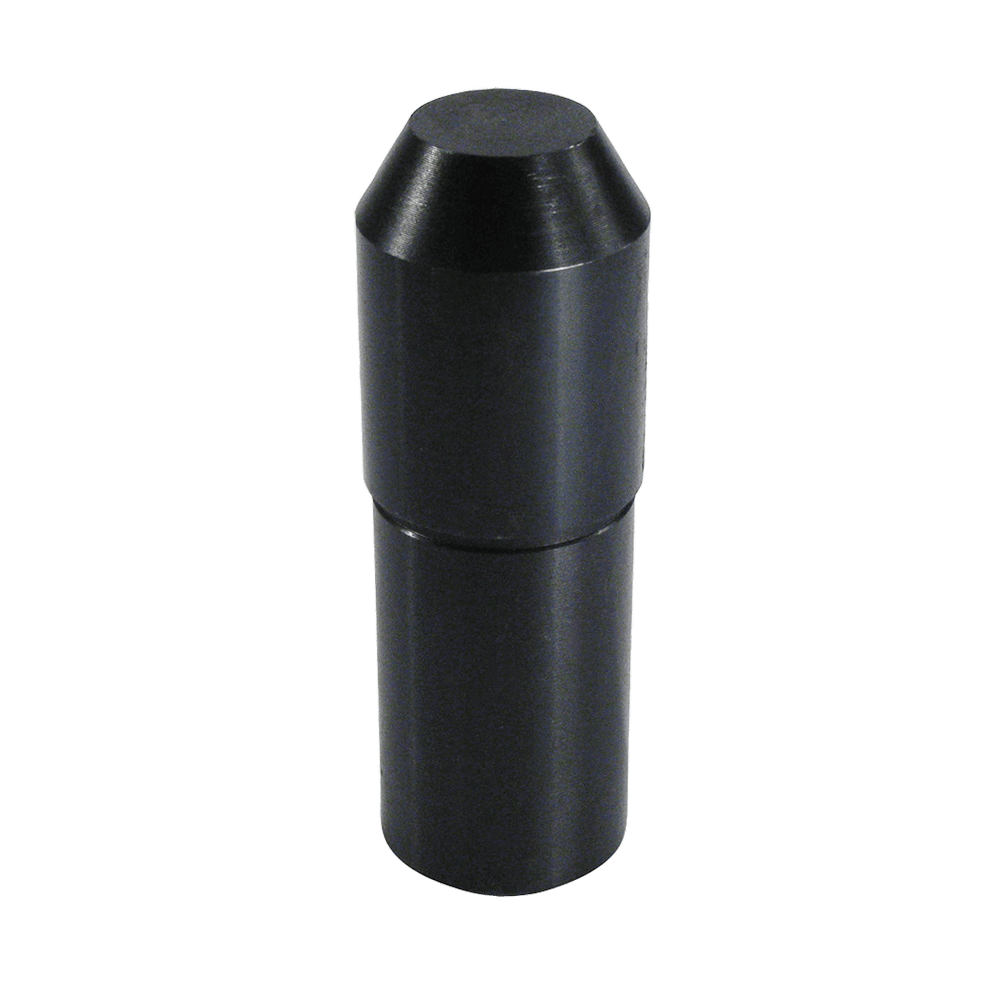

Popular sizes of Round & Diamond Pins are now available with our proprietary LIFE-EX coating. This PVD coating is very hard, abrasion resistant, and slippery, resulting in a component that has a longer lifecycle for high-production applications. This extended lifecycle allows these items to remain in production longer with less need for replacement than standard uncoated items.

Round & Diamond Pins are precision locating pins with a chamfered tip for easy part loading, and a shoulder to resist downward forces – important advantages over standard dowel pins. One Round Pin and one Diamond Pin are often used together to locate from two machined holes in a workpiece, or to align two pieces of a fixture, without binding. Round Pins are also extremely useful as side locators. Head and shank diameters are concentric to within .0005" TIR. Made in USA.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Material Chart

MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
1144 Steel	Heat Treated Rc 50-55	Black Oxide / PVD Coated	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

LIFE-EX® Round Pins

Metric

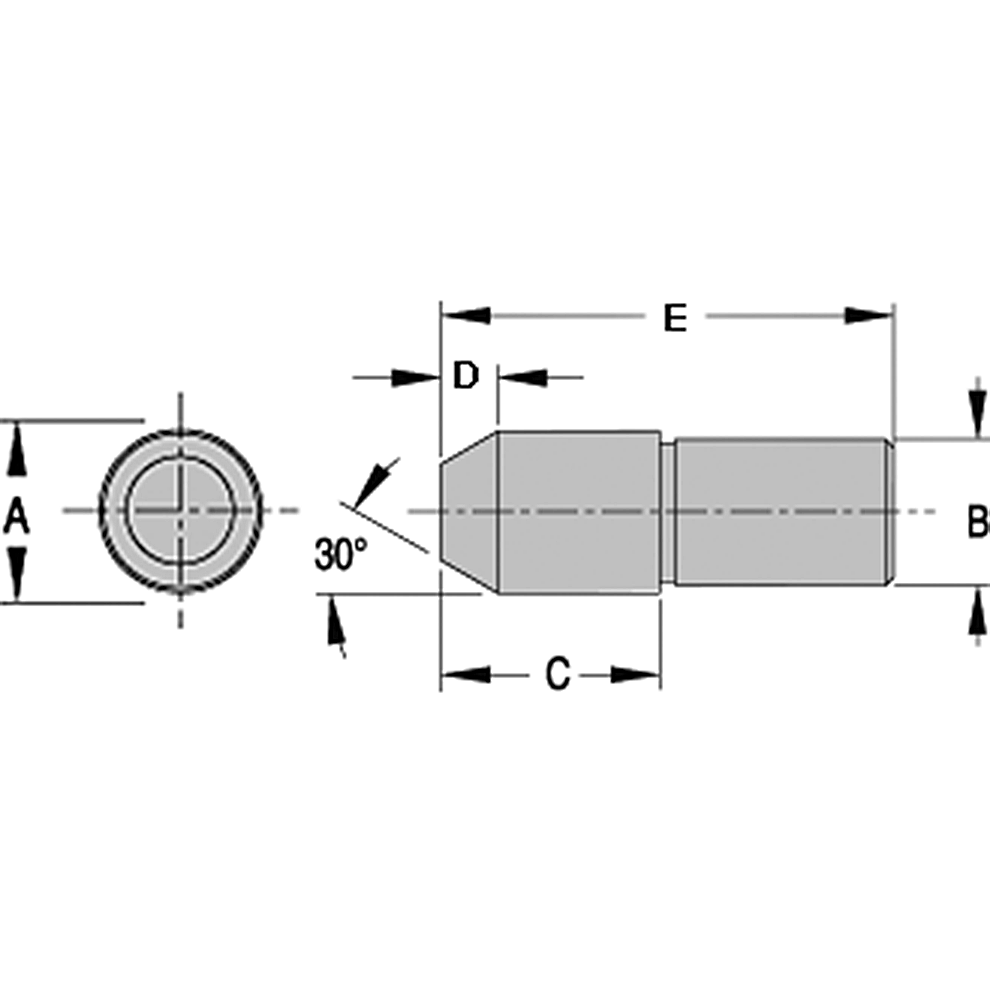

PART NO.	A HEAD DIA NOMNAL (mm)	A HEAD DIA ACTUAL (mm)	B SHANK DIA NOMINAL (mm)	B SHANK DIA ACTUAL (mm)	C (mm)	D (mm)	E (mm)
CLM-80-RP-LX	8	7.987 / 7.979	6	6.008 / 6.002	10.5	2.4	22
CLM-100-RP-LX	10	9.987 / 9.979	8	8.008 / 8.002	12.5	3.2	25.5
CLM-120-RP-LX	12	11.987 / 11.979	10	10.008 / 10.002	16.5	4	35
