Captive Locating Screws with Hand Knob

Save to My Project

What is this?

Product Information

Captive Locating Screws with Hand Knob

New item!

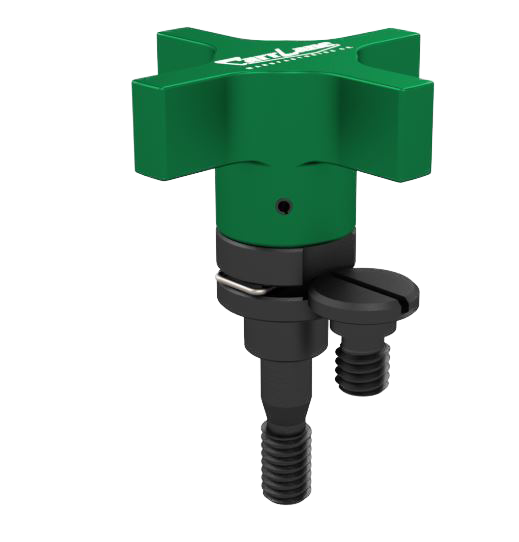

These Captive Locating Screws have an integral hand knob for tightening by hand. Captive Locating Screws can be used for locating and clamping, or for clamping only, by selecting the appropriate screw length. The locating screw's precision-ground body is positively retained in a locking bushing. In fully retracted position, the bushing's spring clip snaps into the body's radial groove. This holds the screw fully retracted by spring force and positively prevents removal. Spring pressure also holds the screw in intermediate extended positions, an advantage especially if the fixture is turned upside down. Available in thread sizes from 1/4-20 to 1/2-13. Made in USA.

The complete assemblies listed below include a Captive Locating Screw, Locking-Pin Bushing, and Lockscrew. Choice of standard or long bushing in most sizes, for installation in thinner or thicker plates. Locking-Pin Bushings are designed to press fit in a standard reamed hole, and can be further secured with the included Lockscrew to positively hold the bushing in place.

Application Information

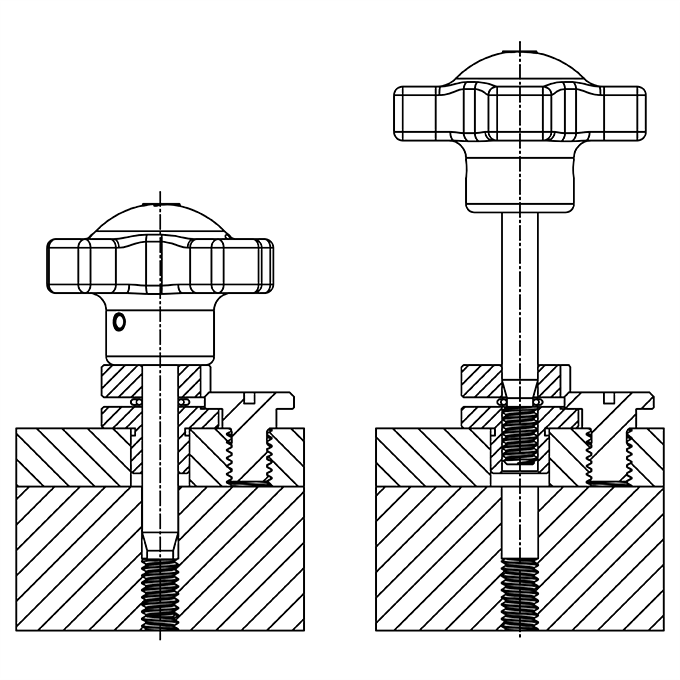

In fully retracted position, the bushing's spring clip holds the Locating Screw fully retracted by spring force and positively prevents removal. Spring pressure also holds the screw in intermediate extended positions.

Material

Knob > 319 aluminum alloy. Screw > 12L14 steel, carburized-hardened, black oxide finish. Locking bushing > 8620 steel, carburized-hardened, black oxide finish. Retainer clip > Spring steel. DFARS and RoHS compliant.

Click here for detailed material and finish specifications.

Captive Locating Screws with Hand Knob

Assembly

QUANTITY	PART NO.	A DIA NOMINAL	A DIA ACTUAL	B	C	D	E	F	G	K DIA	L	M	N DIA NOMINAL	N DIA ACTUAL	P	R	S DIA	LOCATING SCREW (INCLUDED)	BUSHING (INCLUDED)	LOCKSCREW (INCLUDED)
	CL-4-CLSHA-1.25	1/4	.2490	1-1/4	1.75	1.12	1/4-20	.40	.59	3/4	.81	.25	13/32	.4078	.31	.62	13/16	CL-4-CLSH-1.25	CL-4-LPB	LS-1
	CL-5-CLSHA-1.38	5/16	.3115	1-3/8	1.75	1.12	5/16-18	.47	.65	3/4	.94	.32	1/2	.5017	.31	.62	13/16	CL-5-CLSH-1.38	CL-5-LPB	LS-1
	CL-5-CLSHA-1.75	5/16	.3115	1-3/4	1.75	1.12	5/16-18	.47	.65	3/4	1.31	.32	1/2	.5017	.31	.62	13/16	CL-5-CLSH-1.75	CL-5-LPB	LS-1
	CL-5-CLSHA-3.00	5/16	.3115	3	1.75	1.12	5/16-18	.47	.65	3/4	2.56	.32	1/2	.5017	.31	.62	13/16	CL-5-CLSH-3.00	CL-5-LPB	LS-1
	CL-6-CLSHA-1.50	3/8	.3740	1-1/2	2.13	1.38	3/8-16	.56	.75	1	1.06	.41	5/8	.6267	.31	.62	13/16	CL-6-CLSH-1.50	CL-6-LPB	LS-1
	CL-6-CLSHA-2.00	3/8	.3740	2	2.13	1.38	3/8-16	.56	.75	1	1.56	.41	5/8	.6267	.31	.62	13/16	CL-6-CLSH-2.00	CL-6-LPB	LS-1
	CL-6-CLSHA-3.00	3/8	.3740	3	2.13	1.38	3/8-16	.56	.75	1	2.56	.41	5/8	.6267	.31	.62	13/16	CL-6-CLSH-3.00	CL-6-LPB	LS-1
	CL-8-CLSHA-1.50	1/2	.4990	1-1/2	2.13	1.38	1/2-13	.75	.93	1	1.06	.60	3/4	.7518	.50	.75	1-1/16	CL-8-CLSH-1.50	CL-8-LPB	LS-1
	CL-8-CLSHA-2.00	1/2	.4990	2	2.13	1.38	1/2-13	.75	.93	1	1.56	.60	3/4	.7518	.50	.75	1-1/16	CL-8-CLSH-2.00	CL-8-LPB	LS-1
	CL-8-CLSHA-3.00	1/2	.4990	3	2.13	1.38	1/2-13	.75	.93	1	2.56	.60	3/4	.7518	.50	.75	1-1/16	CL-8-CLSH-3.00	CL-8-LPB	LS-1

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Pin Only

QUANTITY	PART NO.	A DIA NOMINAL	A DIA ACTUAL	B	C	D	E	F	G	K DIA
	CL-4-CLSH-1.25	1/4	.2490	1-1/4	1.75	1.12	1/4-20	.40	.59	3/4
	CL-5-CLSH-1.38	5/16	.3115	1-3/8	1.75	1.12	5/16-18	.47	.65	3/4
	CL-5-CLSH-1.75	5/16	.3115	1-3/4	1.75	1.12	5/16-18	.47	.65	3/4
	CL-5-CLSH-3.00	5/16	.3115	3	1.75	1.12	5/16-18	.47	.65	3/4
	CL-6-CLSH-1.50	3/8	.3740	1-1/2	2.13	1.38	3/8-16	.56	.75	1
	CL-6-CLSH-2.00	3/8	.3740	2	2.13	1.38	3/8-16	.56	.75	1
	CL-6-CLSH-3.00	3/8	.3740	3	2.13	1.38	3/8-16	.56	.75	1
	CL-8-CLSH-1.50	1/2	.4990	1-1/2	2.13	1.38	1/2-13	.75	.93	1
	CL-8-CLSH-2.00	1/2	.4990	2	2.13	1.38	1/2-13	.75	.93	1
	CL-8-CLSH-3.00	1/2	.4990	3	2.13	1.38	1/2-13	.75	.93	1

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Assembly (Metric)

QUANTITY	PART NO.	A DIA NOMINAL	A DIA ACTUAL	B	C	D	E	F	G	K DIA	L	M	N DIA NOMINAL	N DIA ACTUAL	P	R	S DIA	LOCATING SCREW (INCLUDED)	BUSHING (INCLUDED)	LOCKSCREW (INCLUDED)
	CLM-6-CLSHA-30	6mm	.2352	1.18	1.75	1.12	M6	.39	.56	3/4	.71	.15	10mm	.3952	.31	.630	.87	CLM-6-CLSH-30	CLM-6-LPB	LSM-3
	CLM-8-CLSHA-35	8mm	.3140	1.38	1.75	1.12	M8	.47	.66	3/4	.91	.29	13mm	.5135	.39	.630	.87	CLM-8-CLSH-35	CLM-8-LPB	LSM-3
	CLM-8-CLSHA-45	8mm	.3140	1.77	1.75	1.12	M8	.47	.66	3/4	1.30	.29	13mm	.5135	.39	.630	.87	CLM-8-CLSH-45	CLM-8-LPB	LSM-3
	CLM-8-CLSHA-75	8mm	.3140	2.95	1.75	1.12	M8	.47	.66	3/4	2.48	.29	13mm	.5135	.39	.630	.87	CLM-8-CLSH-75	CLM-8-LPB	LSM-3
	CLM-10-CLSHA-40	10mm	.3927	1.57	2.13	1.38	M10	.55	.76	1	1.10	.45	16mm	.6316	.47	.630	.87	CLM-10-CLSH-40	CLM-10-LPB	LSM-3
	CLM-10-CLSHA-50	10mm	.3927	1.97	2.13	1.38	M10	.55	.76	1	1.50	.45	16mm	.6316	.47	.630	.87	CLM-10-CLSH-50	CLM-10-LPB	LSM-3
	CLM-10-CLSHA-75	10mm	.3927	2.95	2.13	1.38	M10	.55	.76	1	2.48	.45	16mm	.6316	.47	.630	.87	CLM-10-CLSH-75	CLM-10-LPB	LSM-3
	CLM-12-CLSHA-50	12mm	.4715	1.97	2.13	1.38	M12	.79	1.02	1	1.50	.68	20mm	.7892	.71	.709	1.02	CLM-12-CLSH-50	CLM-12-LPB	LSM-3
	CLM-12-CLSHA-60	12mm	.4715	2.36	2.13	1.38	M12	.79	1.02	1	1.89	.68	20mm	.7892	.71	.709	1.02	CLM-12-CLSH-60	CLM-12-LPB	LSM-3
	CLM-12-CLSHA-75	12mm	.4715	2.95	2.13	1.38	M12	.79	1.02	1	2.48	.68	20mm	.7892	.71	.709	1.02	CLM-12-CLSH-75	CLM-12-LPB	LSM-3

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Pin Only (Metric)

QUANTITY	PART NO.	A DIA NOMINAL	A DIA ACTUAL	B	C	D	E	F	G	K DIA
	CLM-6-CLSH-30	6mm	.2352	1.18	1.75	1.12	M6	.39	.56	3/4
	CLM-8-CLSH-35	8mm	.3140	1.38	1.75	1.12	M8	.47	.66	3/4
	CLM-8-CLSH-45	8mm	.3140	1.77	1.75	1.12	M8	.47	.66	3/4
	CLM-8-CLSH-75	8mm	.3140	2.95	1.75	1.12	M8	.47	.66	3/4
	CLM-10-CLSH-40	10mm	.3927	1.57	2.13	1.38	M10	.55	.76	1
	CLM-10-CLSH-50	10mm	.3927	1.97	2.13	1.38	M10	.55	.76	1
	CLM-10-CLSH-75	10mm	.3927	2.95	2.13	1.38	M10	.55	.76	1
	CLM-12-CLSH-50	12mm	.4715	1.97	2.13	1.38	M12	.79	1.02	1
	CLM-12-CLSH-60	12mm	.4715	2.36	2.13	1.38	M12	.79	1.02	1
	CLM-12-CLSH-75	12mm	.4715	2.95	2.13	1.38	M12	.79	1.02	1
