Round Tooling Plates – Standard (400mm)

Save to My Project

What is this?

Product Information

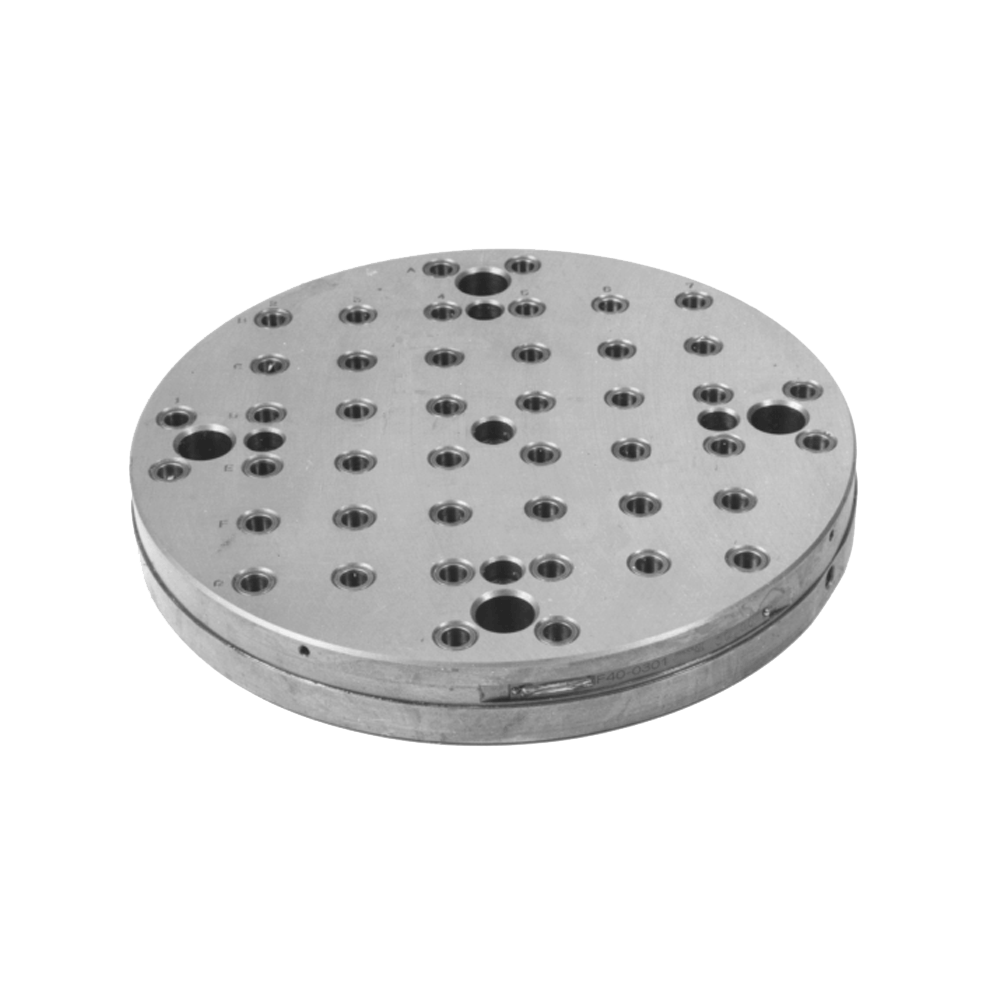

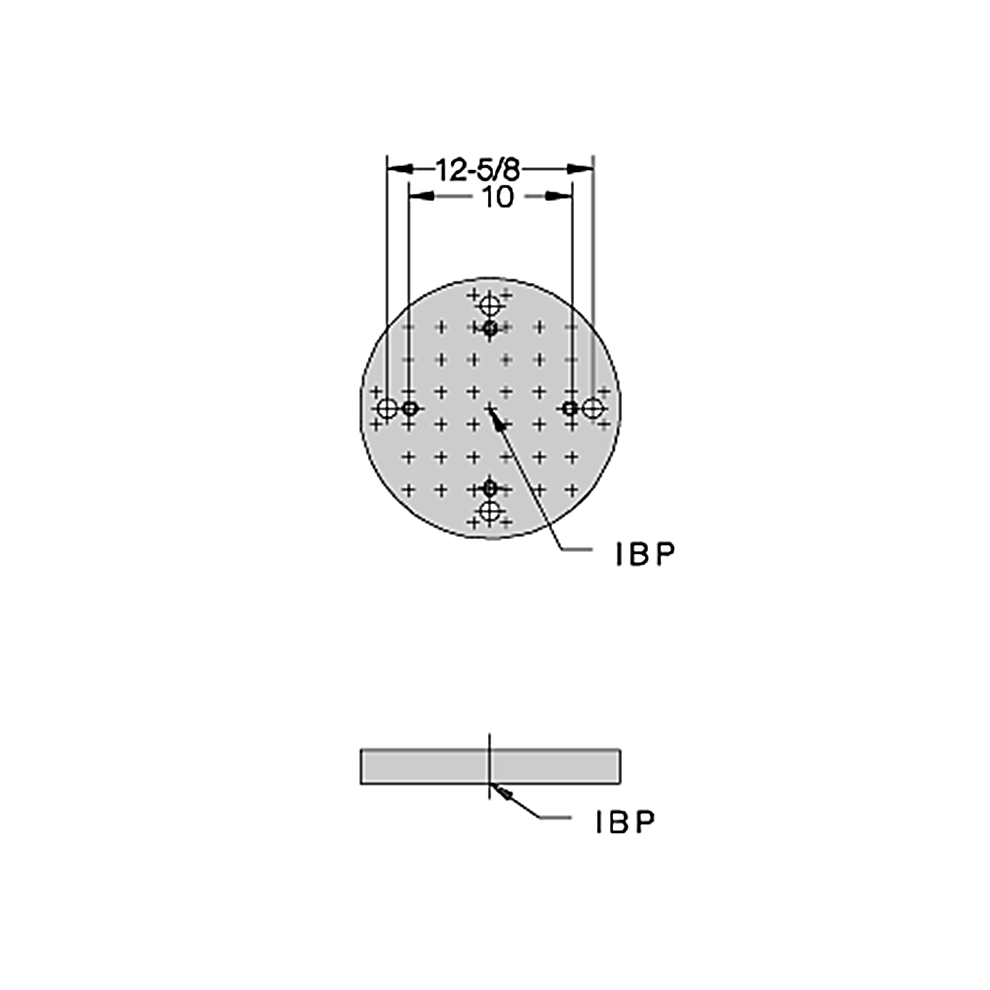

Designed to fit round machining-center pallets and rotary machine tables. Finish ground to tight tolerances, with all multipurpose holes spaced within .0008" of true position. The plate shown here fits 400mm round pallets.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Multipurpose Holes (Standard)

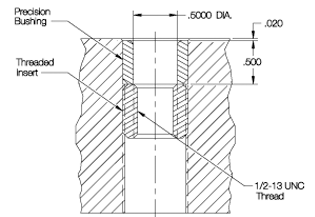

Each multipurpose hole on a Standard System MF40 tooling plate or block has a 1/2" ID bushing on top with a 1/2-13 threaded insert below it. Multipurpose holes are located in a precise 2.0000" grid pattern, spaced within ±.0008 inches of true position. Locating Screws, with a precision ground shoulder, are used to locate and fasten at the same time.

Mounting

Two Locating Keys are required to locate a Round Tooling Plate on a T-slotted table (order separately to fit specific machine). Mounting holes fit almost any USA or metric slot spacing. Fasten using socket-head cap screws and T Nuts (order separately). See Related Products below for mounting accessories.

Material

Body > Gray cast iron, ASTM class 40. Bushings > High-carbon steel, heat treated. Threaded inserts > Steel. Protection Plugs > Plastic.

Click here for detailed material and finish specifications.

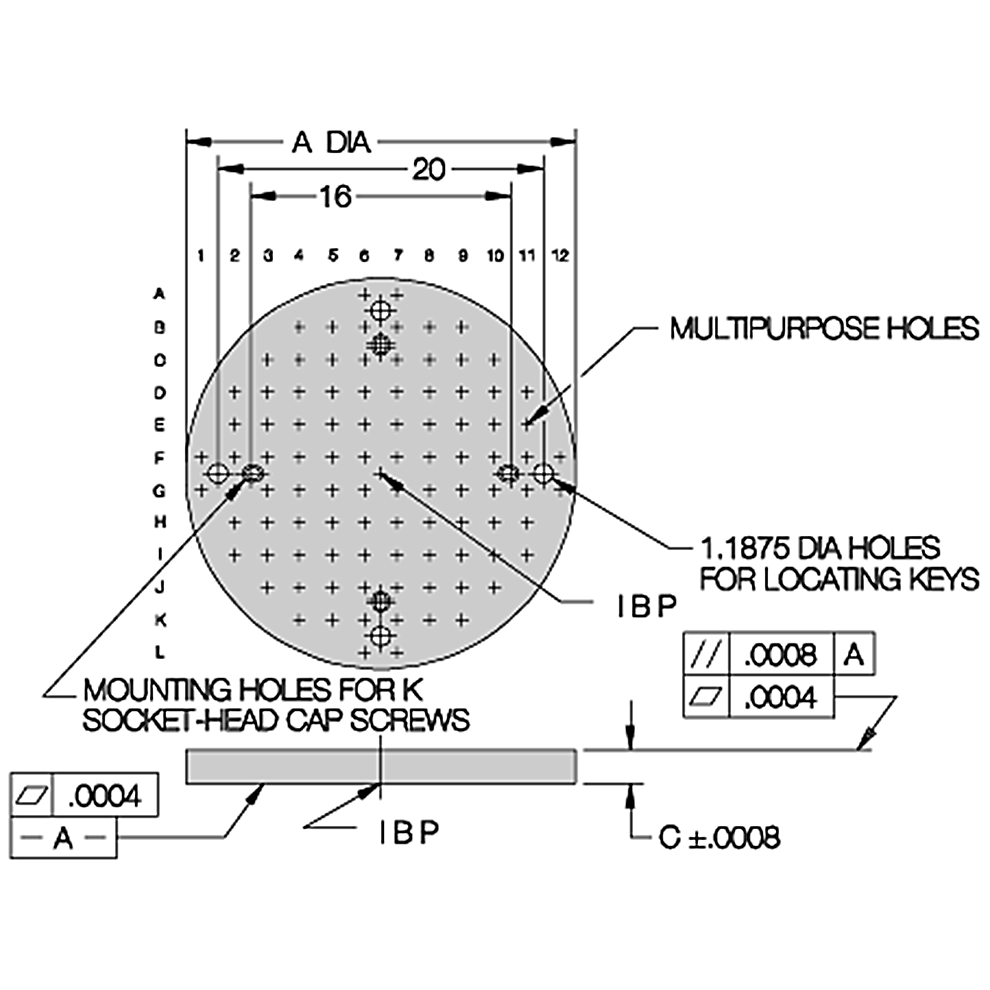

Round Tooling Plates – Standard (400mm)

QUANTITY	PART NO.	HOLE THREAD	HOLE ID	HOLE SPACING	HOLE PATTERN	A NOMINAL PLATE DIA	A ACTUAL PLATE DIA	C THICKNESS	K REQUIRED MOUNTING SCREWS	WEIGHT (lbs)
	CL-MF40-0311	1/2-13	.5000	2.0000	8 x 8	400mm	15.75	2.0000	(4) 1/2-13 or M12	92

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available
