Forged Adjustable Drill-Press Clamps

Product Information

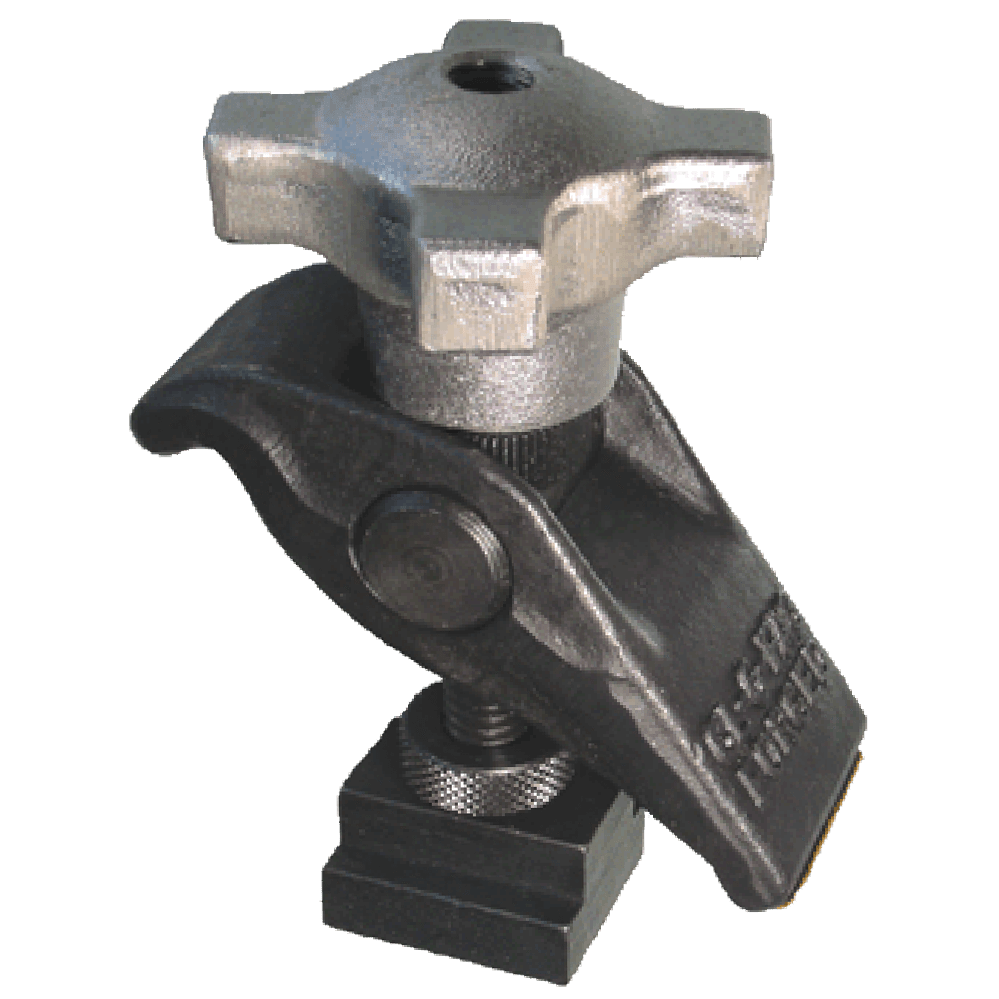

Handy hold-down clamp assembly that includes a Forged Adjustable Clamp, ideal for clamping on slotted drill-press tables and tapped drill-jig plates. This rugged forged steel pivot clamp provides instant height adjustment without blocks or shims. Removable brass heel protects machine table. Available with stud sizes 5/16-18, 3/8-16, and 1/2-13 (M8, M10, and M12 in metric).

Choose one of the six T-Nut sizes below to fit the drill-press table slot. Also available without a T Nut, for tapped jig plates.

3/8" and 10mm

7/16"

12mm

1/2"

9/16" and 14mm

5/8" and 16mm

Application Information

Material

ITEM	MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Clamp Body	Forged 1045 Steel	-	Black Oxide	✔	✔
Clamp Pivot	Mild Steel	-	Black Oxide	✔	✔
Removable Heel Pad	Brass	-	-	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Other assembly components > See catalog information for each specific item

Forged Adjustable Drill-Press Clamps

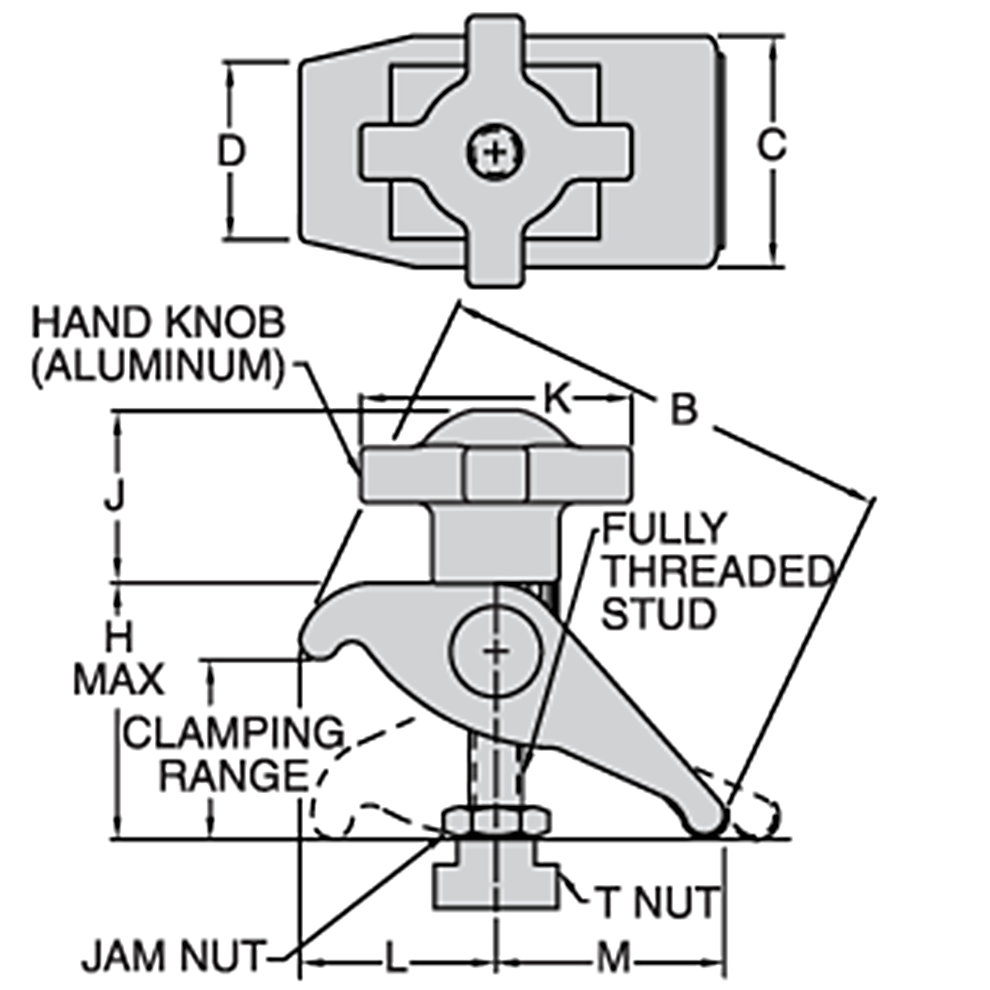

General Dimensions

STUD SIZE	CLAMPING RANGE	B	C	D	H	J	K	L MIN	L MAX	M MIN	M MAX
5/16 or M8	O to 1-3/4	3-1/4	1-1/4	7/8	2-1/8	1-3/8	2-1/8	1-1/16	1-1/4	1-3/4	2
3/8 or M10	O to 1-3/4	3-1/4	1-1/4	7/8	2-1/8	1-3/8	2-1/8	1-1/16	1-1/4	1-3/4	2
1/2 or M12	O to 2-1/16	4	1-5/8	1-1/8	2-5/8	1-5/8	2-1/2	1-3/8	1-9/16	2-1/8	2-7/16

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Complete Clamp Assembly (Inch)

PART NO.	STUD SIZE	TABLE SLOT SIZE	T NUT (INCLUDED)	FORGED ADJUSTABLE CLAMP (INCLUDED)	FULLY THREADED STUD (INCLUDED)	HAND KNOB (INCLUDED)	JAM NUT (INCLUDED)
CL-5-FACA-HKA	5/16-18	Tapped 5/16-18	None	CL-6-FAC	CL-5/16-18x3.00-FTS	CL-2-HK-4A	CL-5-JN
CL-5-FACA-HKA-19	5/16-18	3/8 or 10mm	CL-19-TN	CL-6-FAC	CL-5/16-18x3.00-FTS	CL-2-HK-4A	CL-5-JN
CL-5-FACA-HKA-20	5/16-18	7/16	CL-20-TN	CL-6-FAC	CL-5/16-18x3.00-FTS	CL-2-HK-4A	CL-5-JN
CL-5-FACA-HKA-21	5/16-18	1/2	CL-21-TN	CL-6-FAC	CL-5/16-18x3.00-FTS	CL-2-HK-4A	CL-5-JN
CL-6-FACA-HKA	3/8-16	Tapped 3/8-16	None	CL-6-FAC	CL-3/8-16x3.00-FTS	CL-3-HK-4A	CL-6-JN
CL-6-FACA-HKA-00	3/8-16	7/16	CL-00-TN	CL-6-FAC	CL-3/8-16x3.00-FTS	CL-3-HK-4A	CL-6-JN
CL-6-FACA-HKA-12	3/8-16	12mm	CL-12-TN	CL-6-FAC	CL-3/8-16x3.00-FTS	CL-3-HK-4A	CL-6-JN
CL-6-FACA-HKA-0	3/8-16	1/2	CL-0-TN	CL-6-FAC	CL-3/8-16x3.00-FTS	CL-3-HK-4A	CL-6-JN
CL-6-FACA-HKA-1	3/8-16	9/16 or 14mm	CL-1-TN	CL-6-FAC	CL-3/8-16x3.00-FTS	CL-3-HK-4A	CL-6-JN
CL-6-FACA-HKA-16	3/8-16	5/8 or 16mm	CL-16-TN	CL-6-FAC	CL-3/8-16x3.00-FTS	CL-3-HK-4A	CL-6-JN
CL-8-FACA-HKA	1/2-13	Tapped 1/2-13	None	CL-8-FAC	CL-1/2-13x4.00-FTS	CL-9-HK-9A	CL-8-JN
CL-8-FACA-HKA-9	1/2-13	9/16 or 14mm	CL-9-TN	CL-8-FAC	CL-1/2-13x4.00-FTS	CL-9-HK-9A	CL-8-JN
CL-8-FACA-HKA-2	1/2-13	5/8 or 16mm	CL-2-TN	CL-8-FAC	CL-1/2-13x4.00-FTS	CL-9-HK-9A	CL-8-JN
CL-8-FACA-HKA-3	1/2-13	11/16 or 18mm	CL-3-TN	CL-8-FAC	CL-1/2-13x4.00-FTS	CL-9-HK-9A	CL-8-JN
CL-8-FACA-HKA-17	1/2-13	3/4	CL-17-TN	CL-8-FAC	CL-1/2-13x4.00-FTS	CL-9-HK-9A	CL-8-JN

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Complete Clamp Assembly (Metric)

PART NO.	STUD SIZE	THREAD PITCH (mm)	TABLE SLOT SIZE	T NUT (INCLUDED)	FORGED ADJUSTABLE CLAMP (INCLUDED)	FULLY THREADED STUD (INCLUDED)	HAND KNOB (INCLUDED)	JAM NUT (INCLUDED)
CLM-5-FACA-HKA	M8	1.25	Tapped M8	None	CL-6-FAC	CLM-8x80-FTS	CLM-2-HK-4A	CLM-8-JN
CLM-5-FACA-HKA-19	M8	1.25	3/8" or 10mm	CLM-19-TN	CL-6-FAC	CLM-8x80-FTS	CLM-2-HK-4A	CLM-8-JN
CLM-6-FACA-HKA	M10	1.5	Tapped M10	None	CL-6-FAC	CLM-10x80-FTS	CLM-3-HK-4A	CLM-10-JN
CLM-6-FACA-HKA-00	M10	1.5	12mm	CLM-00-TN	CL-6-FAC	CLM-10x80-FTS	CLM-3-HK-4A	CLM-10-JN
CLM-6-FACA-HKA-0	M10	1.5	1/2"	CLM-0-TN	CL-6-FAC	CLM-10x80-FTS	CLM-3-HK-4A	CLM-10-JN
CLM-6-FACA-HKA-1	M10	1.5	9/16" or 14mm	CLM-1-TN	CL-6-FAC	CLM-10x80-FTS	CLM-3-HK-4A	CLM-10-JN
CLM-8-FACA-HKA	M12	1.75	Tapped M12	None	CL-8-FAC	CLM-12x110-FTS	CLM-9-HK-9A	CLM-12-JN
CLM-8-FACA-HKA-9	M12	1.75	9/16" or 14mm	CLM-9-TN	CL-8-FAC	CLM-12x110-FTS	CLM-9-HK-9A	CLM-12-JN
CLM-8-FACA-HKA-2	M12	1.75	5/8" or 16mm	CLM-2-TN	CL-8-FAC	CLM-12x110-FTS	CLM-9-HK-9A	CLM-12-JN
CLM-8-FACA-HKA-3	M12	1.75	11/16" or 18mm	CLM-3-TN	CL-8-FAC	CLM-12x110-FTS	CLM-9-HK-9A	CLM-12-JN
