Rectangular Tooling Plates – Modular, Standard 1/2" (20" x 24") * Model
CL-MF40-0112 Part

Rectangular Tooling Plates – Modular, Standard 1/2" (20" x 24") *

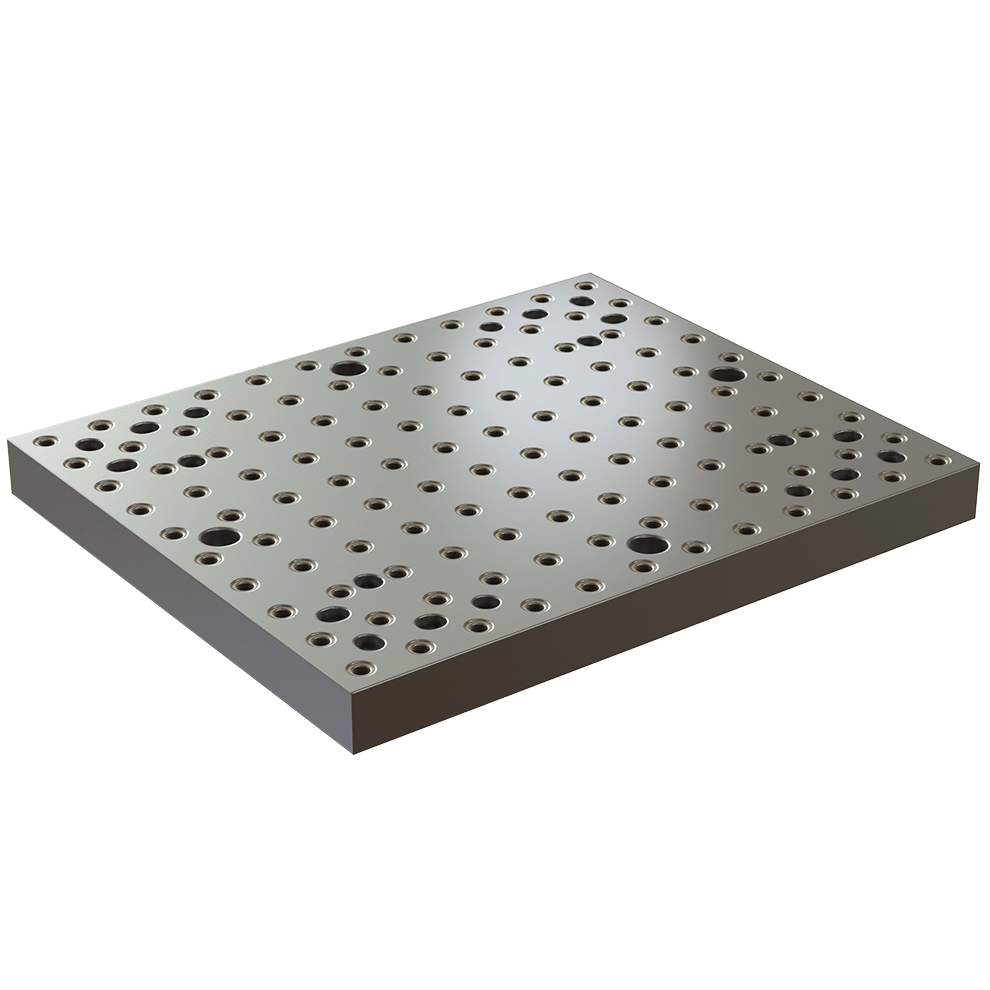

Three Dimensional (3D) View
View Large Image

Carr Lane

https://www.carrlane.com/Default.aspx?TabId=50440&partid=56852&language=en-US

CL-MF40-0112 CL-MF40-0112 • Rectangular Tooling Plates – Modular, Standard 1/2" (20" x 24") *

Product Information

Application Information

Multipurpose Holes (Standard)

Mounting

Material

Place Order

Save to My Project

What is this?

Pricing & Availability

This part number seems to be incorrect. Please double-check the part number you entered, update accordingly and then click “Add to Pricing & Availability” to continue. If the part number you entered appears to be correct, yet you are still seeing an "Invalid status", please call Carr Lane Manufacturing Customer Service at 314-647-6200 for further assistance.

Status

Part Number

Quantity

Description RECTANGULAR TOOLING PLATE

Price
$0.00

Total
$0.00

Update
Add to Pricing & Availability

Status Legend:

Available
Available Assembly
Made to Order
Partially Available
Back Ordered
!
Invalid

Part Specifications

Part Number	HOLE THREAD	HOLE ID	HOLE SPACING	HOLE PATTERN	A NOMINAL WIDTH	A ACTUAL WIDTH	B NOMINAL LENGTH	B ACTUAL LENGTH	C THICKNESS	K REQUIRED MOUNTING SCREWS	WEIGHT (lbs)
CL-MF40-0112	1/2-13	.5000	2.0000	10 x 12	20	19.875	24	23.875	2.0000	(4) 1/2-13 or M12	220
