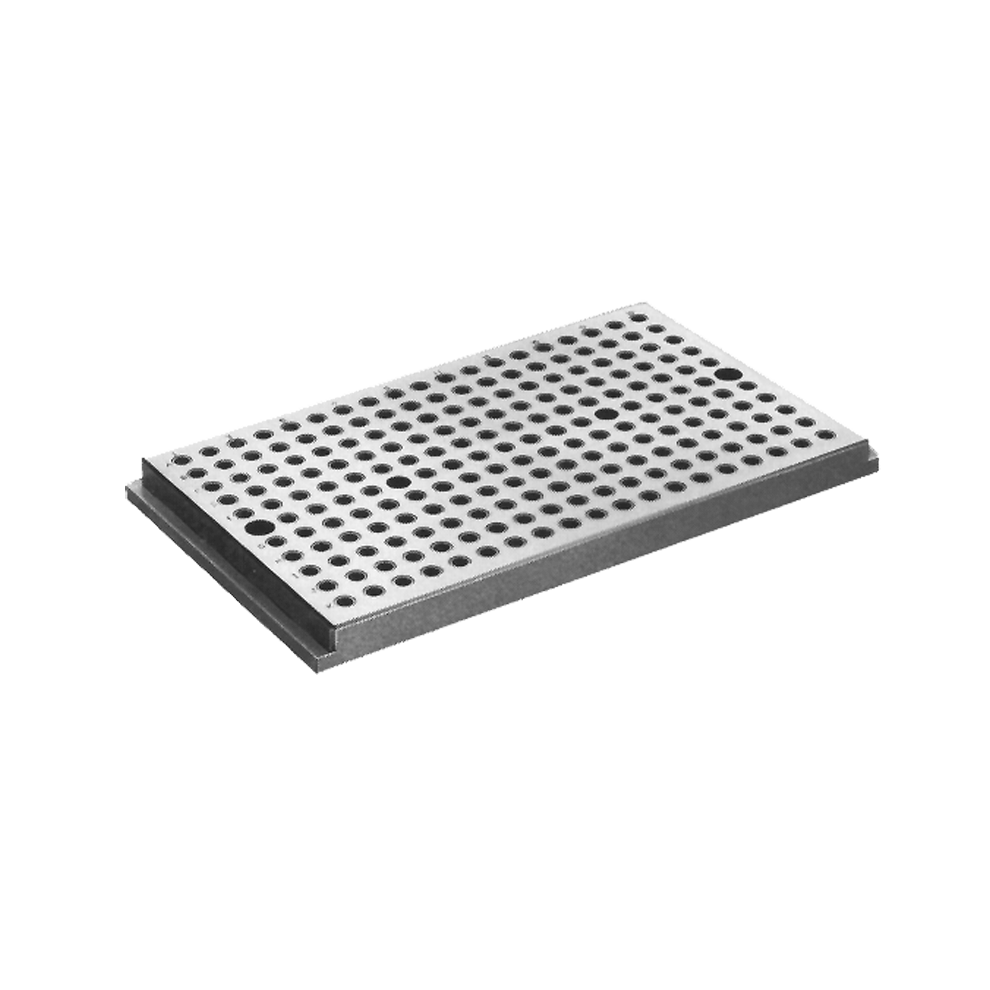

Rectangular Tooling Plates – Mini (12" x 20")
Three Dimensional (3D) View
View Large Image
Carr Lane

CL-MF25-0151  •  Rectangular Tooling Plates – Mini (12" x 20")

Pricing & Availability

RECTANGULAR TOOLING PLATE


Status Legend:
  • !

Part Specifications

Part NumberHOLE
THREAD
HOLE
ID
HOLE
SPACING
HOLE
PATTERN
A
NOMINAL
WIDTH
A
ACTUAL
WIDTH
B
NOMINAL
LENGTH
B
ACTUAL
LENGTH
C
THICKNESS
K
REQUIRED
MOUNTING
SCREWS
WEIGHT
(lbs)
CL-MF25-01515/16-18.5000"1.000011 x 191211.8752019.7501.3750(2) 3/8-16 or M1079

Oops! We can’t seem to find this drawing in our database. Please email [email protected] with the item number and file type you require.
