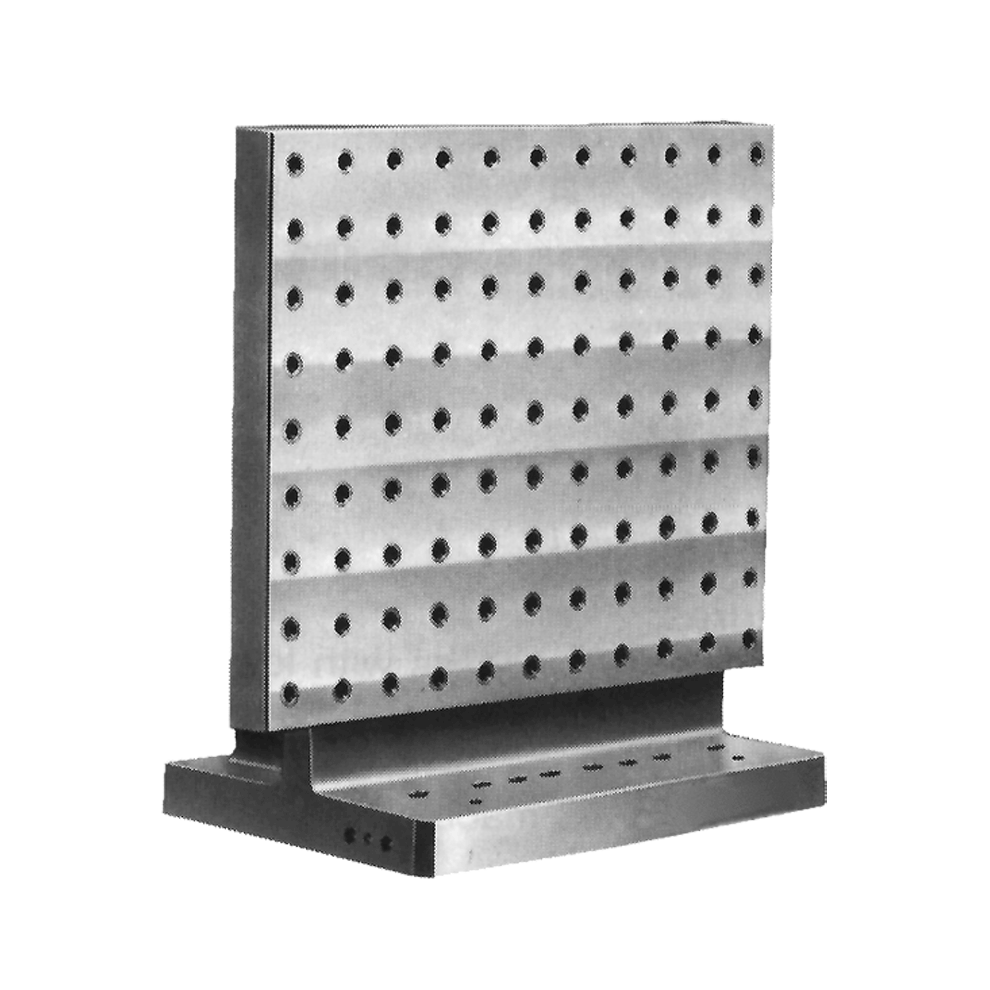

Angle Tooling Plates – Standard (630mm) Model
CL-MF40-0453 Part

Three Dimensional (3D) View
View Large Image

Carr Lane

https://www.carrlane.com/Default.aspx?TabId=50440&partid=56790&language=en-US

CL-MF40-0453 CL-MF40-0453 • Angle Tooling Plates – Standard (630mm)

Product Information

Application Information

Multipurpose Holes (Standard)

Mounting

Material

Place Order

Save to My Project

What is this?

Pricing & Availability

This part number seems to be incorrect. Please double-check the part number you entered, update accordingly and then click “Add to Pricing & Availability” to continue. If the part number you entered appears to be correct, yet you are still seeing an "Invalid status", please call Carr Lane Manufacturing Customer Service at 314-647-6200 for further assistance.

Status

Part Number

Quantity

Description ANGLE TOOLING PLATE

Price
$0.00

Total
$0.00

Update
Add to Pricing & Availability

Status Legend:

Available
Available Assembly
Made to Order
Partially Available
Back Ordered
!
Invalid

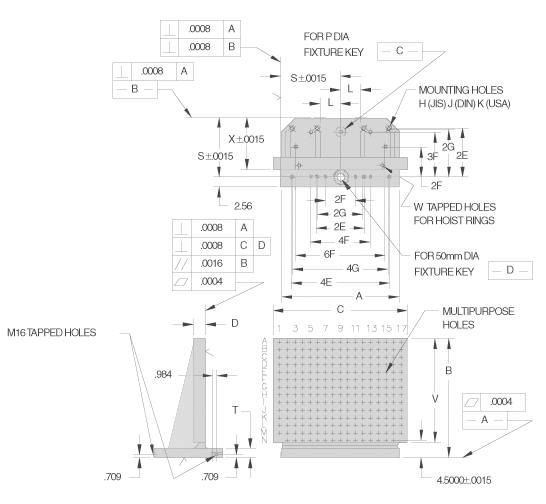

Part Specifications

Part Number	HOLE THREAD	HOLE ID	HOLE SPACING	HOLE PATTERN	A NOMINAL	A ACTUAL	B	C	D	E (JIS)	F (DIN)	G (USA)	H (JIS)	J (DIN)	K (USA)	L	P DIA	S	T	V	W	X	WEIGHT (lbs)
CL-MF40-0453	1/2-13	.5000	2.0000	15 x 12	630mm	24.25	27.56	29.92	2.95	125mm	100mm	5.000	M16	M16	5/8-11 or M16	3.937	25mm	12.4016	2.17	23.60	3/4-10	10.4331	665
