Square Pallet Tooling Plates – Standard (500mm) Model
CL-MF40-0802 Part

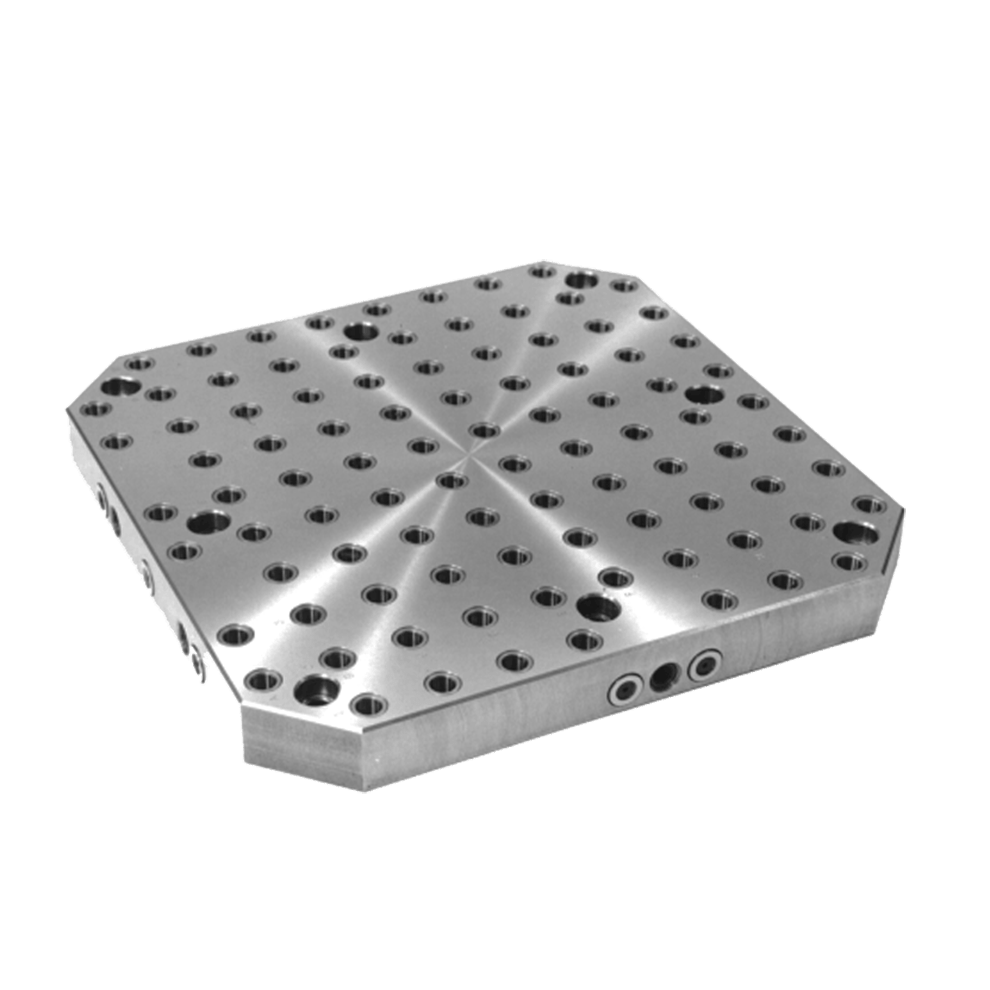

Square Pallet Tooling Plates – Standard (500mm)

Three Dimensional (3D) View
View Large Image

Carr Lane

https://www.carrlane.com/Default.aspx?TabId=50440&partid=56776&language=en-US

CL-MF40-0802 CL-MF40-0802 • Square Pallet Tooling Plates – Standard (500mm)

Product Information

Multipurpose Holes (Standard)

Mounting

Material

Place Order

Save to My Project

What is this?

Pricing & Availability

This part number seems to be incorrect. Please double-check the part number you entered, update accordingly and then click “Add to Pricing & Availability” to continue. If the part number you entered appears to be correct, yet you are still seeing an "Invalid status", please call Carr Lane Manufacturing Customer Service at 314-647-6200 for further assistance.

Status

Part Number

Quantity

Description SQUARE PALLET TOOLING PLATE

Price
$0.00

Total
$0.00

Update
Add to Pricing & Availability

Status Legend:

Available
Available Assembly
Made to Order
Partially Available
Back Ordered
!
Invalid

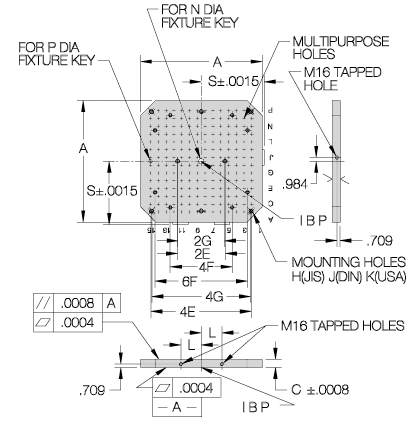

Part Specifications

Part Number	HOLE THREAD	HOLE ID	HOLE SPACING	HOLE PATTERN	A NOMINAL	A ACTUAL	C	E (JIS)	F (DIN)	G (USA)	H (JIS)	J (DIN)	K (USA)	L	N DIA	P DIA	S	WEIGHT (lbs)
CL-MF40-0802	1/2-13	.5000	2.0000	10 x 10	500mm	19.13	2.0000	100mm	100mm	4.000	M16	M12	5/8-11 or M16	2.953	30mm	20mm	9.8425	180
